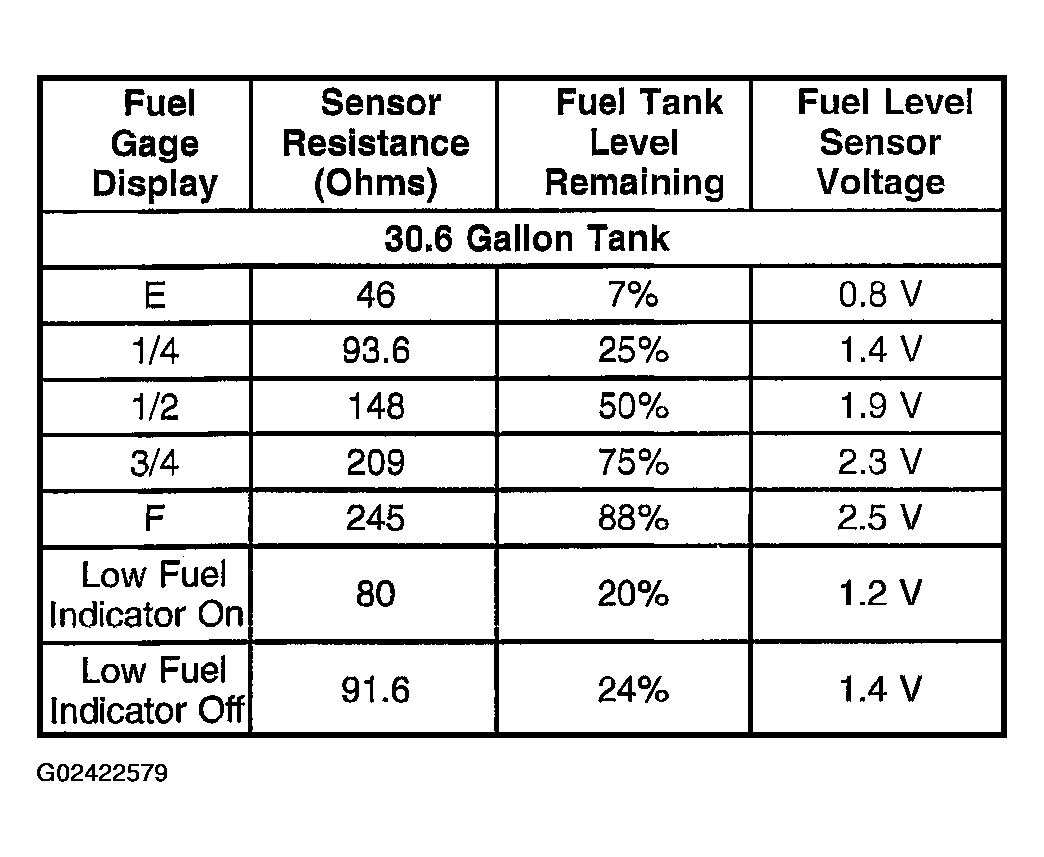

Fuel Level Specifications
Important: The values in the table are approximate values based on information obtained from properly operating vehicles. Actual results may vary slightly.
The resistance values for the dual fuel tanks only reflect the specified fuel level when the signal circuits for both the primary and secondary fuel tanks are connected to each other.
