Removal Procedure

  1. Remove the drivers side knee bolster. Refer to Knee Bolster Bracket Replacement - Left .
  2. Disconnect the multi-function audio alarm module (2) electrical connector (1).
  3. Remove the multi-function audio alarm module (2) from the vehicle.

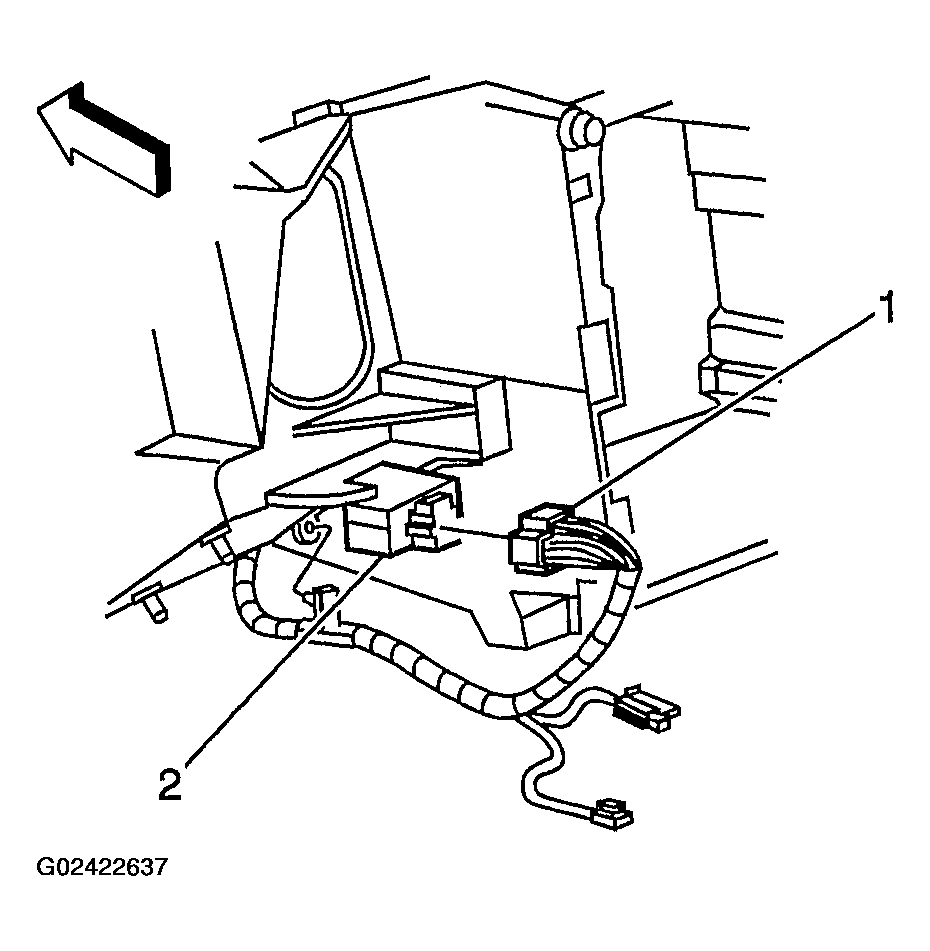

    Fig 1: Removing Multi-Function Audio Alarm Module
    G02422637Courtesy of GENERAL MOTORS CORP.
