Connector C005 Connector End View
Connector C005 Connector End View

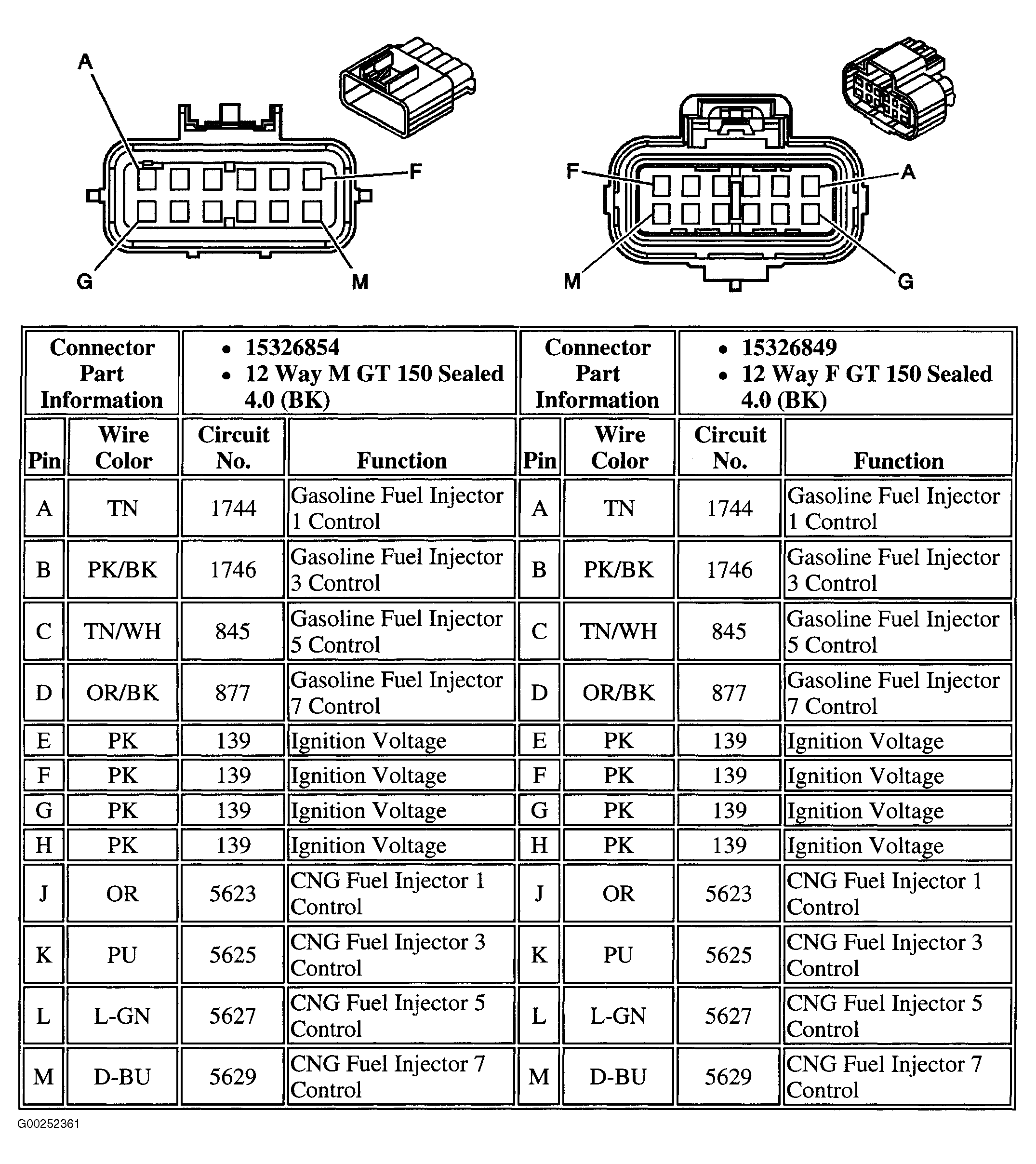

Fig 1: Connector C005 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
