Blower Motor Resistor Assembly Connector End View

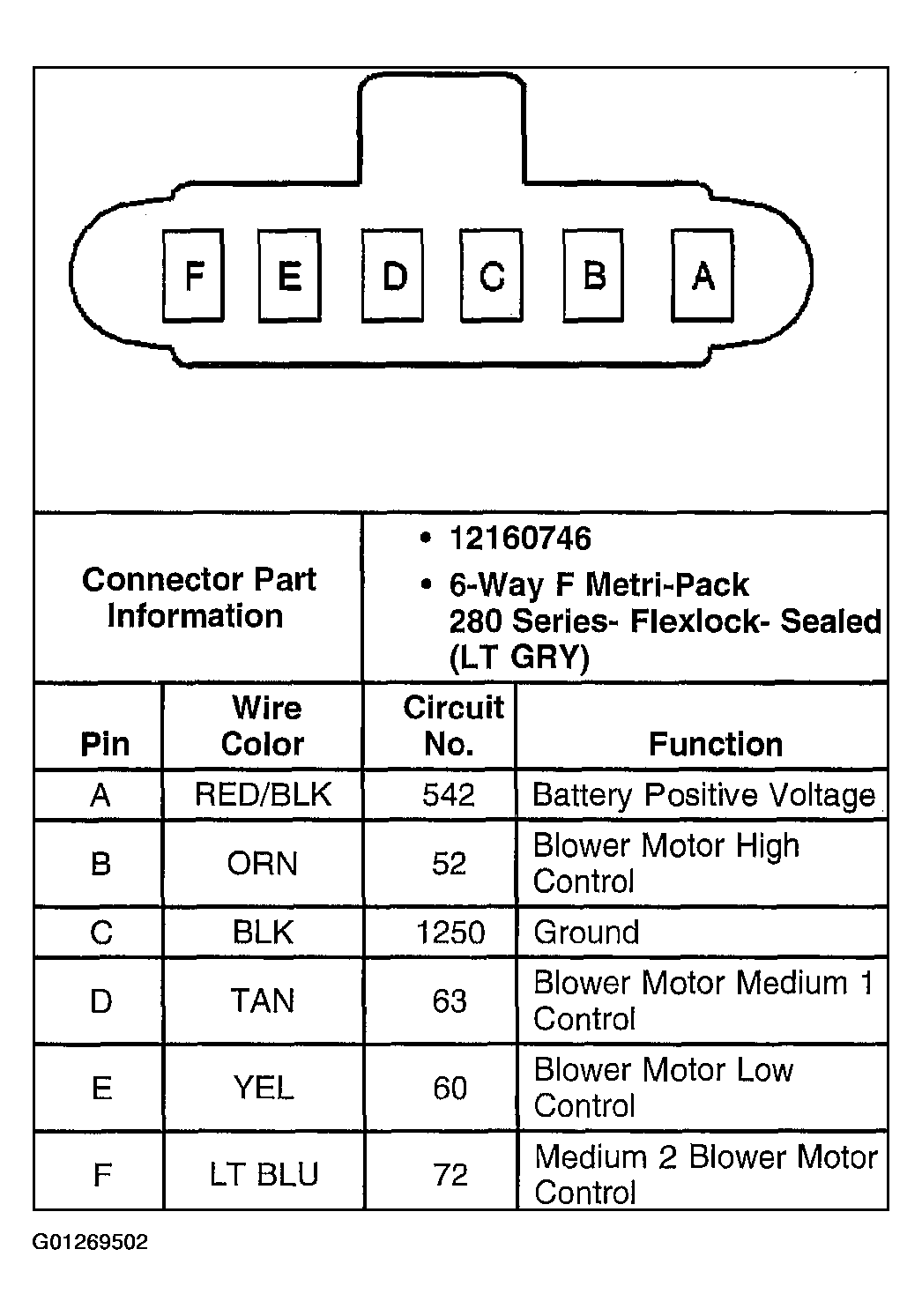

Fig 1: Blower Motor Resistor Assembly Connector End View

G01269502

Courtesy of GENERAL MOTORS CORP.
