Removal Procedure
- In order to remove the engine ground strap the battery negative cable is removed from the engine. Some of the vehicle information may get discarded when the battery negative cable is removed. Refer to RADIO/AUDIO SYSTEM DESCRIPTION AND OPERATION
for the information that may have to be reset. The battery negative cable does not require disconnection at the battery.
- Raise the vehicle.

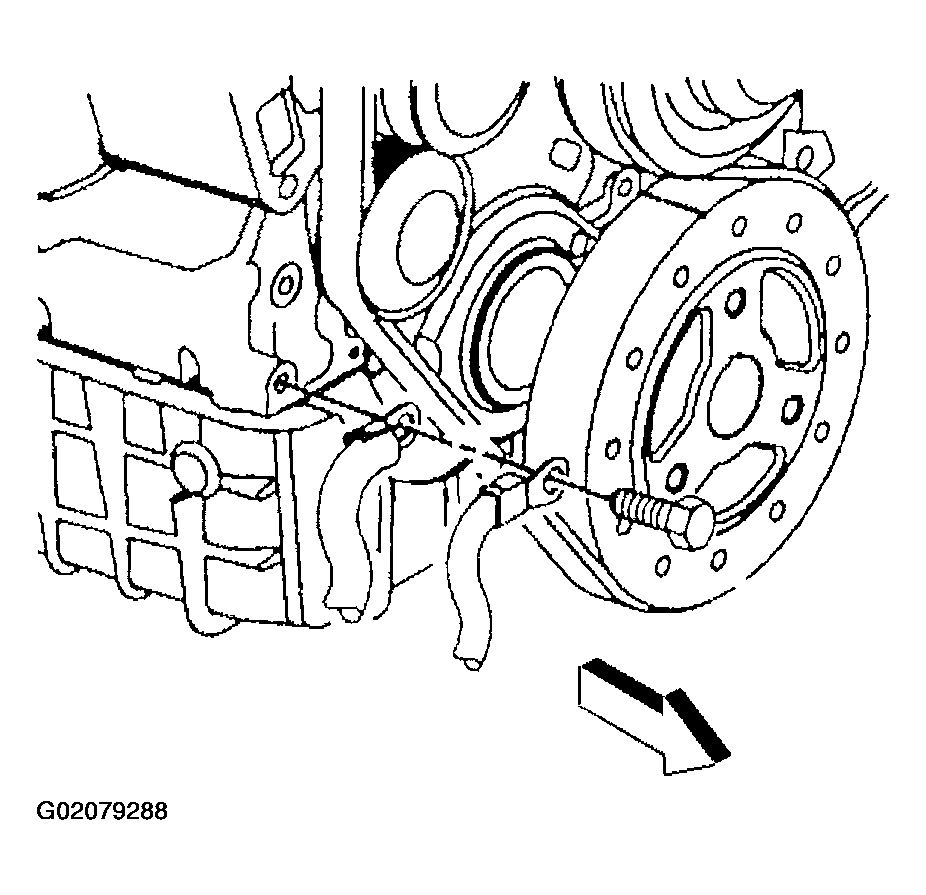

- Remove the bolt retaining the battery negative cable and the ground strap to the engine.
Courtesy of GENERAL MOTORS CORP.

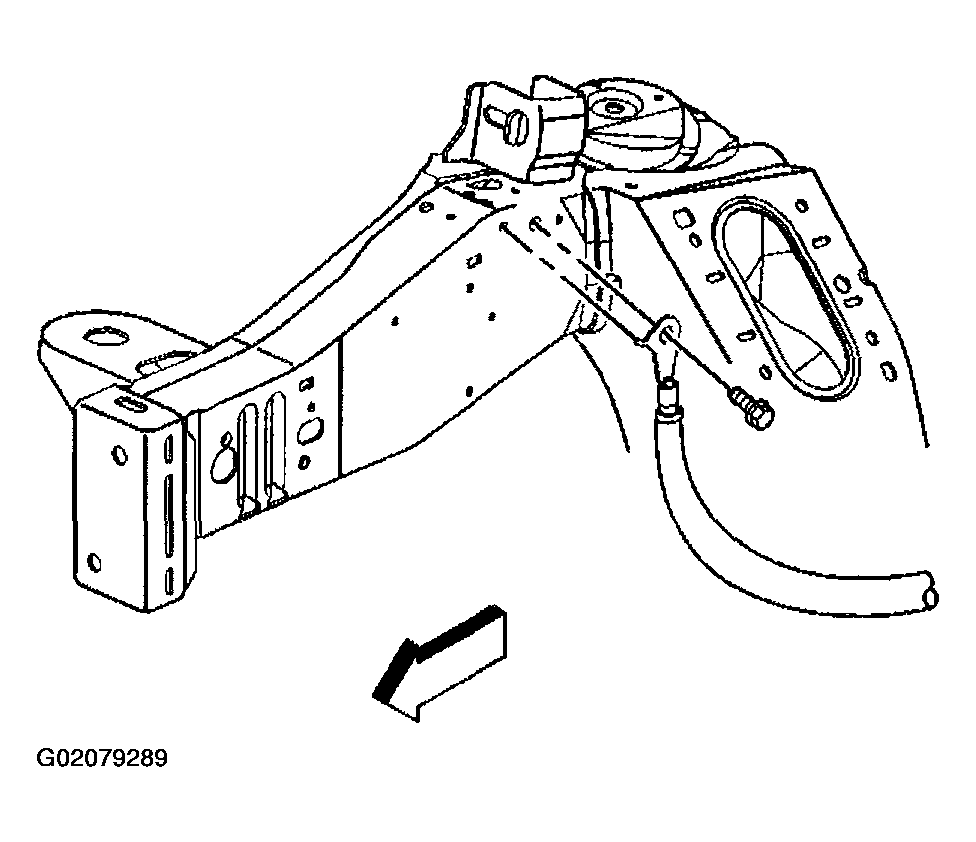

- Remove the bolt retaining the ground strap to the frame.
- Remove the ground strap.
Courtesy of GENERAL MOTORS CORP.
