Removal Procedure

  1. Remove the rear door trim panel.
  2. Use safety glasses and gloves.
  3. Remove the screws (1) that retain the latch to the door.
  4. Remove the screws that retain the hinge (3) to the door.
  5. Remove the window assembly from the vehicle.

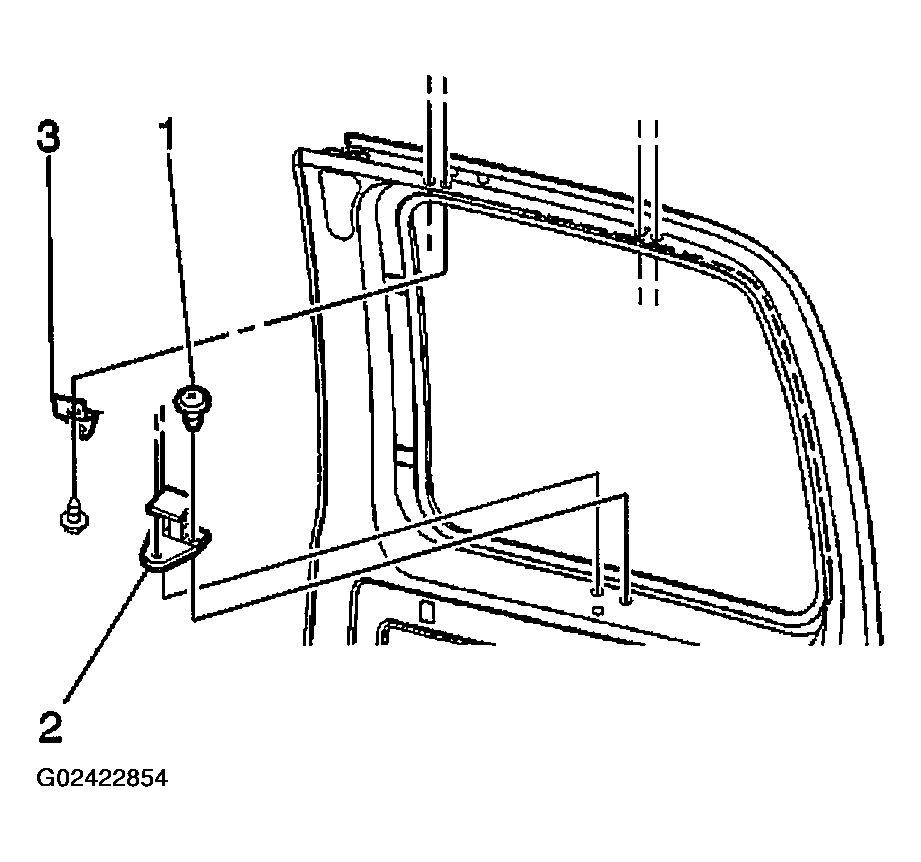

    Fig 1: Removing Hinged Rear Window
    G02422854Courtesy of GENERAL MOTORS CORP.
