Installation Procedure

  1. Install the window assembly to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the screws that retain the hinge (3) to the door.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  3. Install the screws (1) that retain the latch to the door.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  4. Install the rear door trim panel.

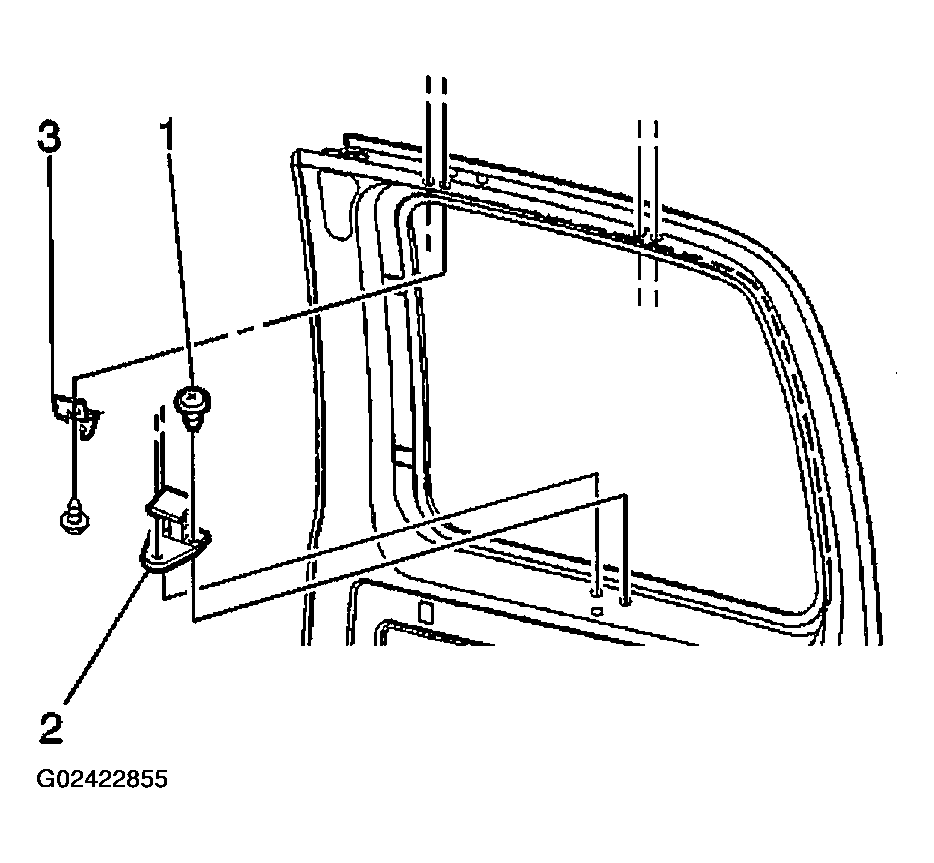

    Fig 1: Installing Hinged Rear Window
    G02422855Courtesy of GENERAL MOTORS CORP.
