Removal Procedure

The latched side window is a 1 piece assembly that includes the following components;

• The window
• The hinges
• The latch assembly

1. Use safety glasses and gloves.
2. Remove the screws that retain the latch to the vehicle.
3. Remove the nuts (3) that retain the hinge to the vehicle.
4. Remove the window assembly from the vehicle.

   Do not replace the weatherstrip (2) unless the weatherstrip is damaged.

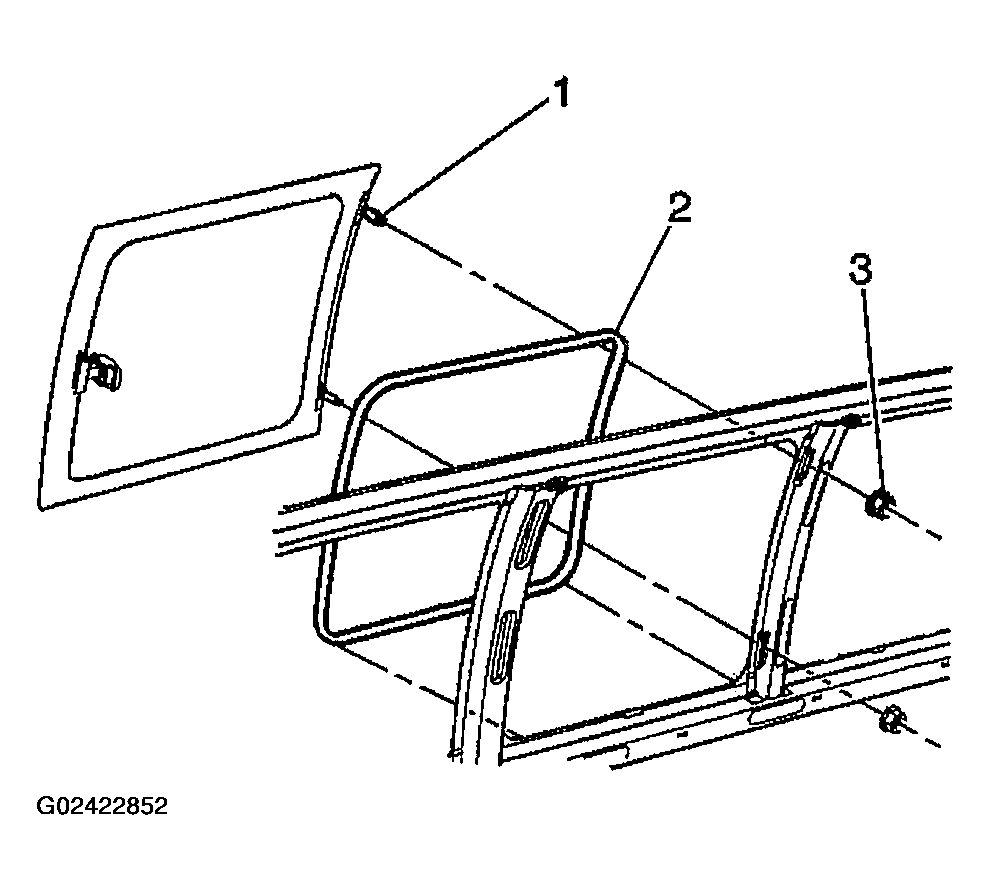

   Fig 1: Removing Hinged Body Side Window

   Courtesy of GENERAL MOTORS CORP.
