Removal Procedure

  1. Remove the front grille from the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
  2. Disconnect the electrical connector from the air temperature sensor.
  3. Remove the push pin retainer (1) from the air temperature sensor bracket (2).

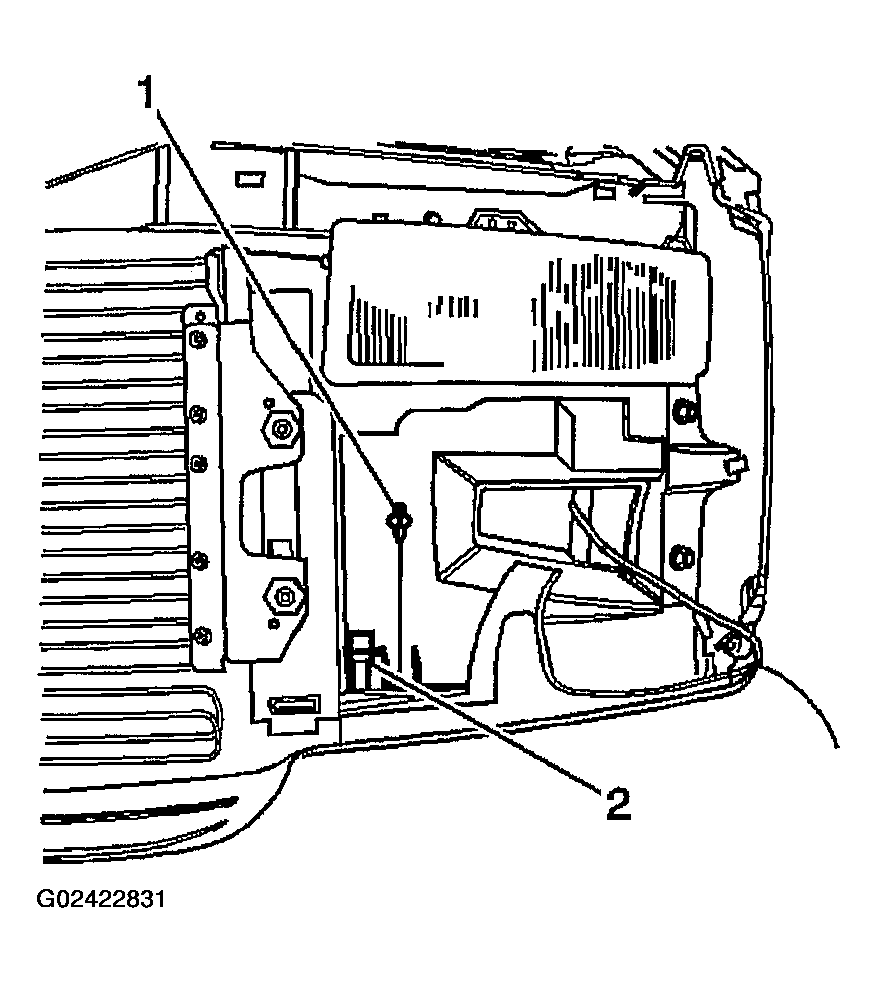

    Fig 1: Removing Ambient Temperature Sensor
    G02422831Courtesy of GENERAL MOTORS CORP.
