Installation Procedure

  1. Install the push pin retainer (1) into the air temperature sensor bracket (2).
  2. Connect the electrical connector to the air temperature sensor.
  3. Install the front grille to the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .

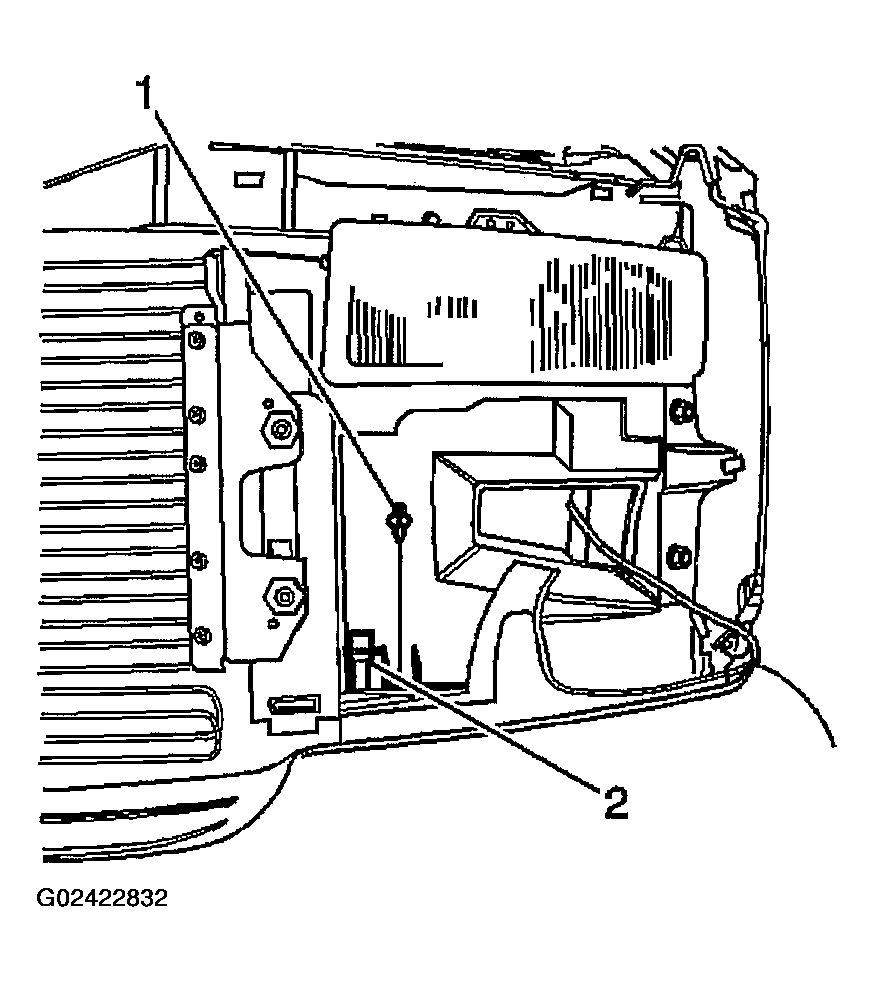

    Fig 1: Installing Ambient Air Temperature Sensor
    G02422832Courtesy of GENERAL MOTORS CORP.
