Removal Procedure

  1. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  2. Remove the nut that retains the sliding door stop to the body.
  3. Remove the sliding door stop from the vehicle.

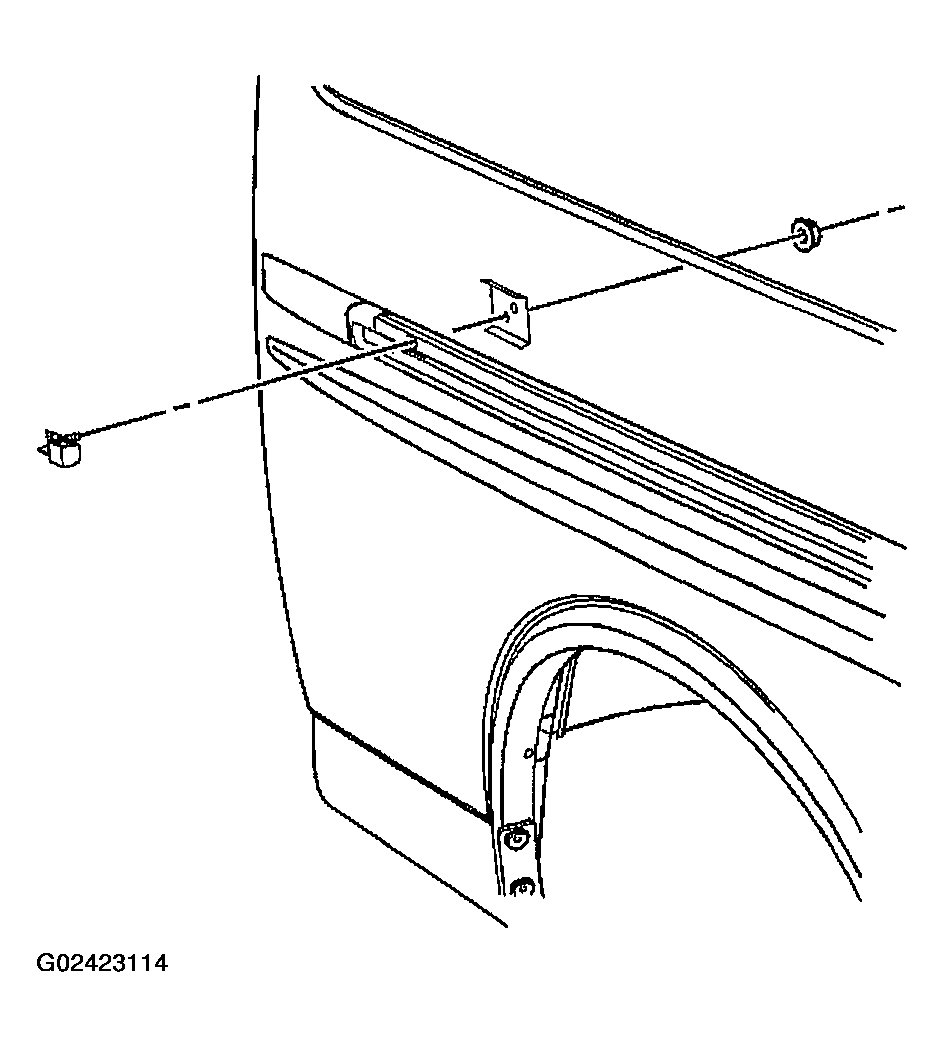

    Fig 1: Removing Sliding Door Stop
    G02423114Courtesy of GENERAL MOTORS CORP.
