Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the electrical connector from the power window motor (2).
  4. Remove the nuts (3) that retain the power window motor (2) to the front door module (1).
  5. Remove the power window motor (2) from the vehicle.

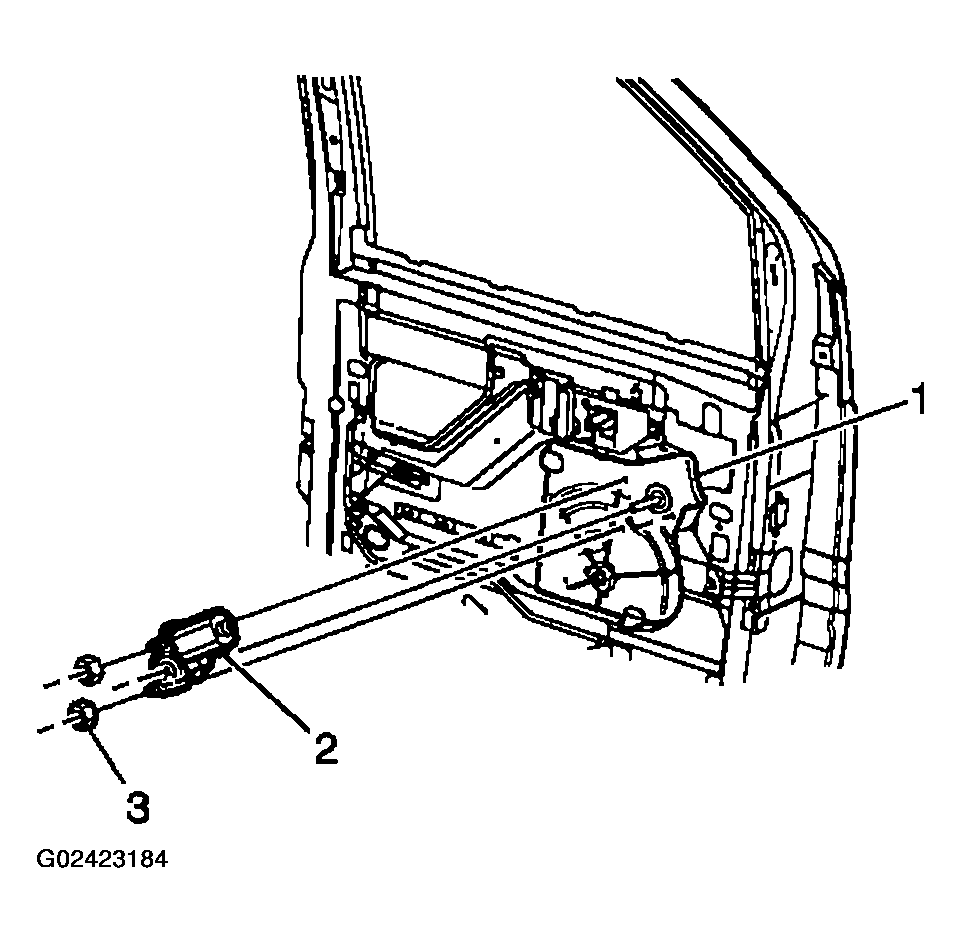

    Fig 1: Removing Power Window Motor
    G02423184Courtesy of GENERAL MOTORS CORP.
