Removal Procedure
WARNING:
When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

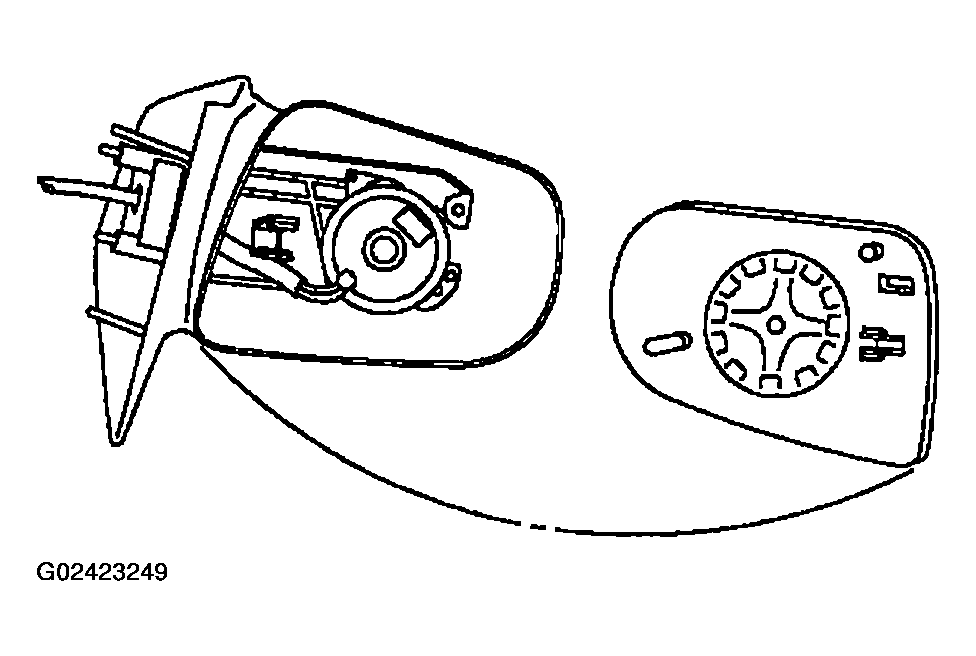

- Remove the damaged mirror back and the glass-assembly from the mirror housing by completing the following steps:
- 1.1. Insert your fingers as far as possible behind the mirror back toward the center of the back.
- 1.2. With force sufficient in order to disengage the snap-fits from the adjuster mechanism, pull the mirror back out of the housing.
- Inspect the adjuster mechanism for damage.
- If the mirror has the heated feature, unplug the 2 electrical connections from the mirror back.
- Remove the mirror face from the mirror housing.
