Removal Procedure

Important:  The door ajar switch is contained within the lock. Therefore, removal of the lock will include the removal of the door ajar switch.

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door . .
3. Remove the rear run channel from the door. Refer to Window Run Channel Replacement .
4. Remove the lock rods from the lock.
5. Disconnect the electrical connectors from the lock (1).
6. Remove the lock rod guide from the door lock (1).
7. Remove the bolts that retain the lock (1) to the door.
8. Remove the lock (1) from the door.

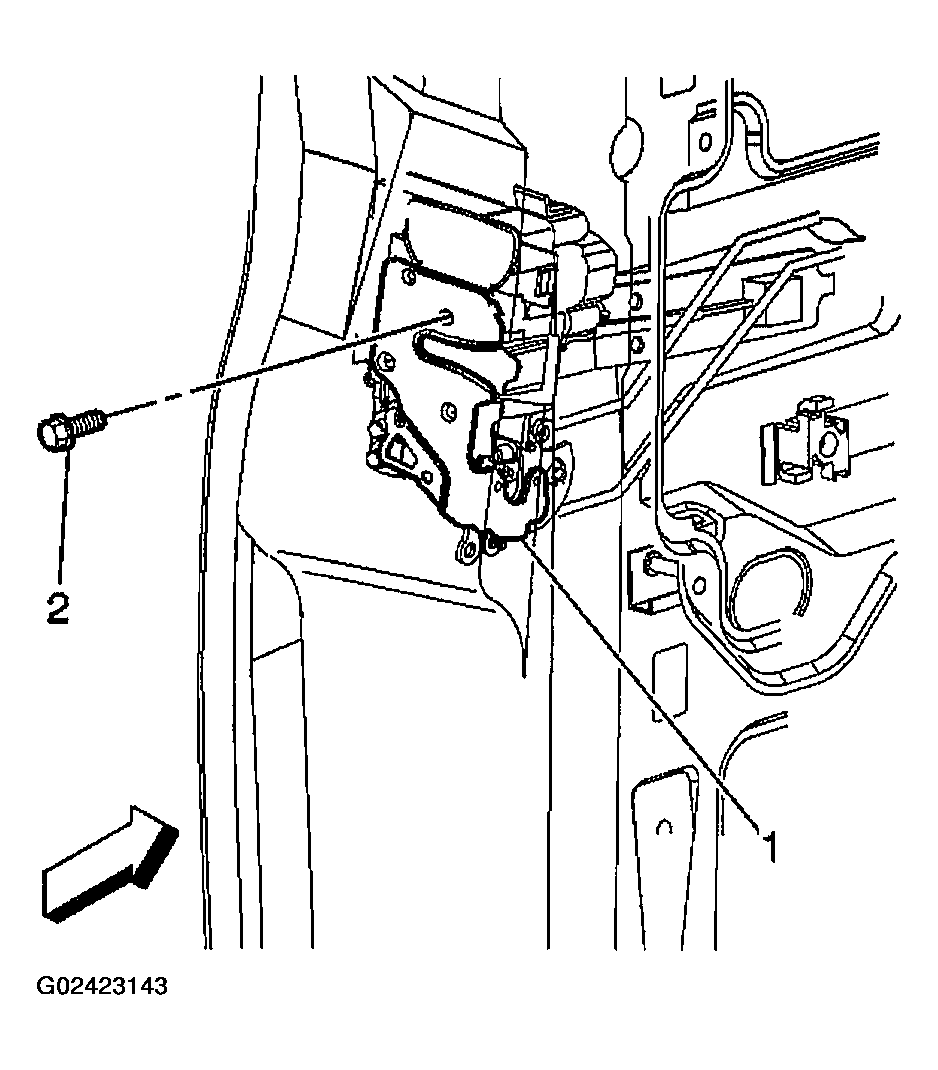

Fig 1: Removing Front Door Lock
Courtesy of GENERAL MOTORS CORP.
