Installation Procedure

  1. Position the front seat riser into the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the nuts in order to retain the seat riser to the vehicle.

    Tighten

    Tighten the nuts to 60 N.m (44 lb ft).

  3. Position the front seat assembly to the seat riser.
  4. Install the seat adjuster nuts (2).
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the nuts (2) in order to retain the seat adjuster (1) to the seat riser (3).

    Tighten

    Tighten the nuts (2) to 45 N.m (33 lb ft).

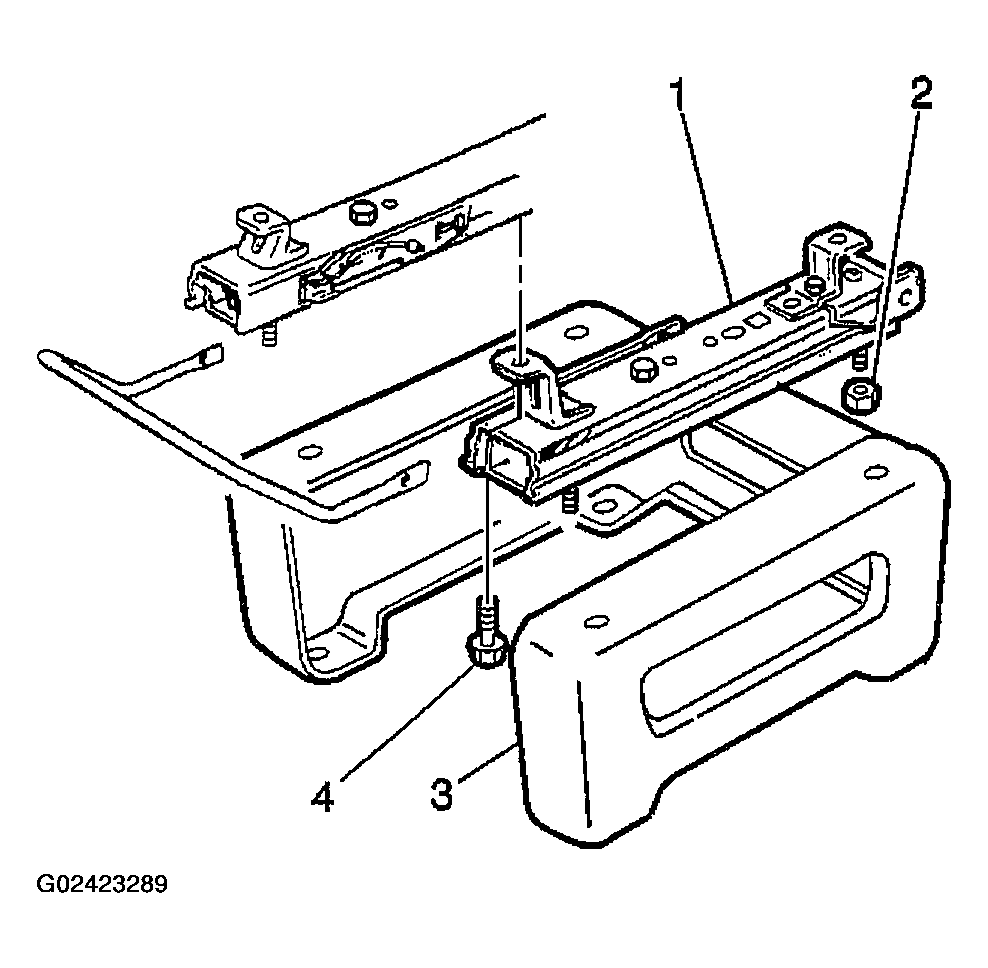

    6. Fig 1: Installing Seat Riser
    G02423289Courtesy of GENERAL MOTORS CORP.
  6. Install the front seat assembly to the vehicle. Refer to Seat Replacement .
