Installation Procedure

  1. Position the seat back frame to the seat assembly.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2,8) to the recliners on the right and left side.

    Tighten

    Tighten the bolts (2,8) to 32 N.m (24 lb in).

  3. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  4. Install the seat in the vehicle. Refer to Seat Replacement .

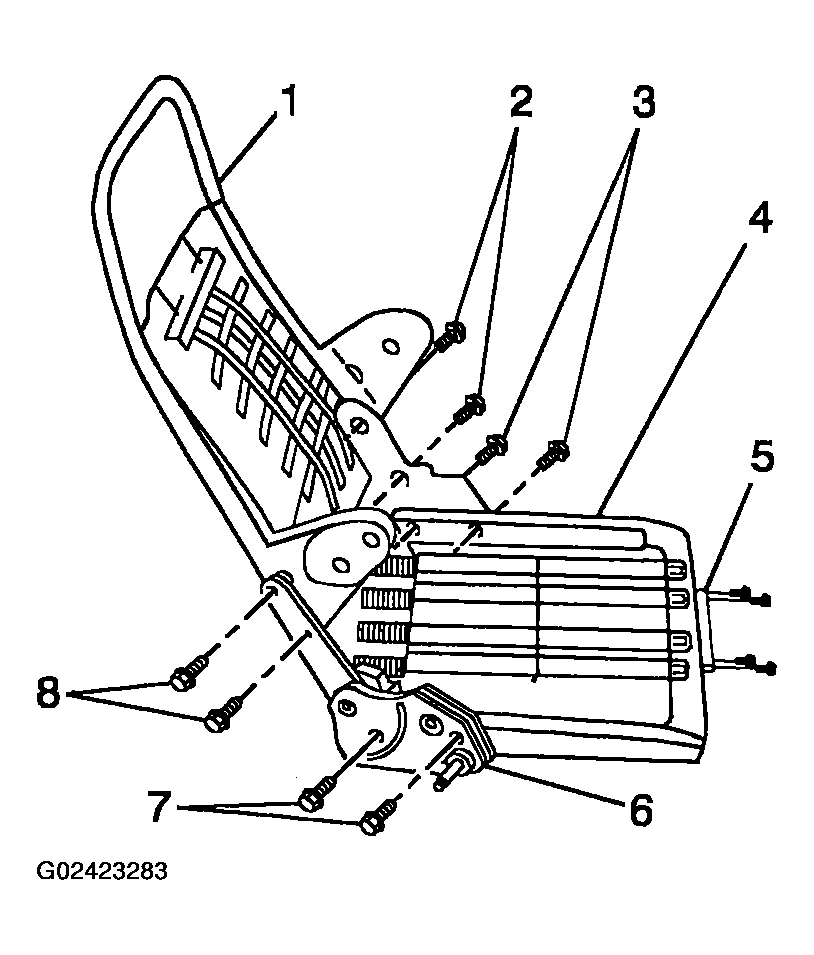

    Fig 1: Installing Front Seat Back Frame
    G02423283Courtesy of GENERAL MOTORS CORP.
