Vehicle Communication Interface Module (VCIM) Connector End View - C1 (1 Of 2)

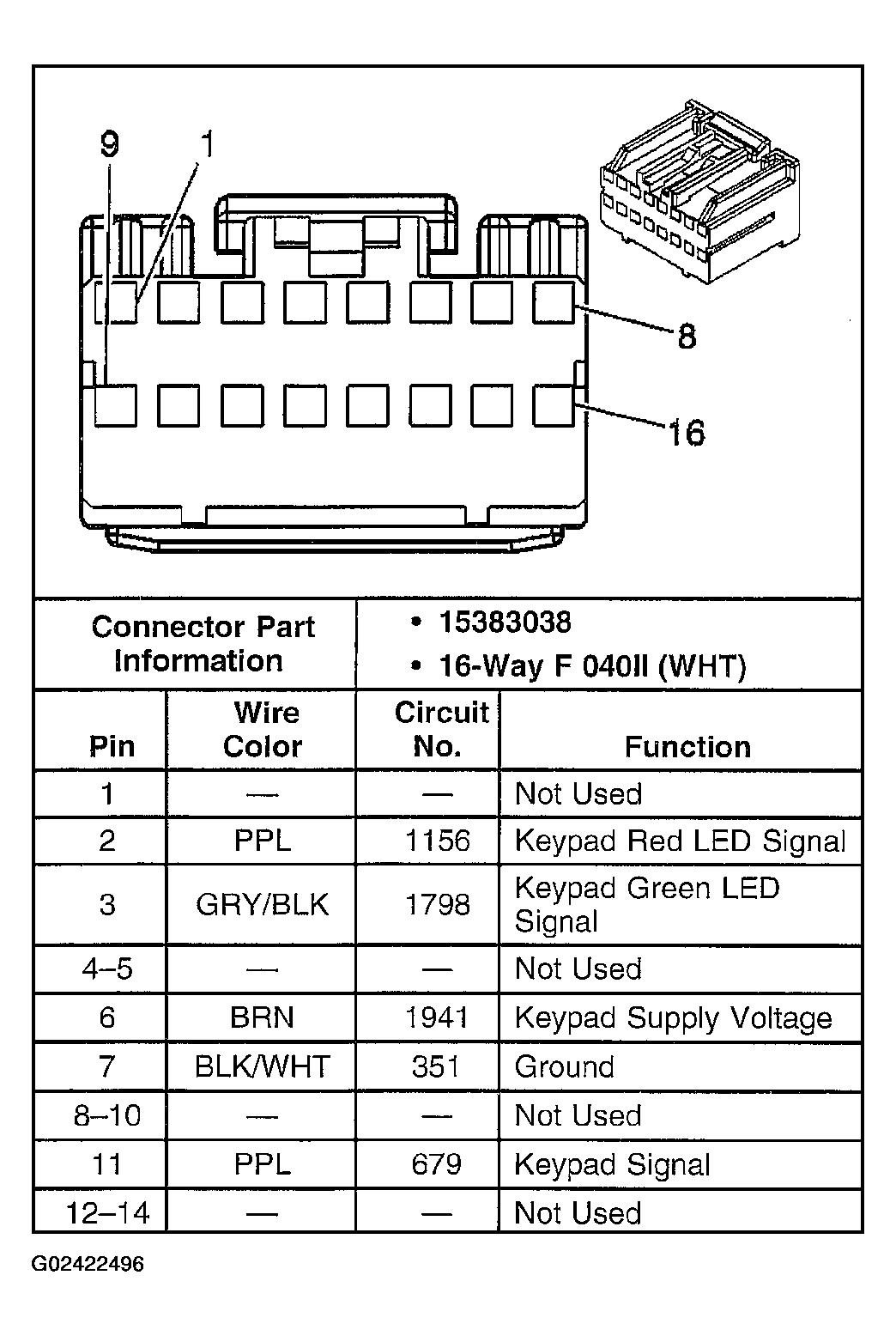

Fig 1: Vehicle Communication Interface Module (VCIM) Connector End View - C1 (1 Of 2)
G02422496Courtesy of GENERAL MOTORS CORP.
