Ignition Control Module Connector End View

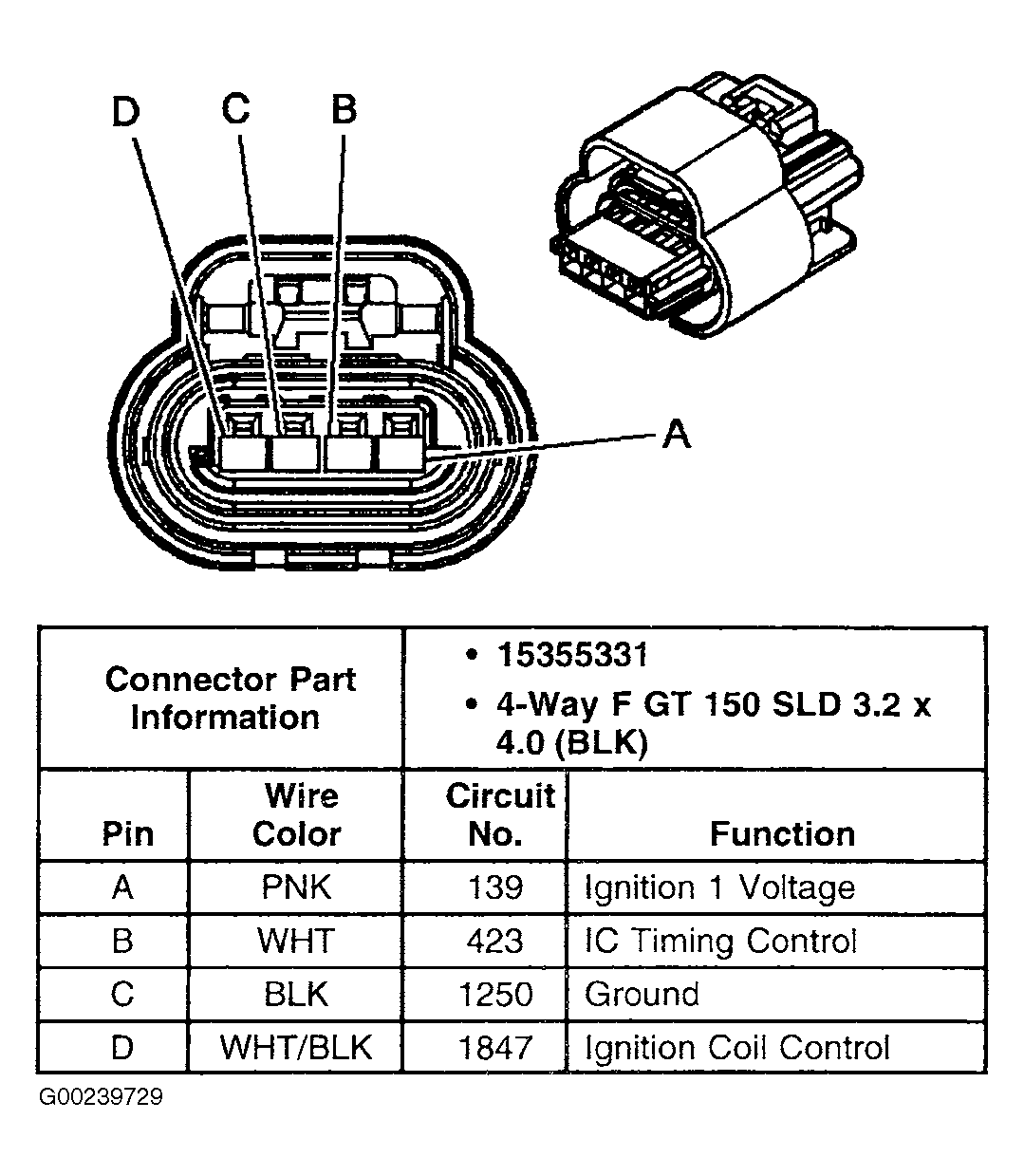

Fig 1: Ignition Control Module Connector End View

G00239729

Courtesy of GENERAL MOTORS CORP.
