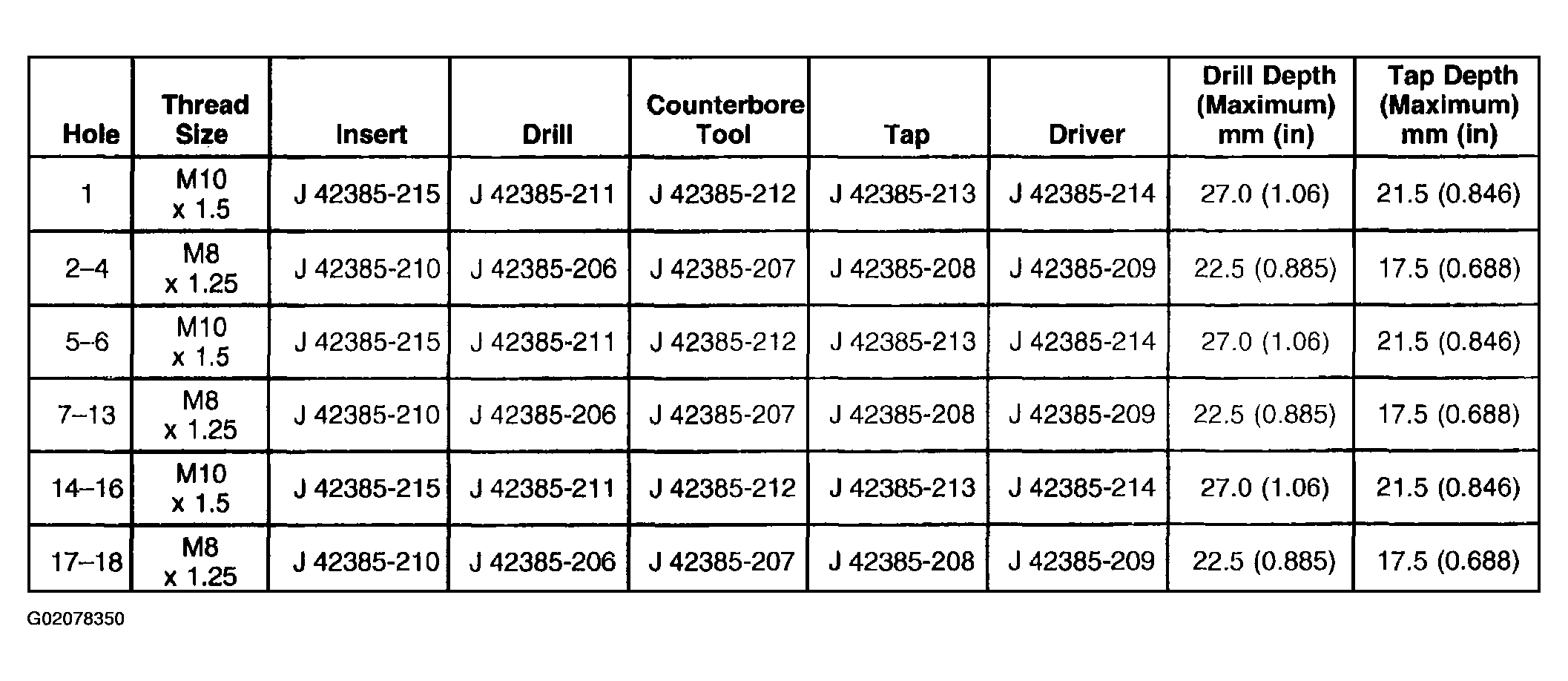

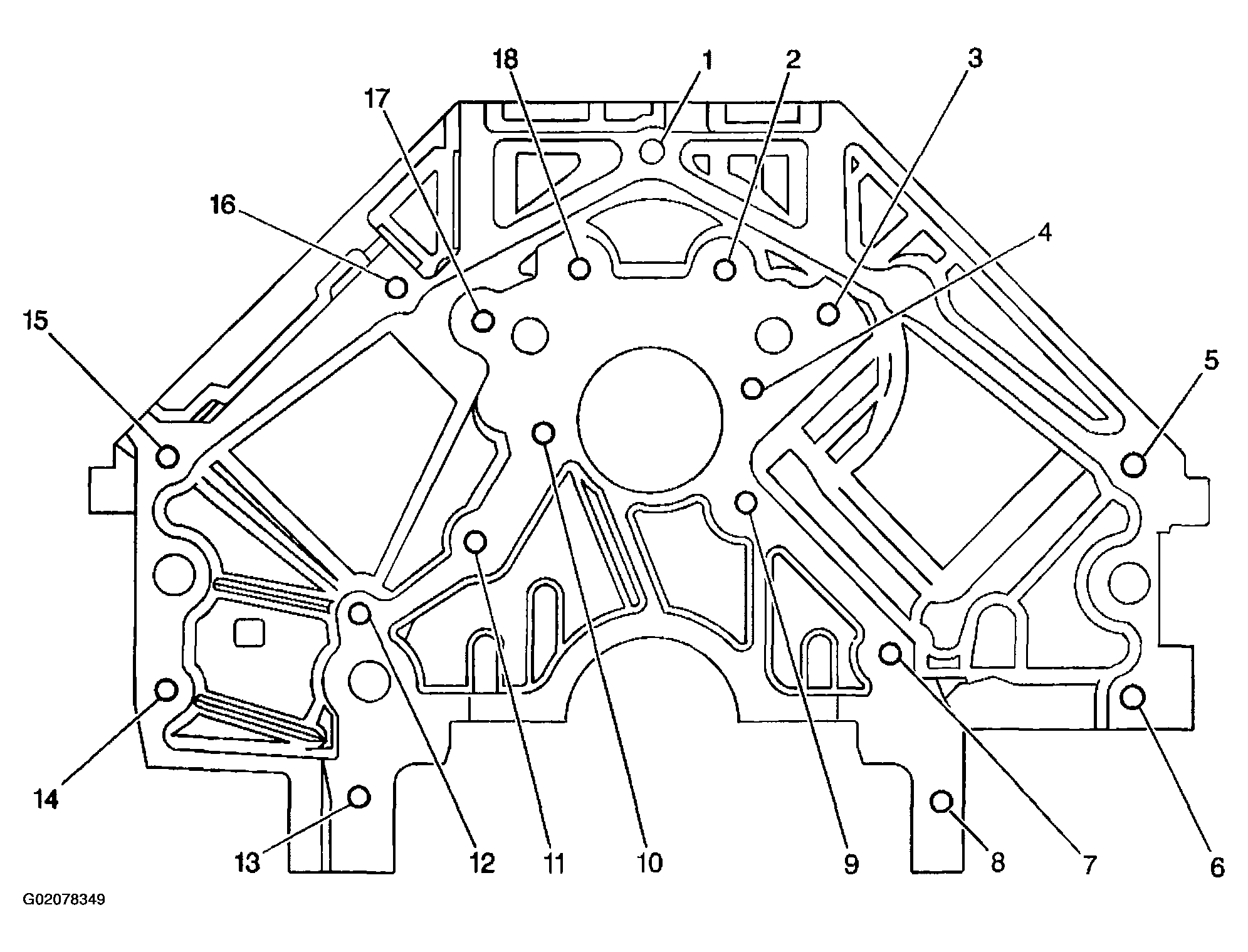

Home >> Chevrolet >> 2003 >> Chevy Express H2500 >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Engine Mechanical - 4.8L, 5.3L & 6.0L >> Specifications >> Thread Repair Specifications >> Engine Block-Rear View
