Wiper/Washer System Component Views

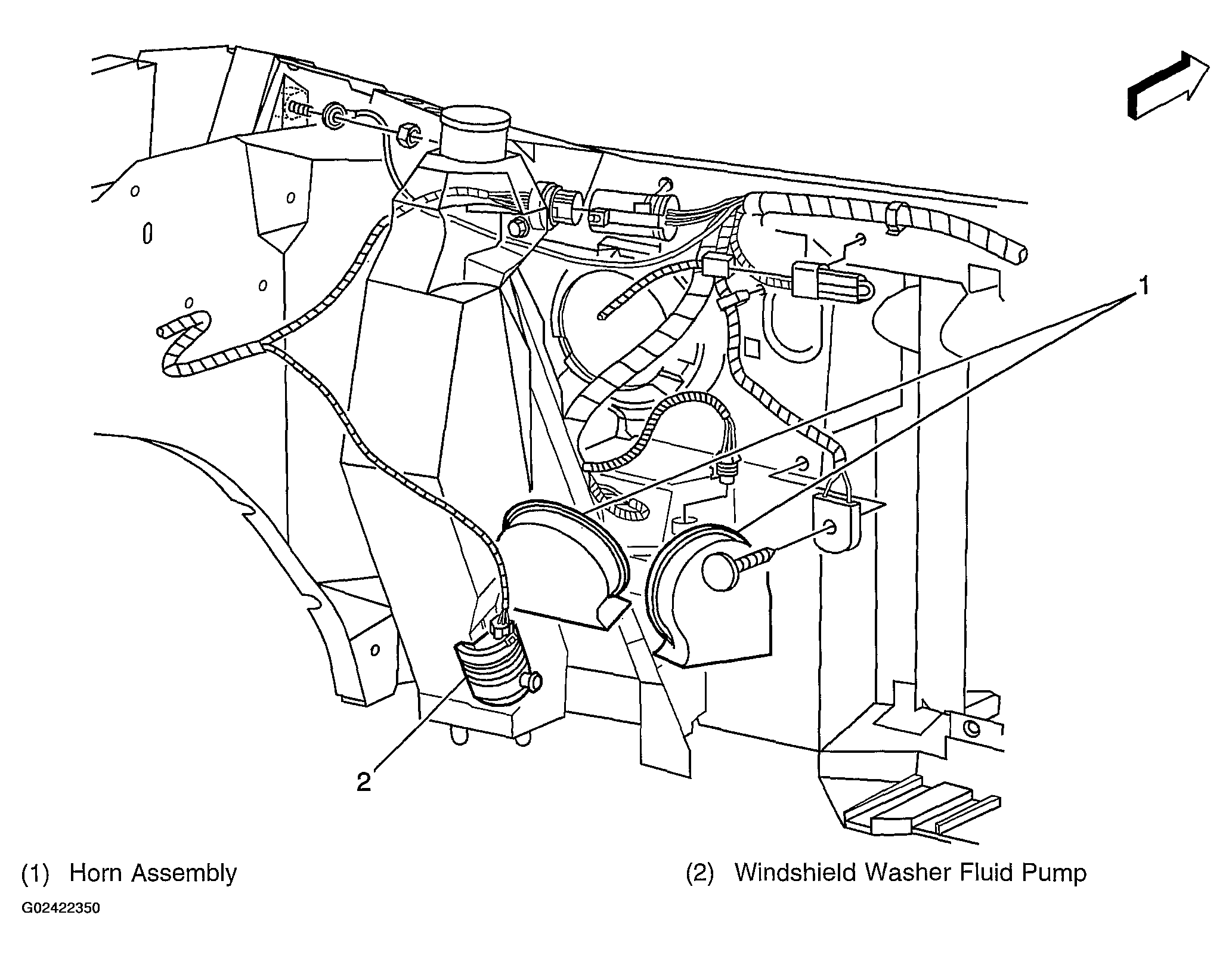

Fig 1: LF Of Engine Compartment Component Views
G02422350Courtesy of GENERAL MOTORS CORP.

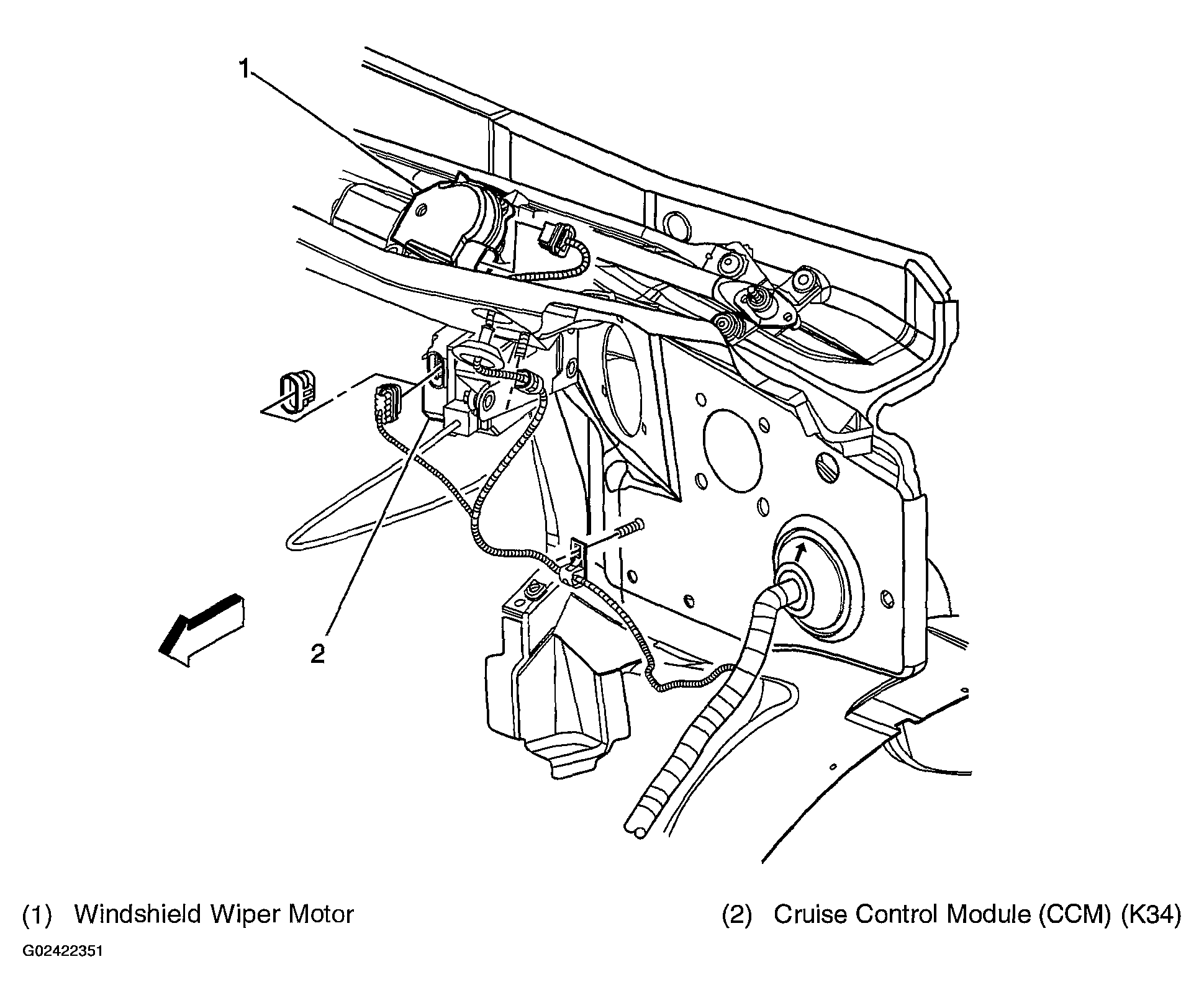

Fig 2: Left Rear Of Engine Compartment Component Views
G02422351Courtesy of GENERAL MOTORS CORP.

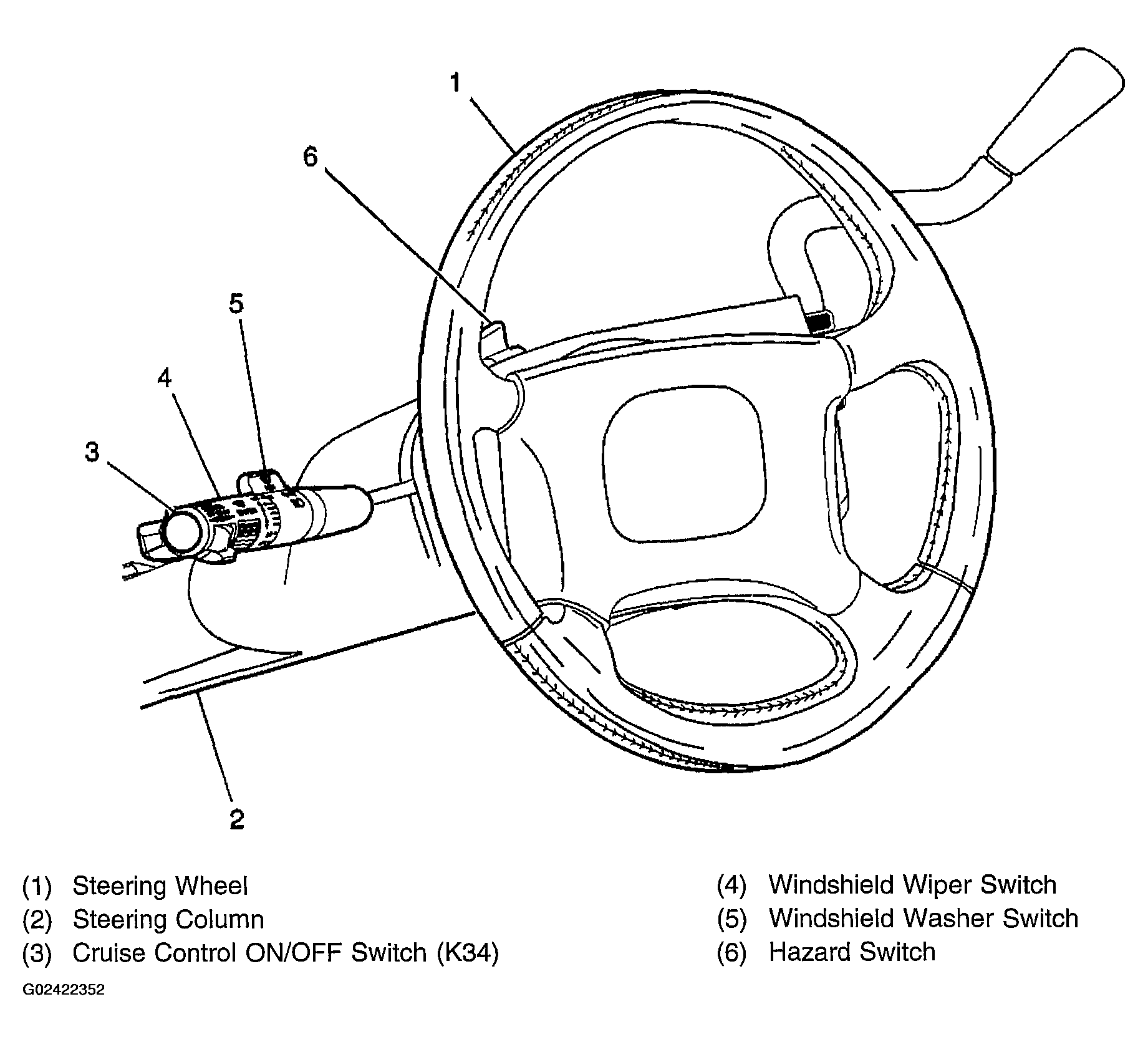

Fig 3: Upper Steering Column Component Views
G02422352Courtesy of GENERAL MOTORS CORP.
