Cellular Communication Component Views

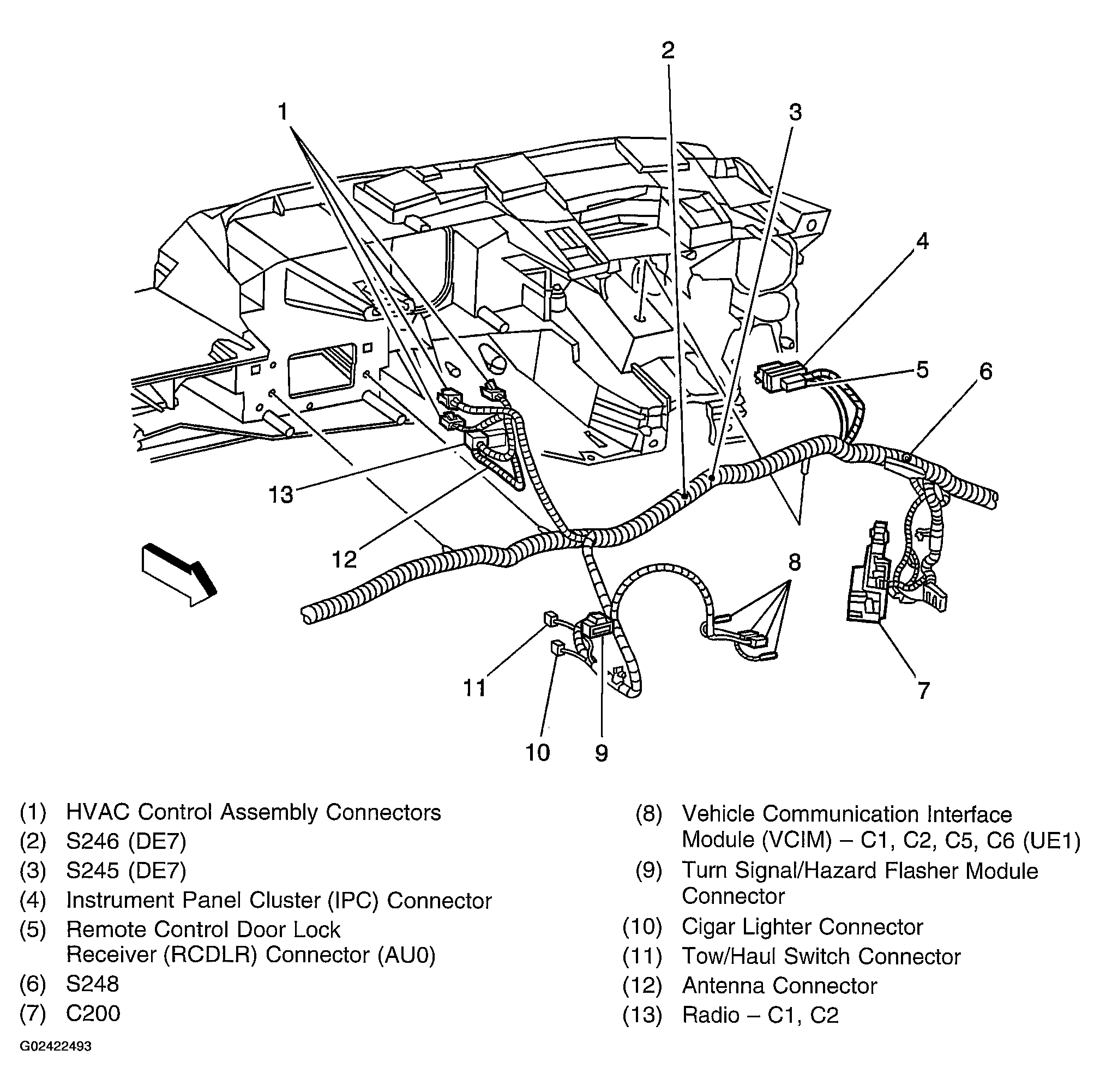

Fig 1: I/P Harness Routing - Center Of I/P

Courtesy of GENERAL MOTORS CORP.

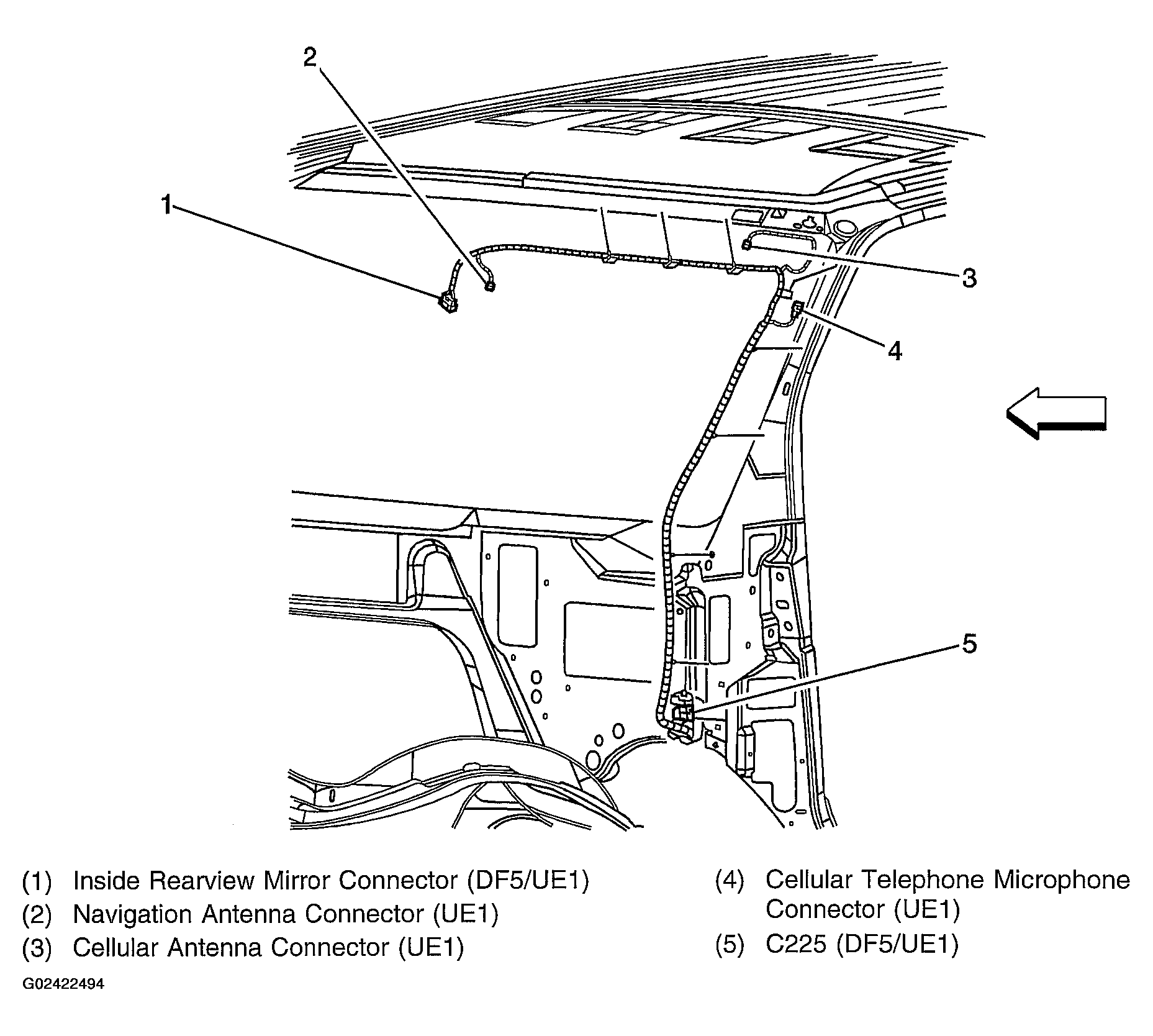

Fig 2: Mobile Telephone, Navigation & Inside Rearview Mirror Harness

Courtesy of GENERAL MOTORS CORP.
