Diagnostic Procedure

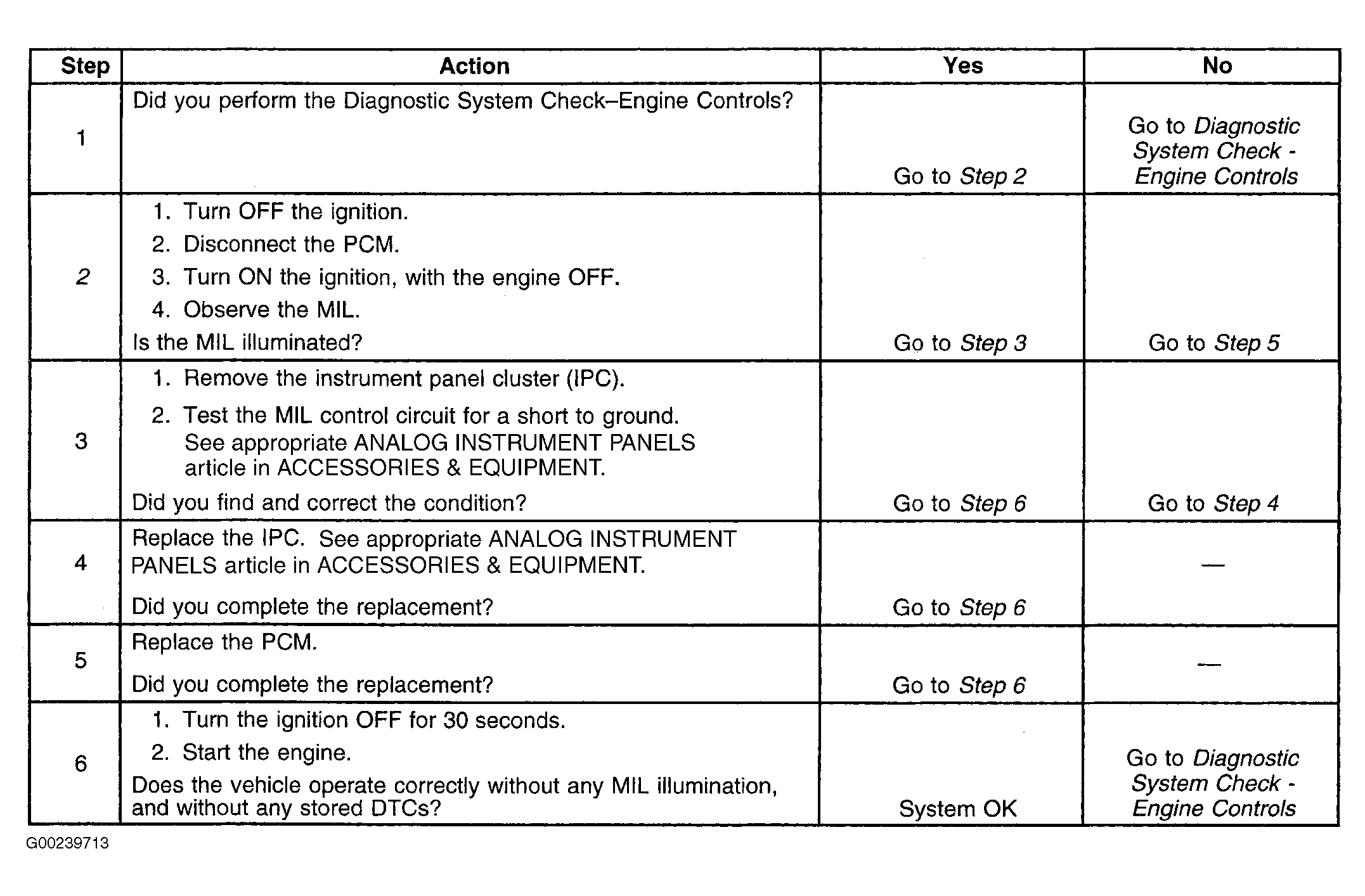

Fig 1: Malfunction Indicator Light (MIL) Always On
G00239713Courtesy of GENERAL MOTORS CORP.
