Lighting Systems Connector End View - Turn Signal/Hazard Flasher Module

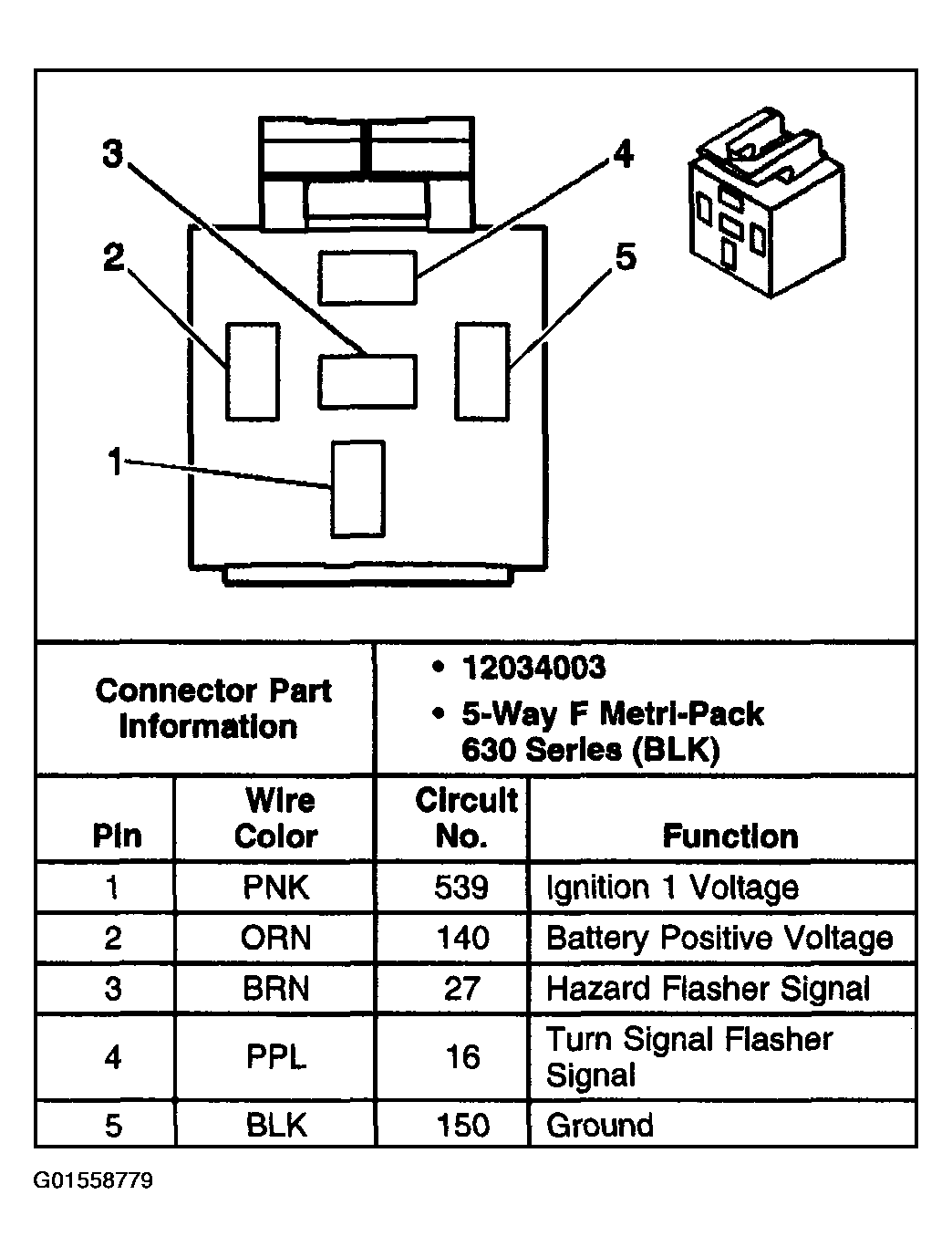

Fig 1: Lighting Systems Connector End View - Turn Signal/Hazard Flasher Module

G01558779

Courtesy of GENERAL MOTORS CORP.
