Removal Procedure

  1. Use a flat-bladed tool in order to remove the power window switch bezel (1) from the console.
  2. Remove the electrical connection from the power window switch (2).
  3. With a flat-bladed tool release the power window switch (2) tabs, and remove the switch from the power window bezel (1) retainers.

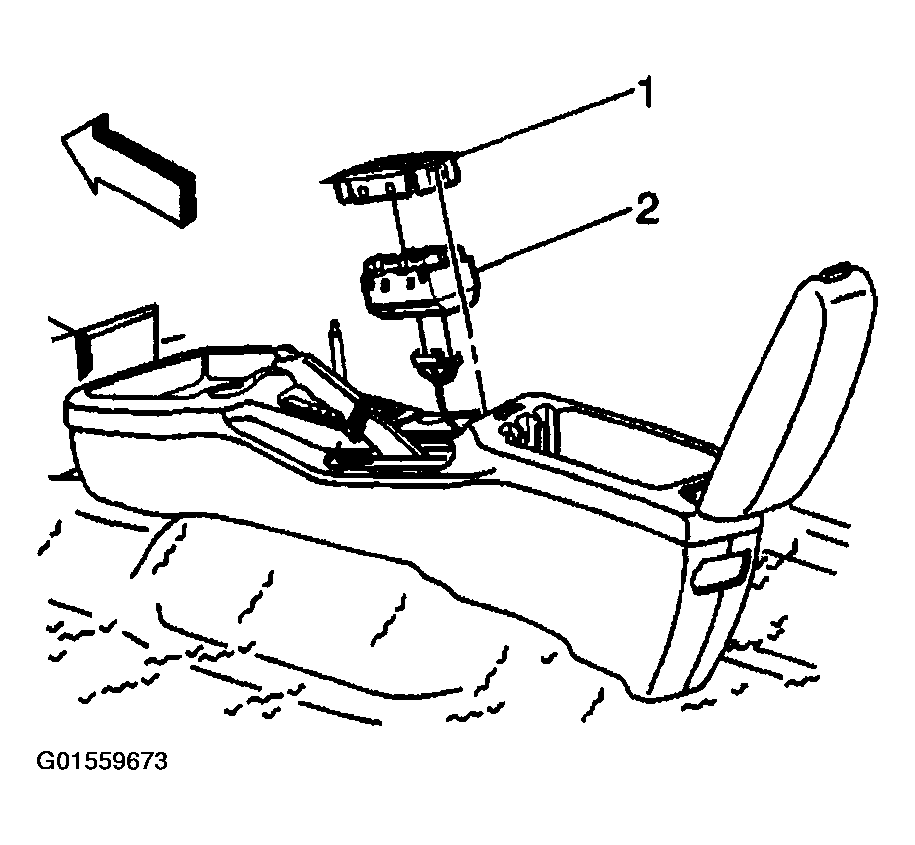

    Fig 1: Disconnecting Electrical Connector From Power Window Switch
    G01559673Courtesy of GENERAL MOTORS CORP.
