Transfer Case Disassembled View

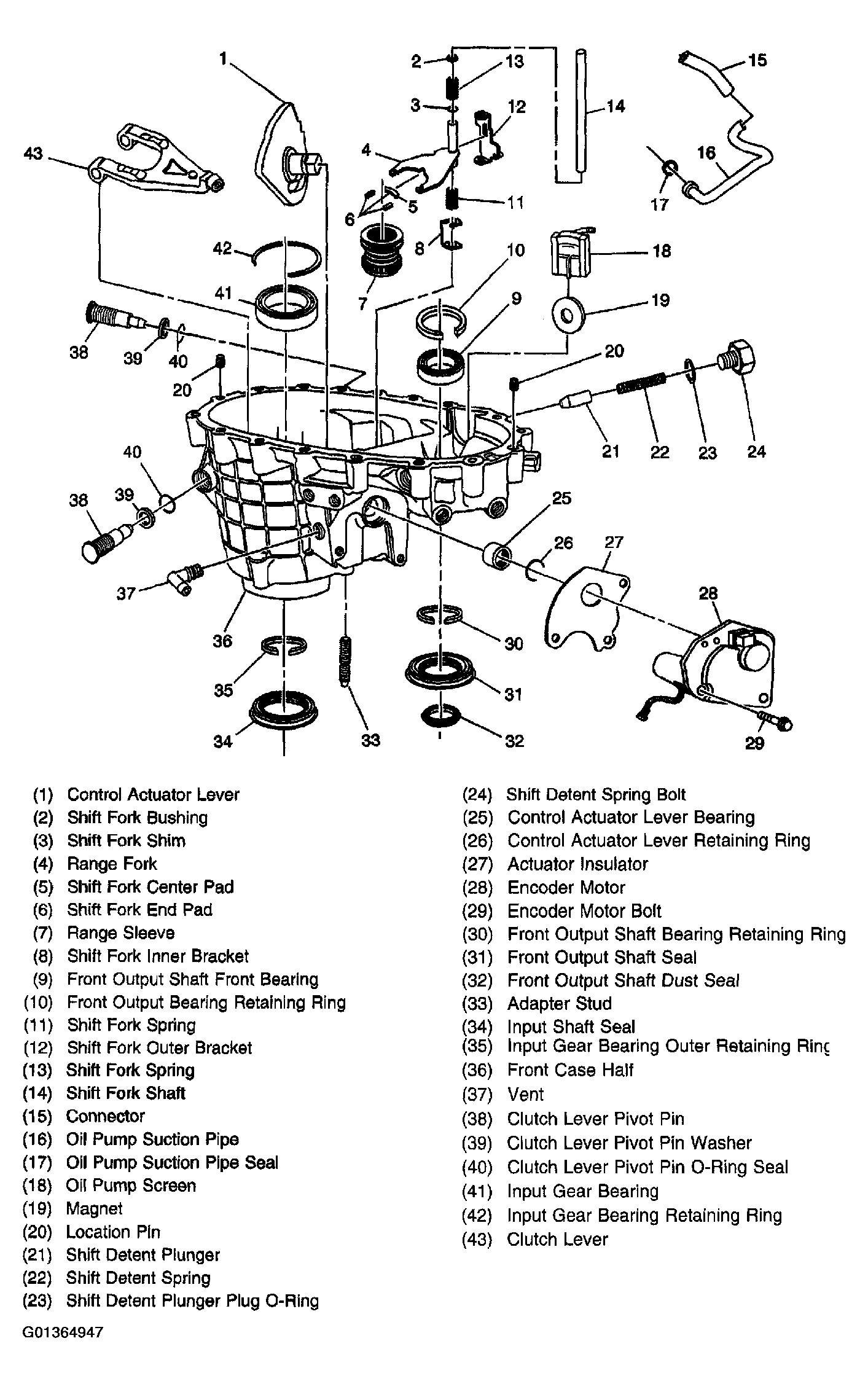

Fig 1: Front Case Half Components Disassembled View
G01364947Courtesy of GENERAL MOTORS CORP.

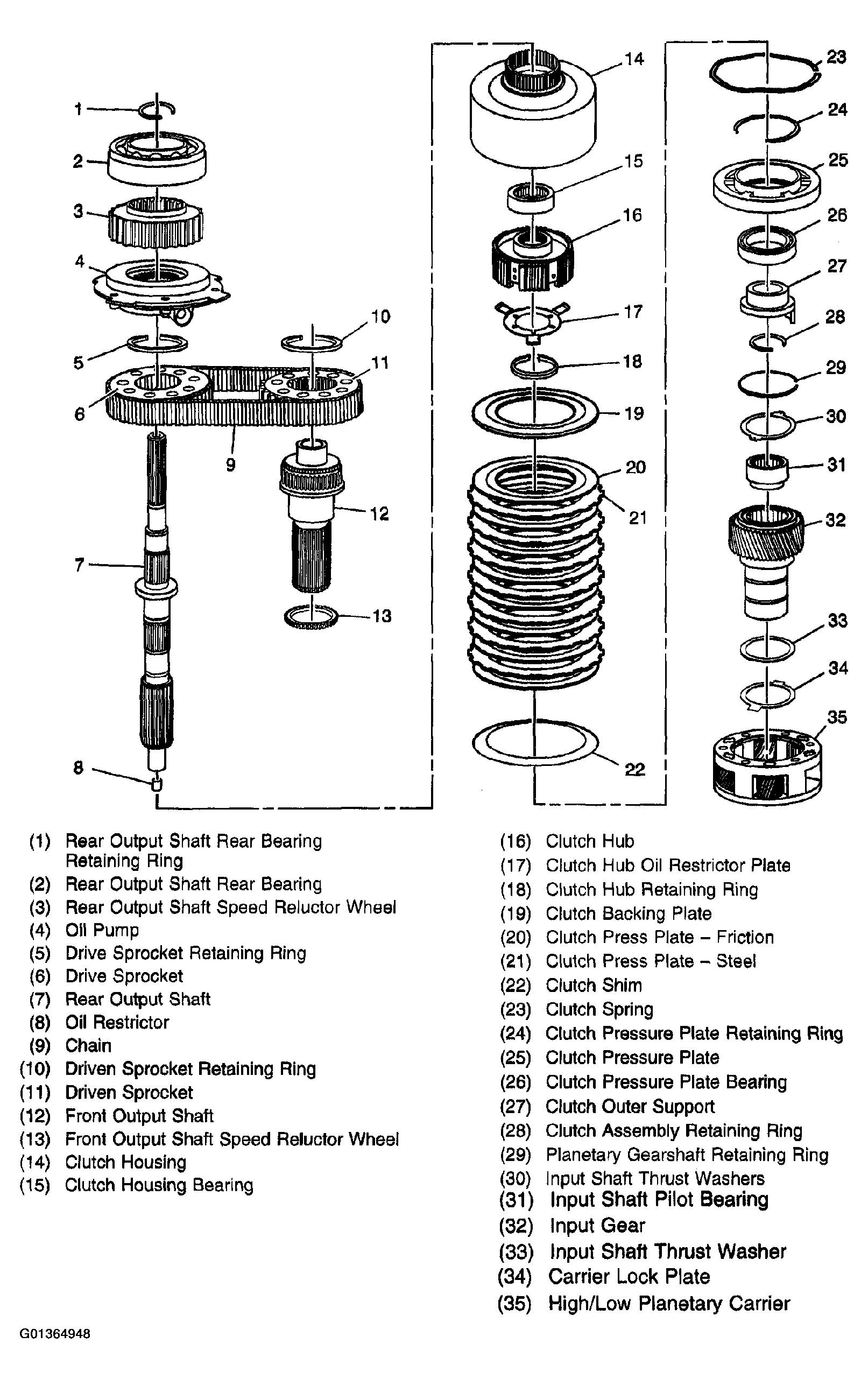

Fig 2: Internal Transfer Case Components Disassembled View
G01364948Courtesy of GENERAL MOTORS CORP.

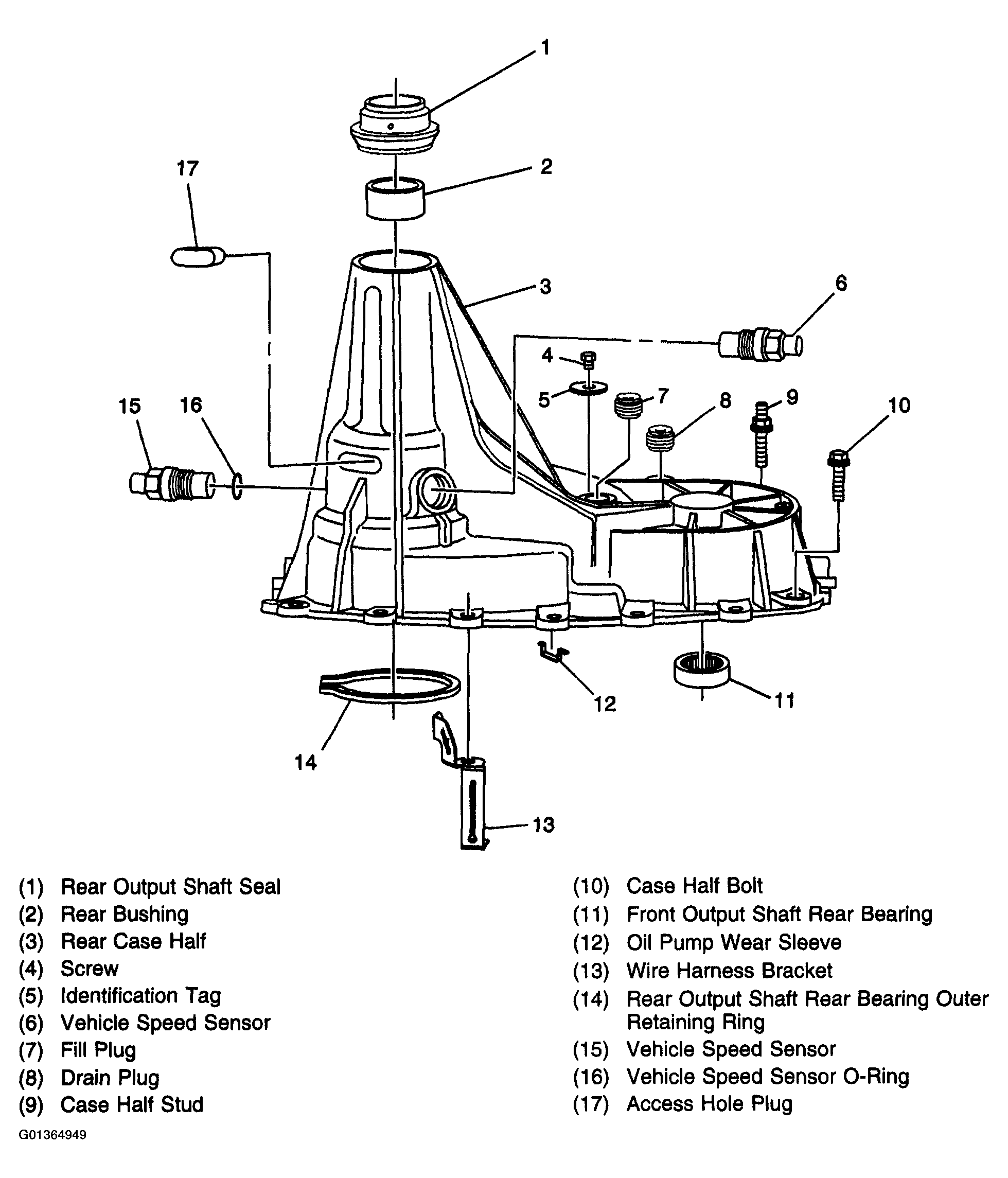

Fig 3: Rear Case Half Components Disassembled View
G01364949Courtesy of GENERAL MOTORS CORP.
