Splice Pack SP102

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

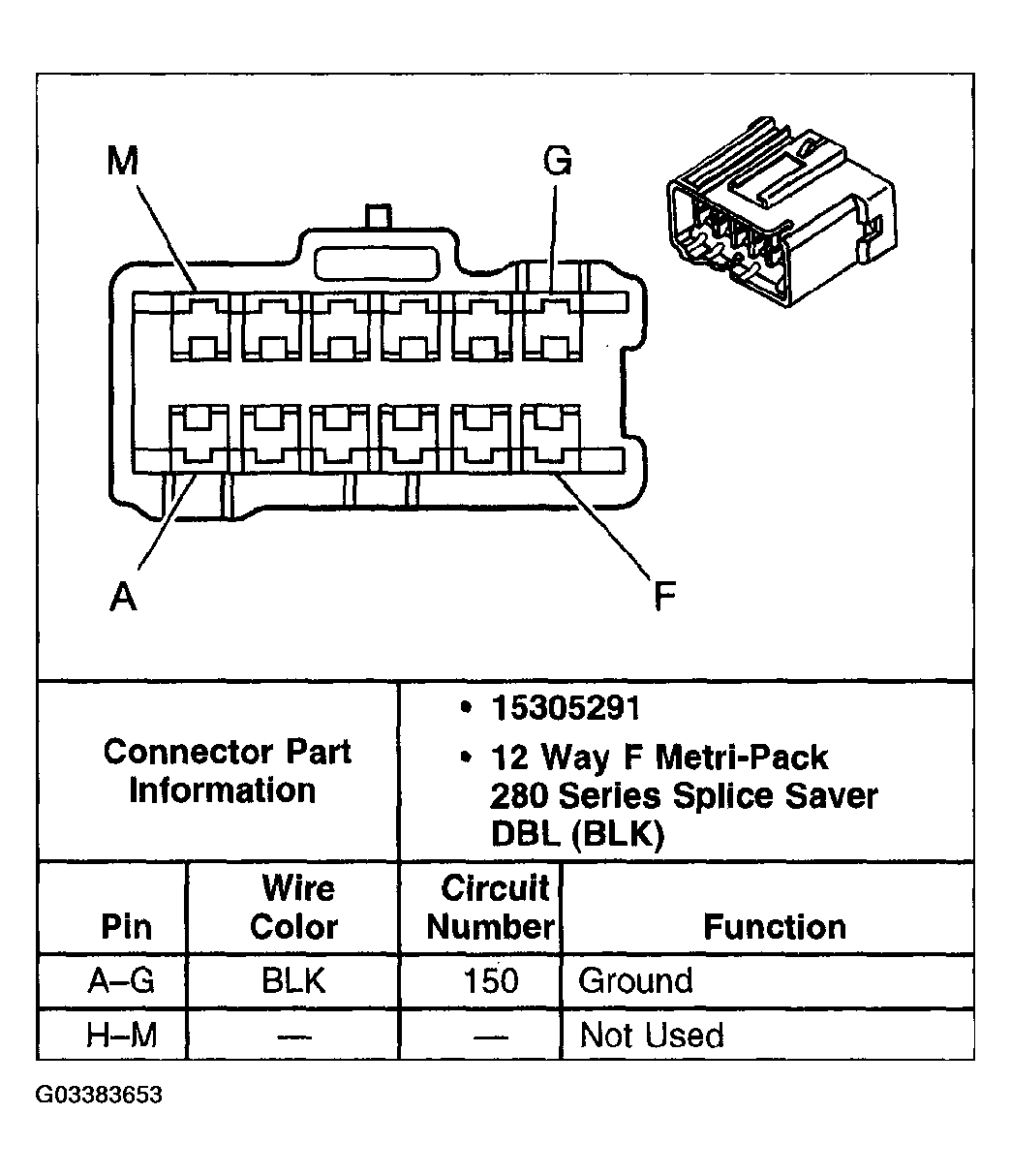

Fig 1: Identifying Splice Pack SP102 Connector Pin
G03383653Courtesy of GENERAL MOTORS CORP.
