Fuse Block-I/P C2

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fuse Block - I/P C2 Connector (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Fuse Block - I/P C2 Connector (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

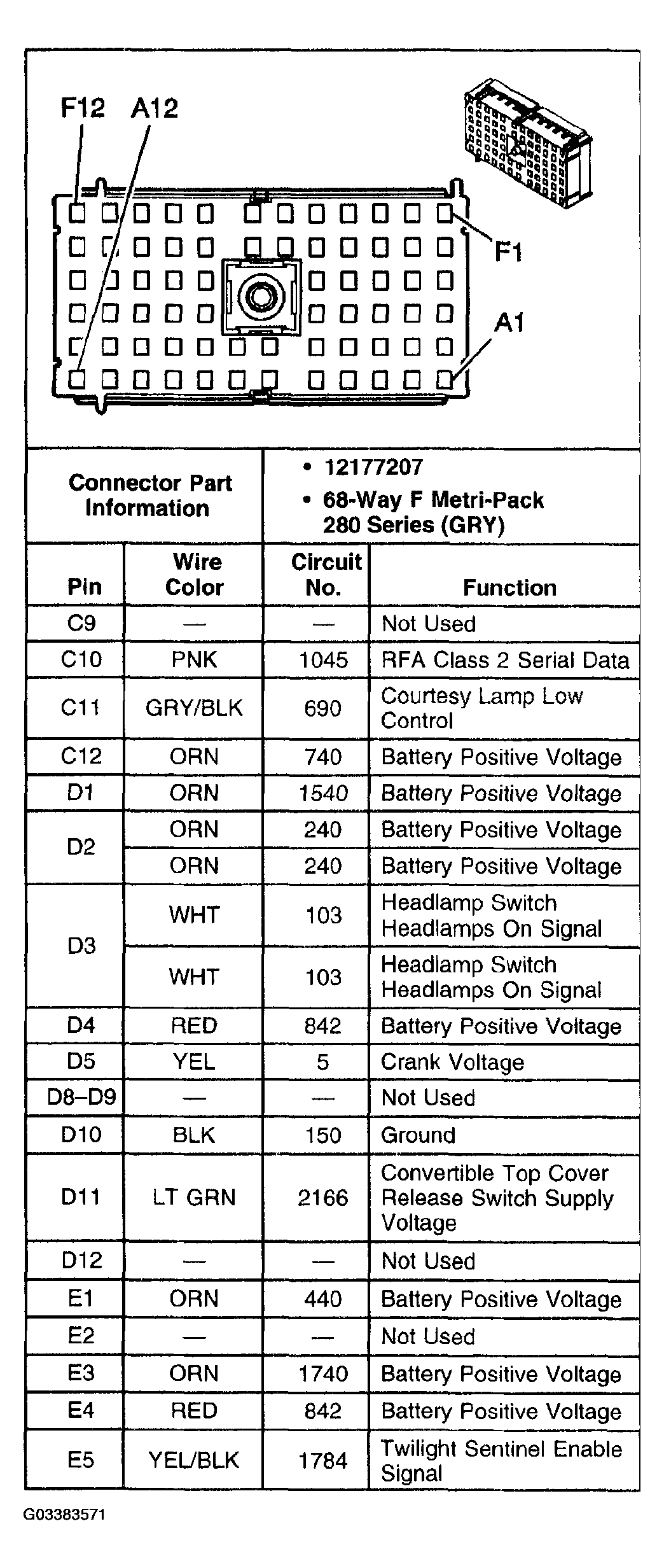

Fig 3: Identifying Fuse Block - I/P C2 Connector (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Fuse Block - I/P C2 Connector (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
