Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air deflector to the front bumper. Refer to Air Deflector Replacement - Front Bumper Fascia (Light Duty)  or Air Deflector Replacement - Front Bumper Fascia (Heavy Duty)  .
  2. Install the step pad to the front bumper. Refer to Step Pad Replacement - Front Bumper .
  3. Install the front bumper to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the bolts that retain the front bumper to the frame.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

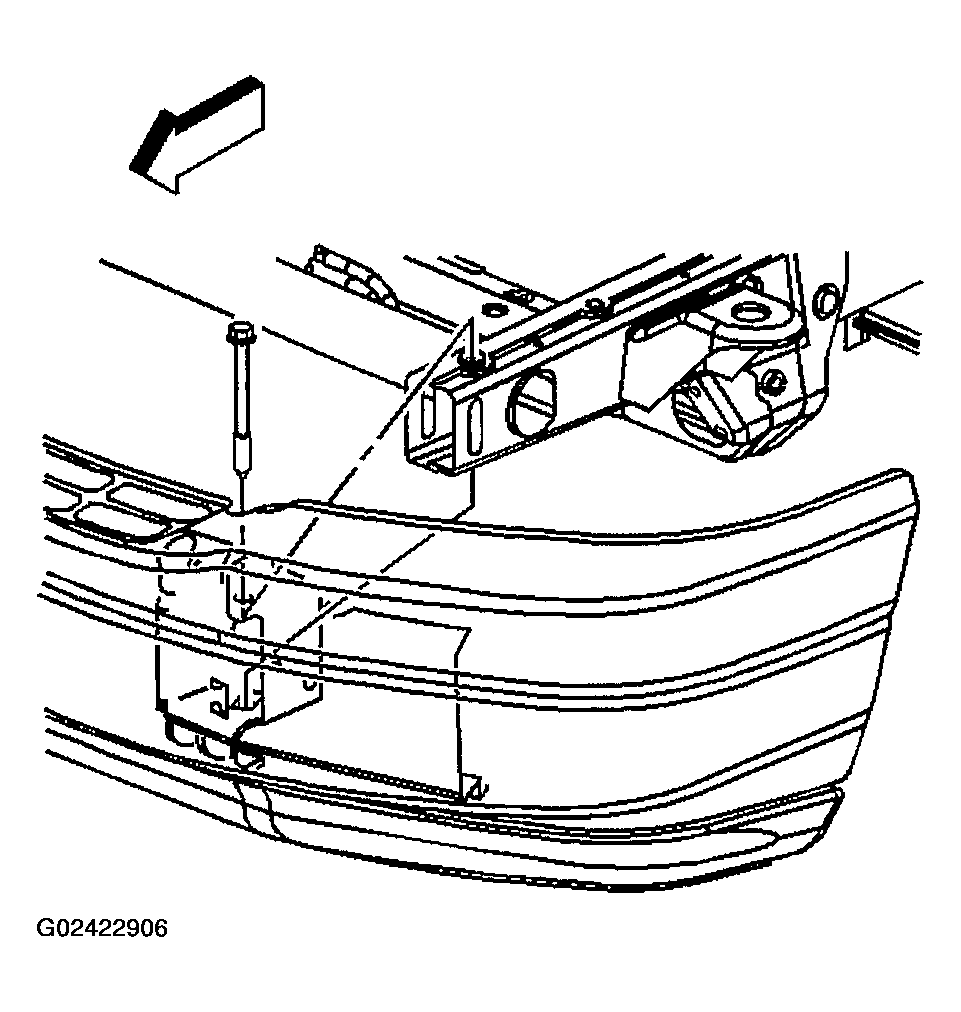

    Fig 1: Installing Front Bumper
    G02422906Courtesy of GENERAL MOTORS CORP.
