Extension Housing Assembly: Installation

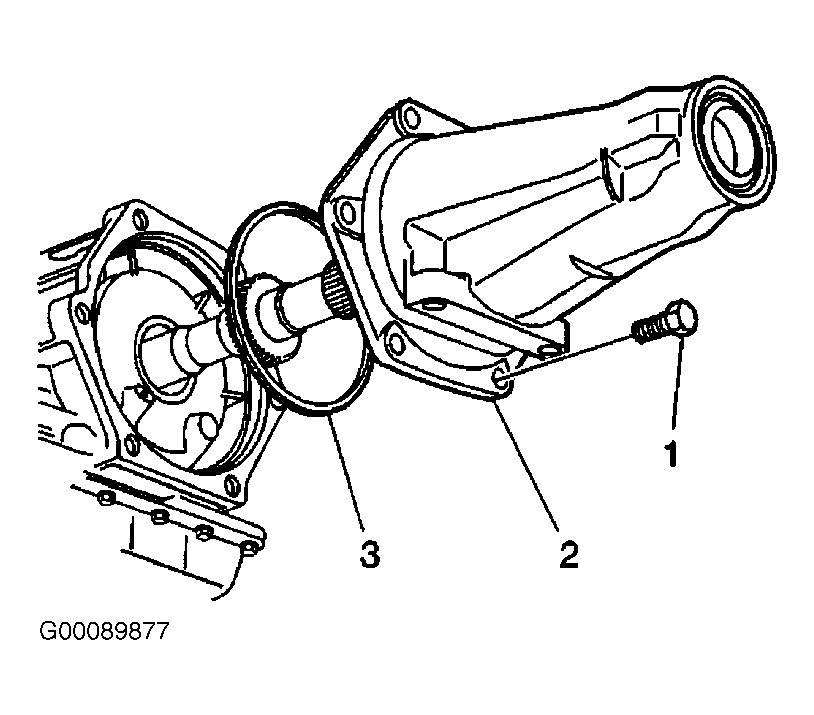

  1. Install a new case extension "O" ring seal (3). Install the case extension (2). See Figure .
  2. Install the case extension bolts (1). Tighten the case extension bolts (1) to specification. See TORQUE SPECIFICATIONS  .

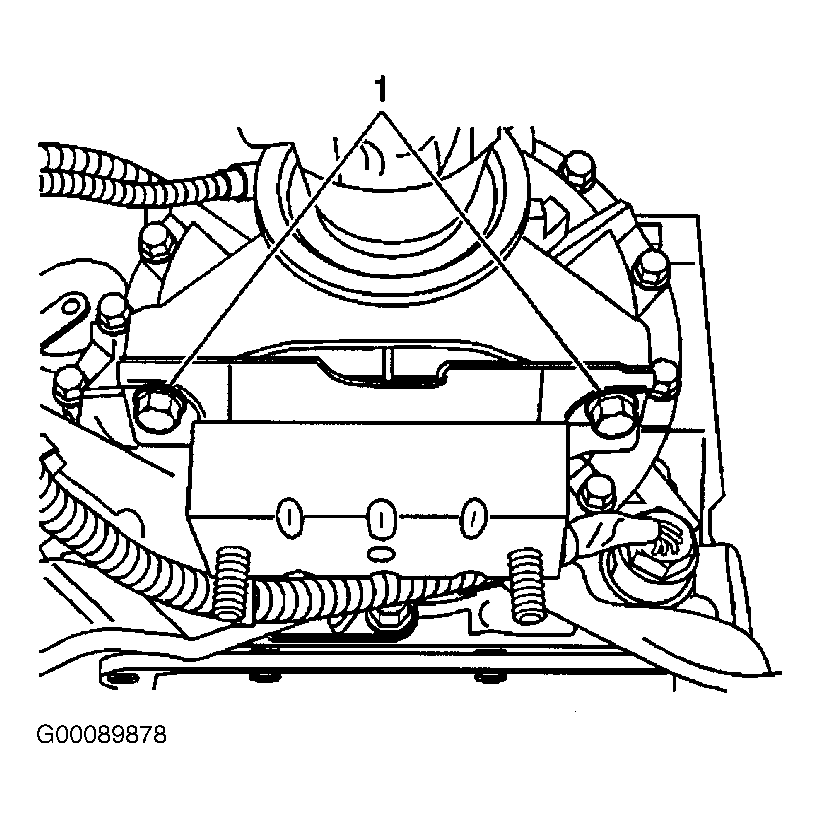

  3. Install the rear transmission or transfer case mounting bolts (1). Tighten bolts to specification. See TORQUE SPECIFICATIONS  . Lower the transmission. Install the transmission mount to the transmission support retaining nut or nuts. See Figure . Tighten the nut or nuts to specification. See TORQUE SPECIFICATIONS  .
  4. Install the drive shaft. See appropriate DRIVE SHAFTS & UNIVERSAL JOINTS article in DRIVELINE/AXLES. Remove the drain pan and the transmission jack. Lower the vehicle. Fill transmission with appropriate fluid to proper level. See RECOMMENDED FLUIDS  and FLUID CAPACITIES  under LUBRICATION.
