Installation Procedure

NOTE:
  1. Use the J 29193  in order to connect the connecting rod to the pitman arm ball stud.

    Ensure that the seal is on the stud.

    Tighten

    Tighten theJ 29193  to 54 N.m (40 lb ft) in order to seat the tapers.

    Remove the J 29193.

    Fig 1: Connecting Rod To Pitman Arm Ball Stud
    G01645986Courtesy of GENERAL MOTORS CORP.
  2. Install the new prevailing torque nut (1) to the pitman arm (3) ball stud.

    Tighten

    Tighten the nut the 62 N.m (48 lb ft).

  3. Use the J 29193  in order to install the connecting rod (4) ball stud to the relay rod (2).

    Ensure that the seal is on the stud.

    Tighten

    Tighten theJ 29193  to 54 N.m (40 lb ft) in order to seat the tapers.

  4. Remove the J 29193.
  5. Install the new prevailing torque nut (1) to the ball stud.

    Tighten

    Tighten the nut to 47 N.m (35 lb ft).

  6. Lower the vehicle.
  7. Adjust the toe-in. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.

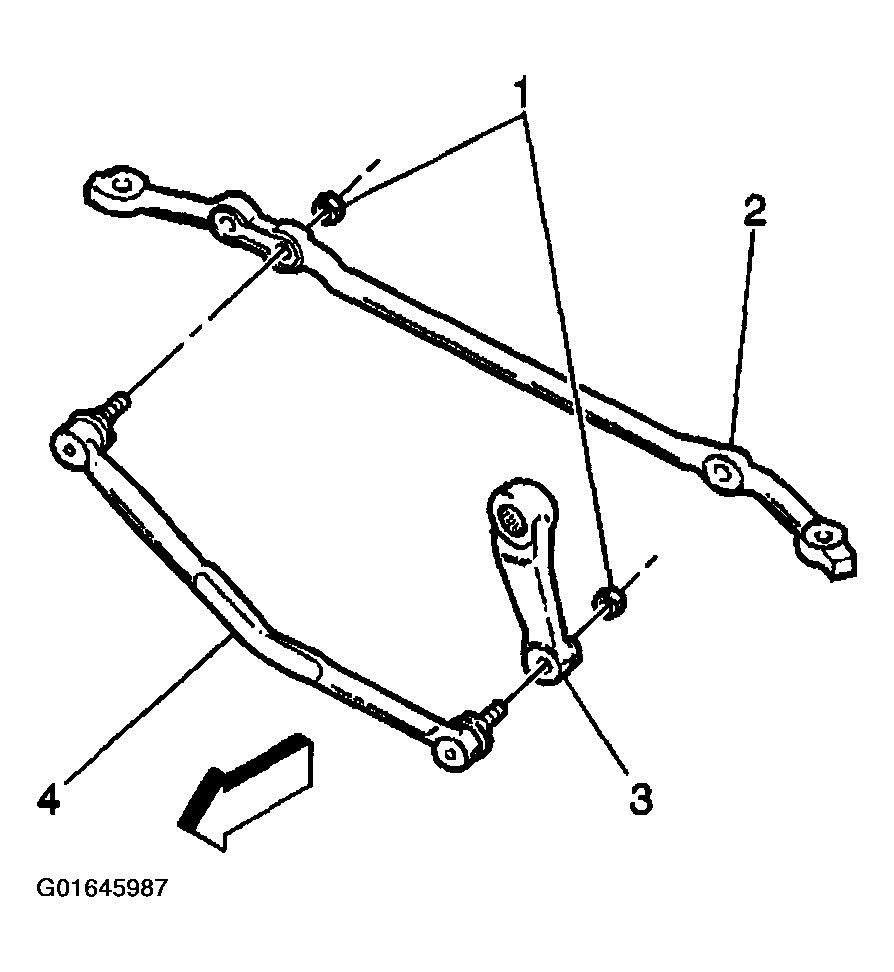

    Fig 2: Installing Connecting Rod Ball Stud To Relay Rod
    G01645987Courtesy of GENERAL MOTORS CORP.
