Home >> Chevrolet >> 2003 >> Astro Van Cargo, AWD >> Repair and Diagnosis >> Quick Lookups >> Common Specs & Procedures >> Flywheel/Flex Plate Torque

Flywheel/Flex Plate Torque

Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).

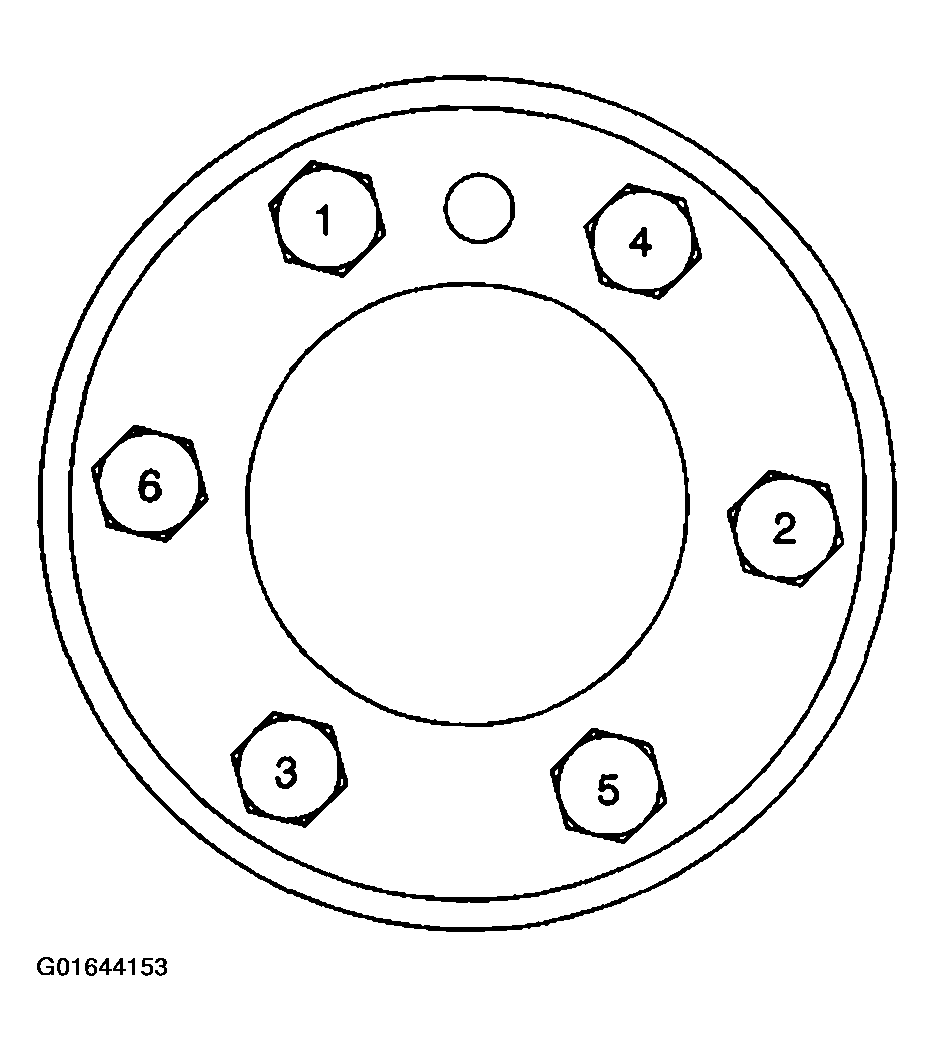

Fig 1: Engine Flywheel Bolts Tightening Sequence
G01644153Courtesy of GENERAL MOTORS CORP.
