Removal Procedure

CAUTION: Always wear protective goggles and gloves when removing exhaust parts as falling rust and sharp edges from worn exhaust components could result in serious personal injury.

CAUTION: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

An accumulation of dirt and corrosion may make removing exhaust components difficult. Applying a penetrating oil on the threads of the bolts may assist in the removal of these components.

Raise the vehicle. Refer to JACKING AND LIFTING - 2WD in General Information.
Support the muffler assembly.
Remove the 3 nuts connecting the muffler assembly to the catalytic converter assembly.

Fig 1: Removing Nuts Connecting Muffler Assembly To Catalytic Converter Assembly
Courtesy of GENERAL MOTORS CORP.
To aid in the removal of the muffler assembly, lubricate the rubber hangers with rubber lubricant GM P/N 12345884.

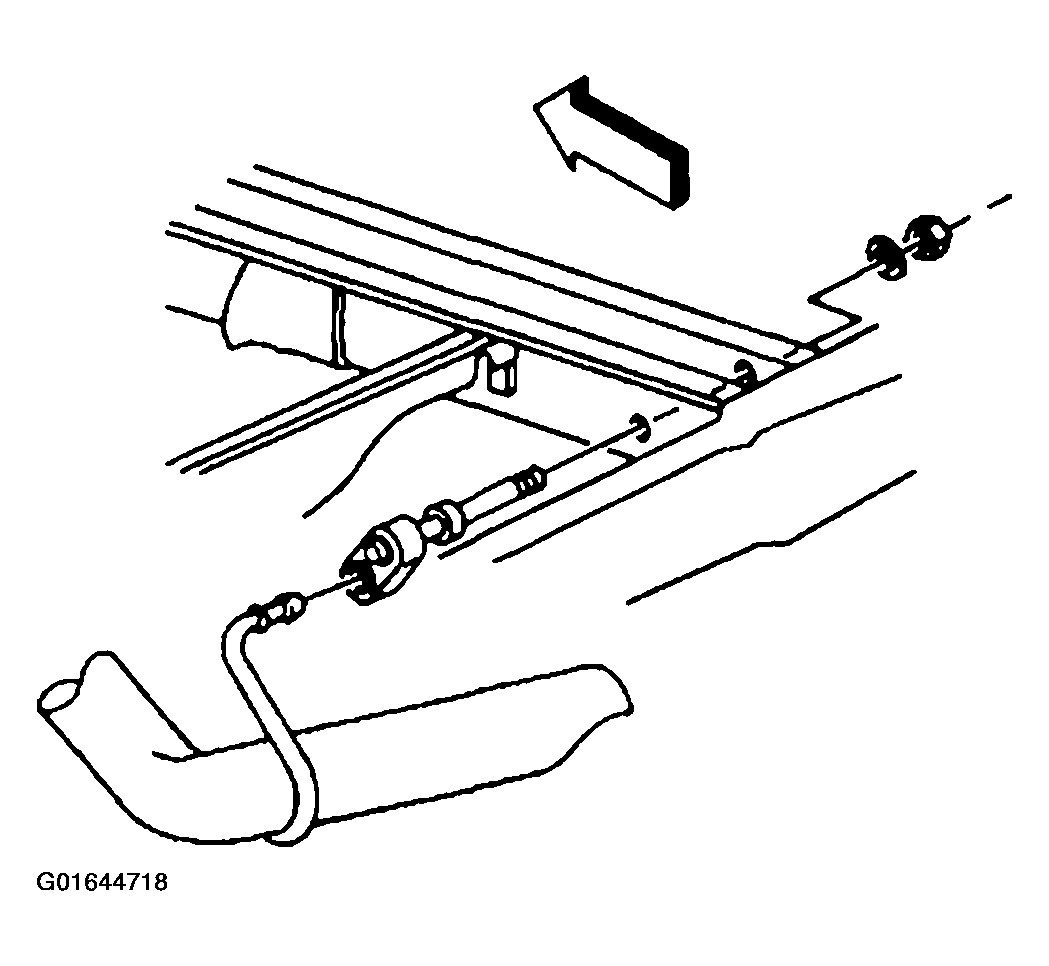

Remove the muffler assembly from the front hanger.

Fig 2: Removing Muffler Assembly From Front Hanger
Courtesy of GENERAL MOTORS CORP.

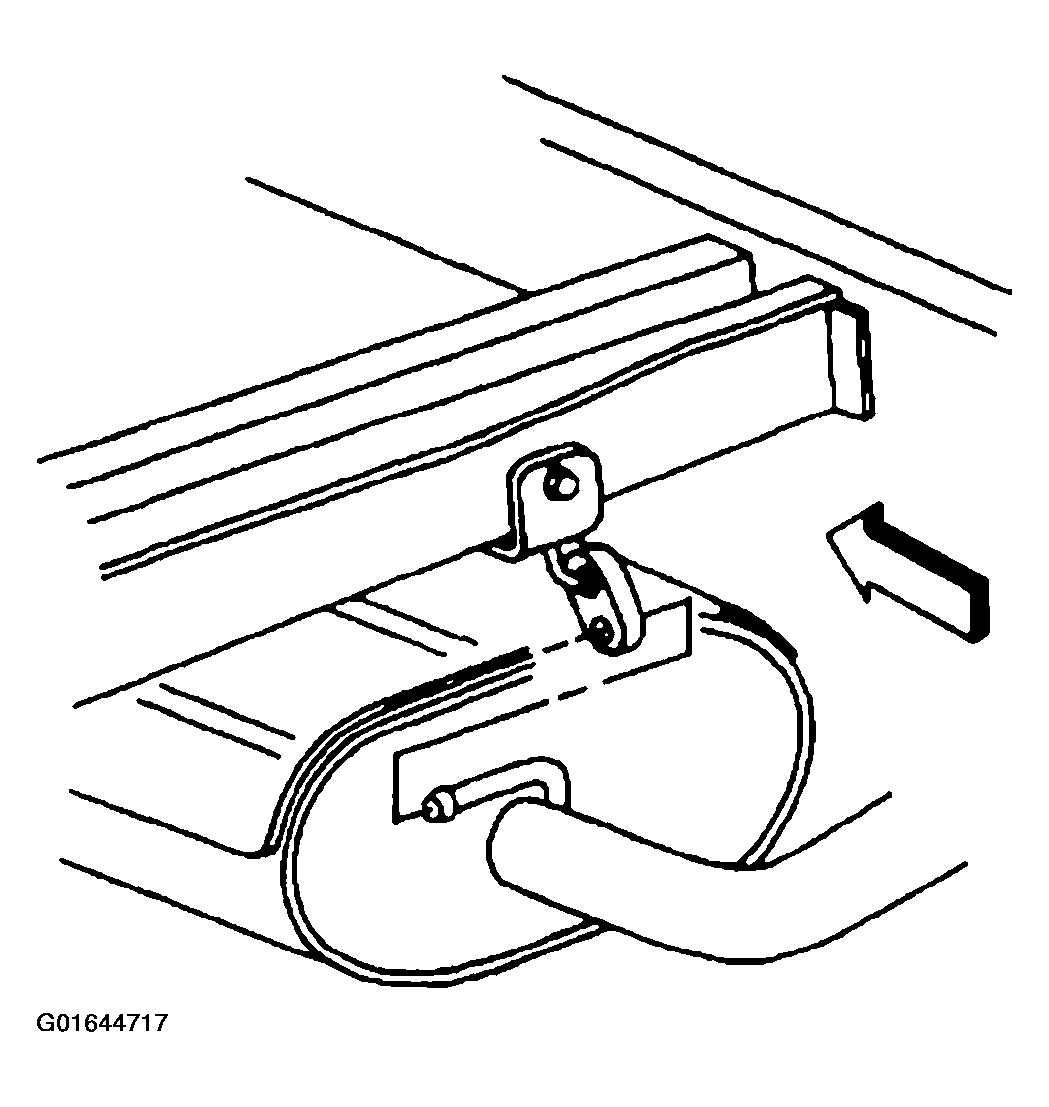

Remove muffler assembly from the rear hanger.

Fig 3: Removing Muffler Assembly From Rear Hanger
Courtesy of GENERAL MOTORS CORP.

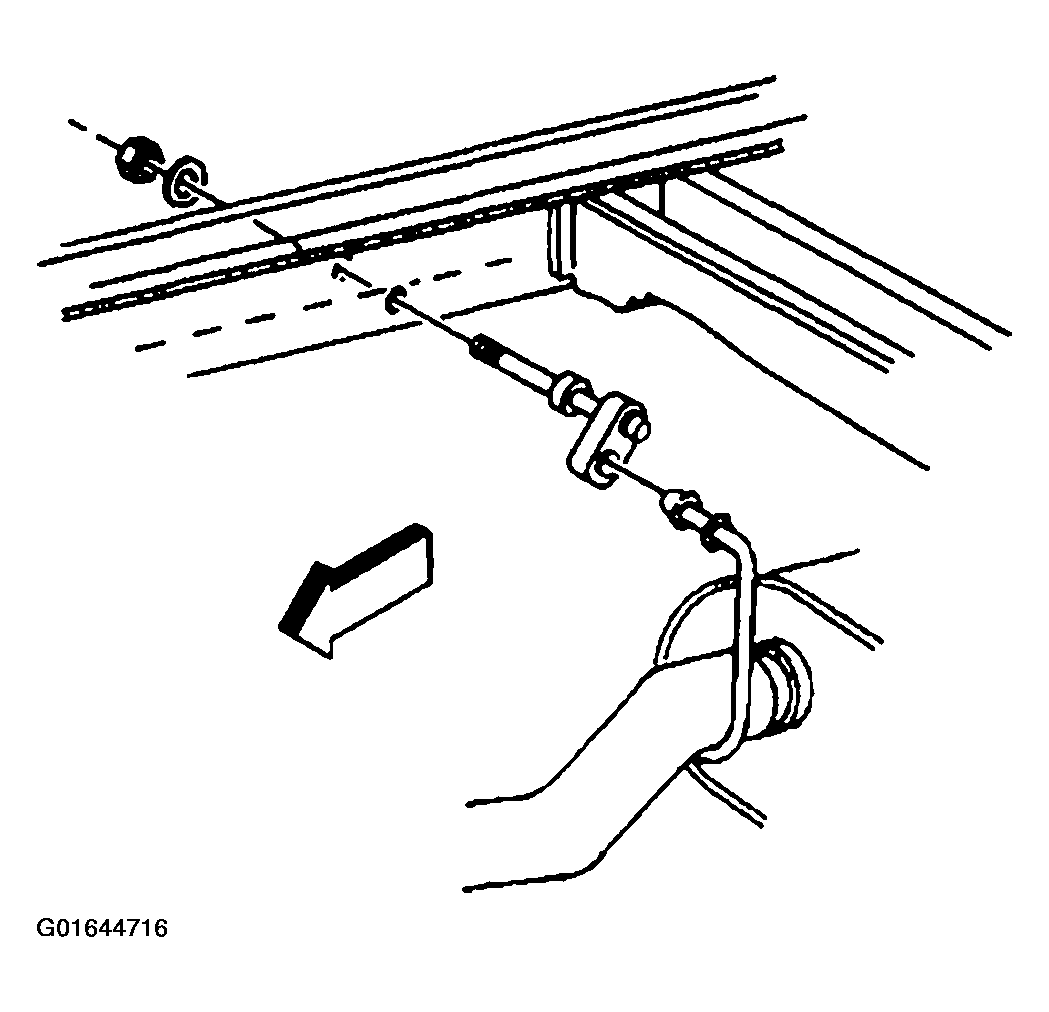

Remove the muffler assembly from the tailpipe hanger.

Fig 4: Removing Muffler Assembly From Tailpipe Hanger
Courtesy of GENERAL MOTORS CORP.
Remove the muffler assembly from the vehicle.
