Horns Component Views

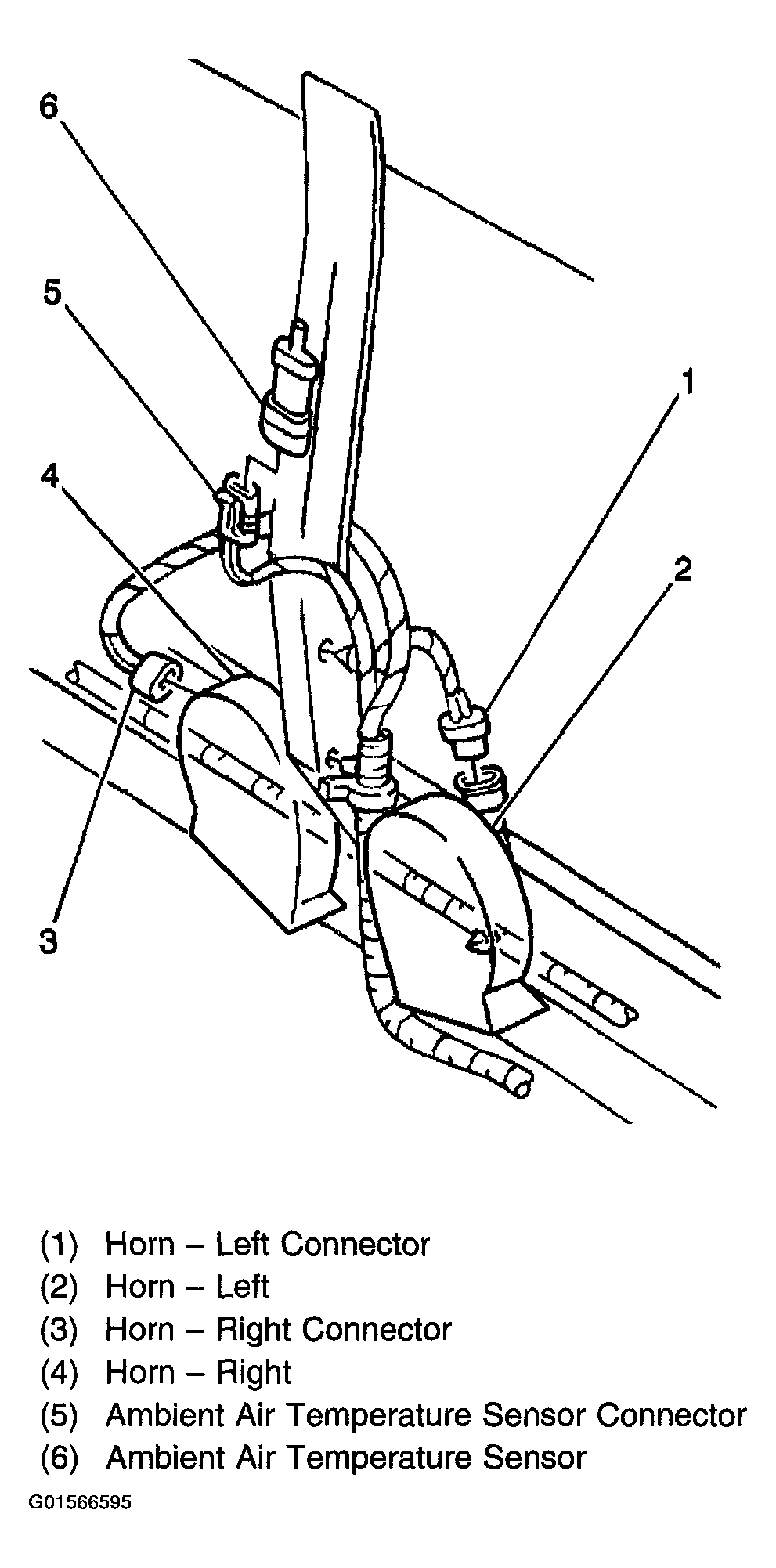

Fig 1: Identifying Horn Front End Center Wiring

G01566595

Courtesy of GENERAL MOTORS CORP.

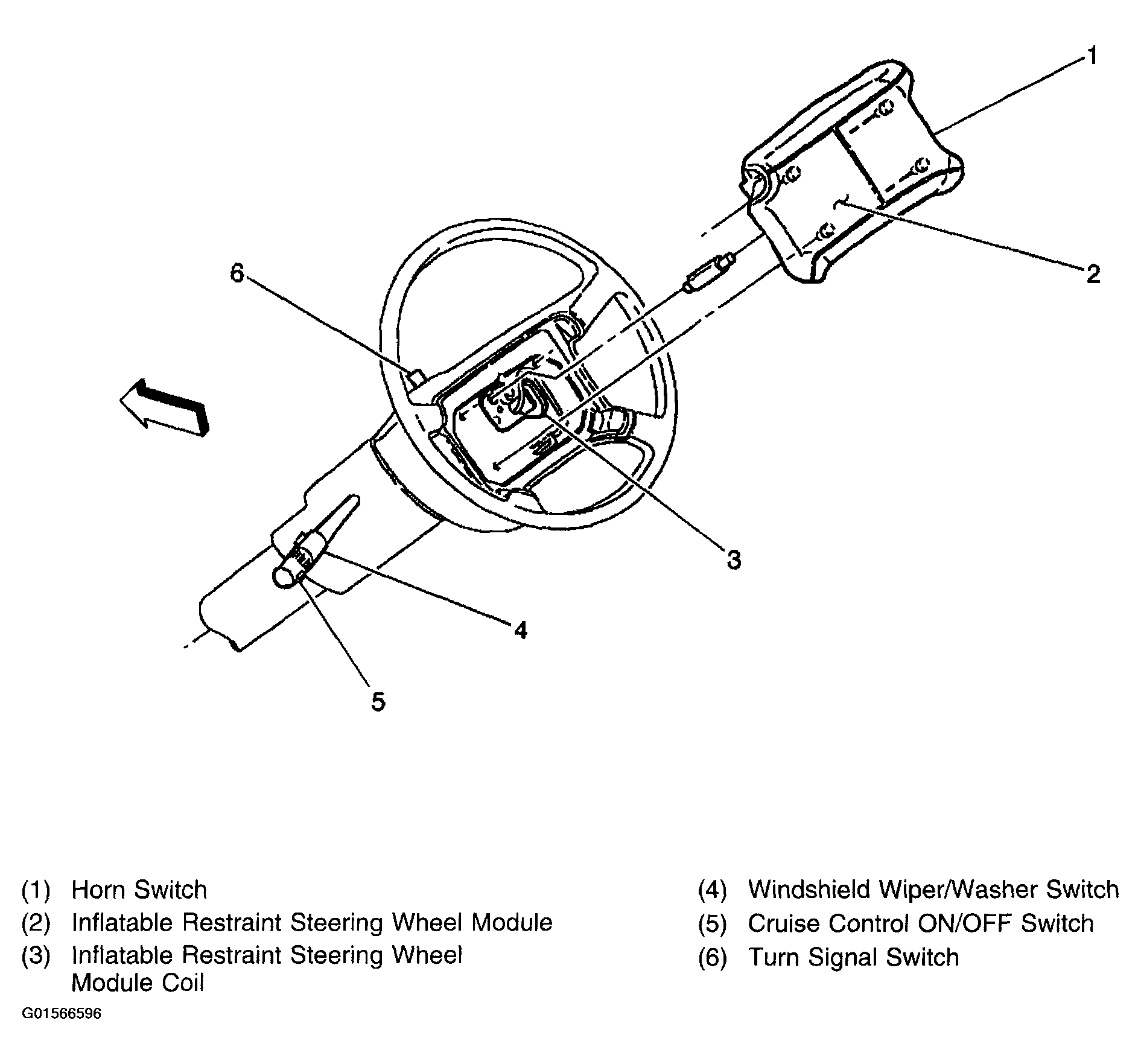

Fig 2: Exploded View Of Steering Column

G01566596

Courtesy of GENERAL MOTORS CORP.
