Installation Procedure

Install the ground lead.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

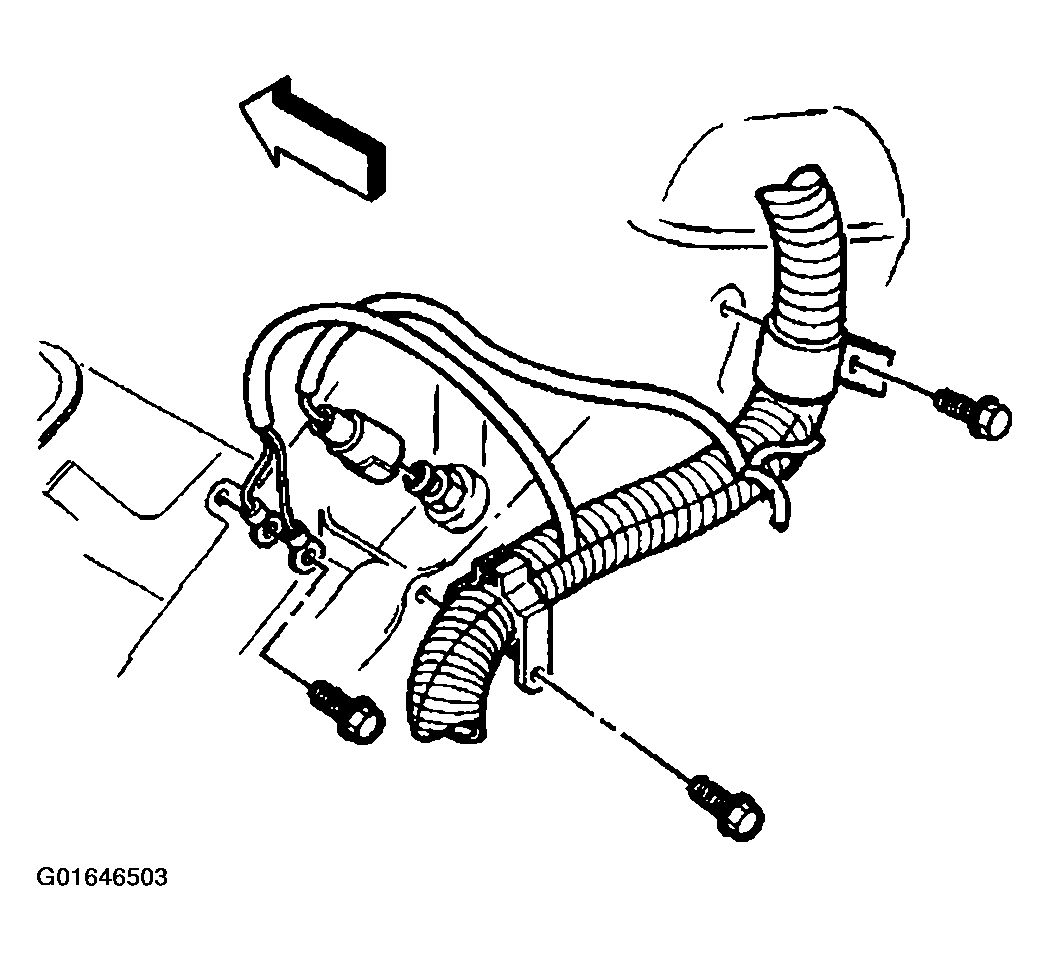

Fig 1: Installing Ground Strap Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Install the bolt.
Tighten

Tighten the bolt to 40 N.m (29 lb ft).
