Installation Procedure

  1. Install the battery tray.

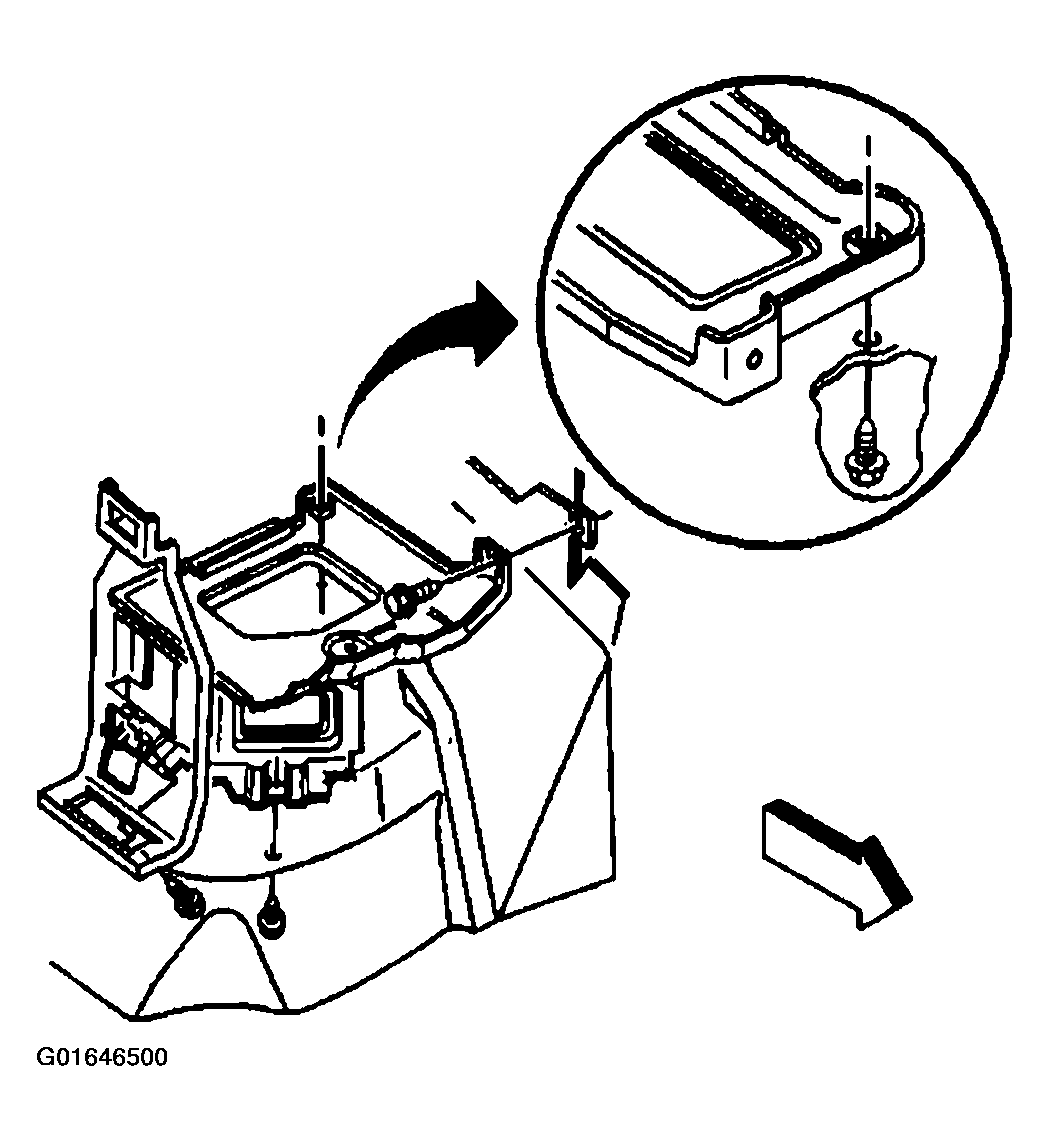

    Fig 1: Installing Battery Tray Retaining Bolts
    G01646500Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray retaining bolts.

    Tighten

    Tighten the battery tray retaining bolts to 25 N.m (18 lb ft).

  3. Install the VCM and the VCM retaining clip.

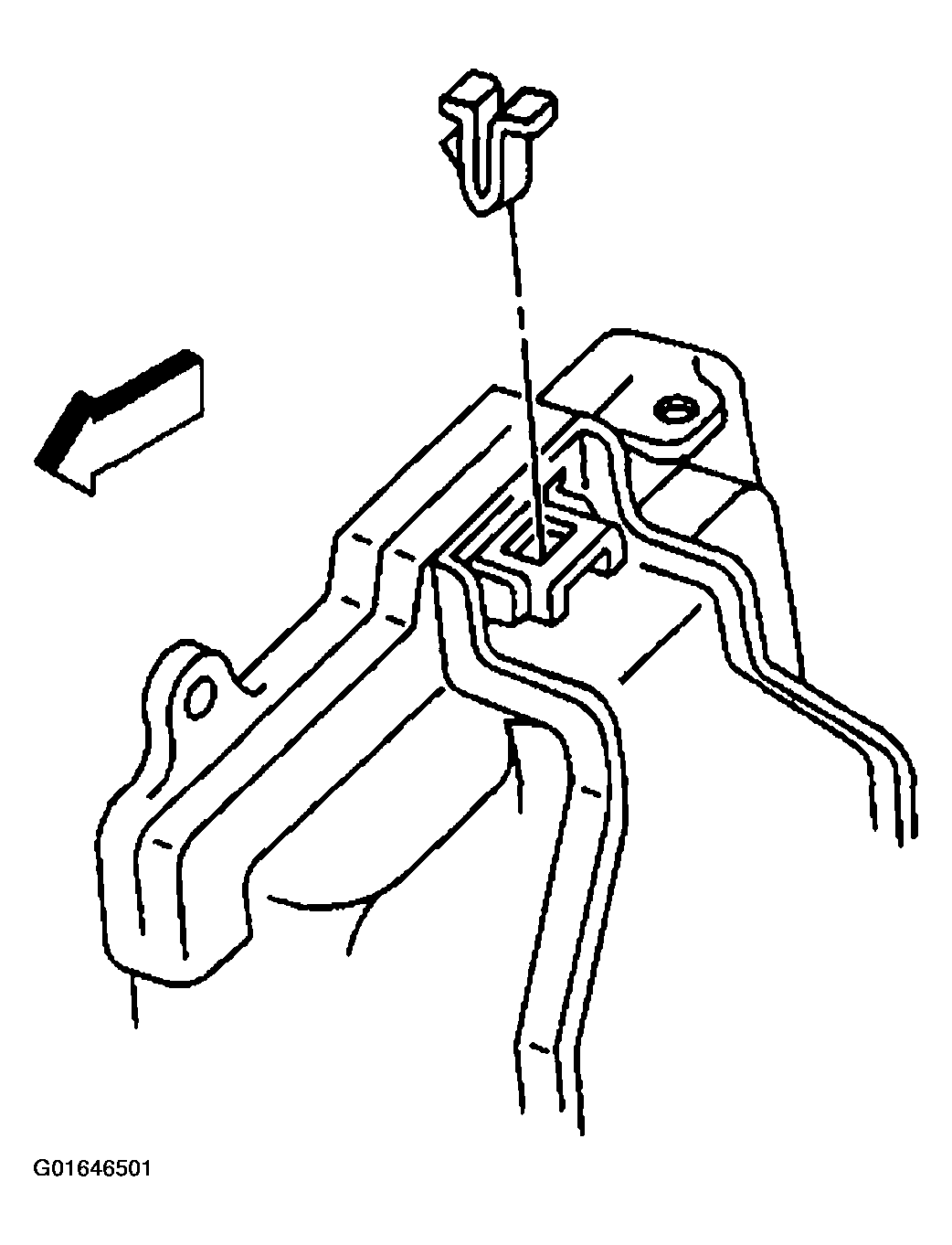

    Fig 2: Installing VCM Retaining Clip
    G01646501Courtesy of GENERAL MOTORS CORP.
  4. Install the battery. Refer to BATTERY REPLACEMENT .
