Removal Procedure

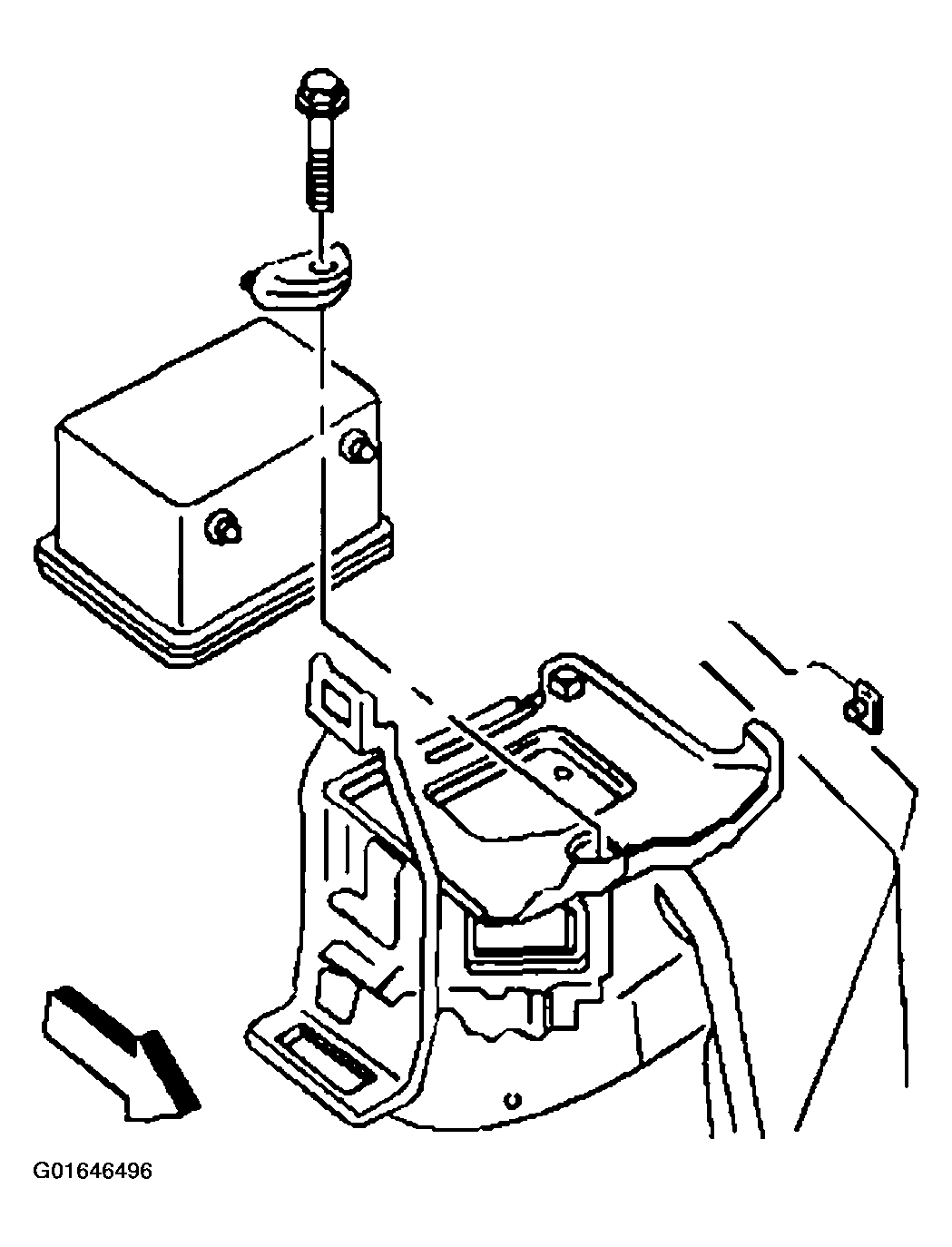

Fig 1: Removing Battery Hold-Down Retainer Bolt
G01646496Courtesy of GENERAL MOTORS CORP.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable.
  2. Disconnect the battery positive cable.
  3. Remove the battery hold-down retainer bolts.
  4. Remove the hold-down retainer.
  5. Remove the battery.
  6. Remove the battery for damage.
  7. Inspect the cables and the connectors for corrosion or wear.
  8. Inspect the carrier for damage or foreign objects. If damage is noted, find and correct the cause.
  9. Replace parts as necessary.
