Installation Procedure

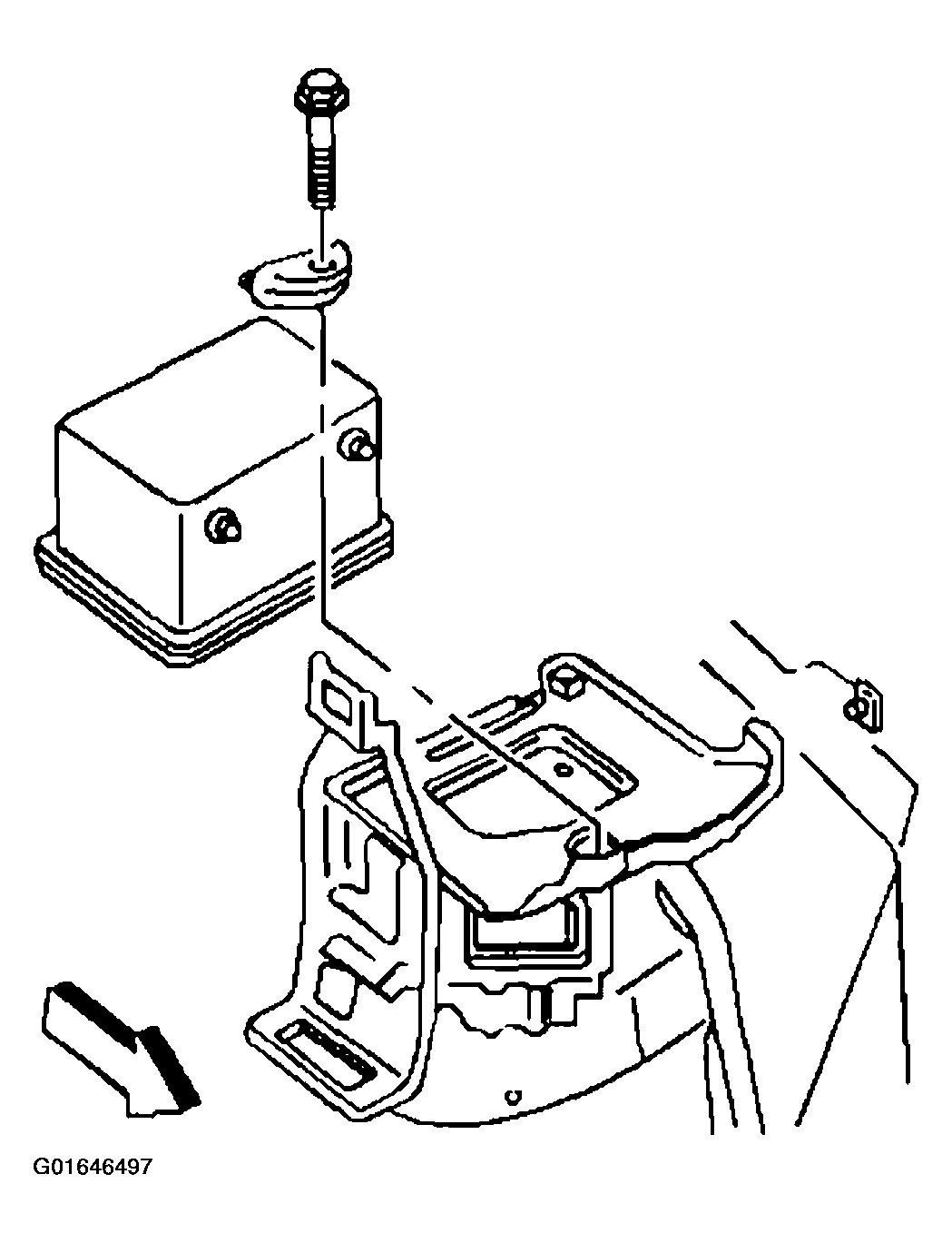

Fig 1: Installing Battery Hold-Down Retainer Bolt
G01646497Courtesy of GENERAL MOTORS CORP.
  1. Install the battery into the cleaned carrier.
  2. Install the battery hold-down retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retainer bolt.

    Tighten

    Tighten the bolt to 23 N.m (17 lb ft).

  4. Connect the battery positive cable.

    Tighten

    Tighten the cable bolt to 15 N.m (11 lb ft).

  5. Connect the battery negative cable.

    Tighten

    Tighten the cable bolt to 15 N.m (11 lb ft).
