Installation Procedure

  1. For RWD, install the battery negative cable in the same position as the original.
  2. For A4WD, install the battery negative cable in the same position as the original.

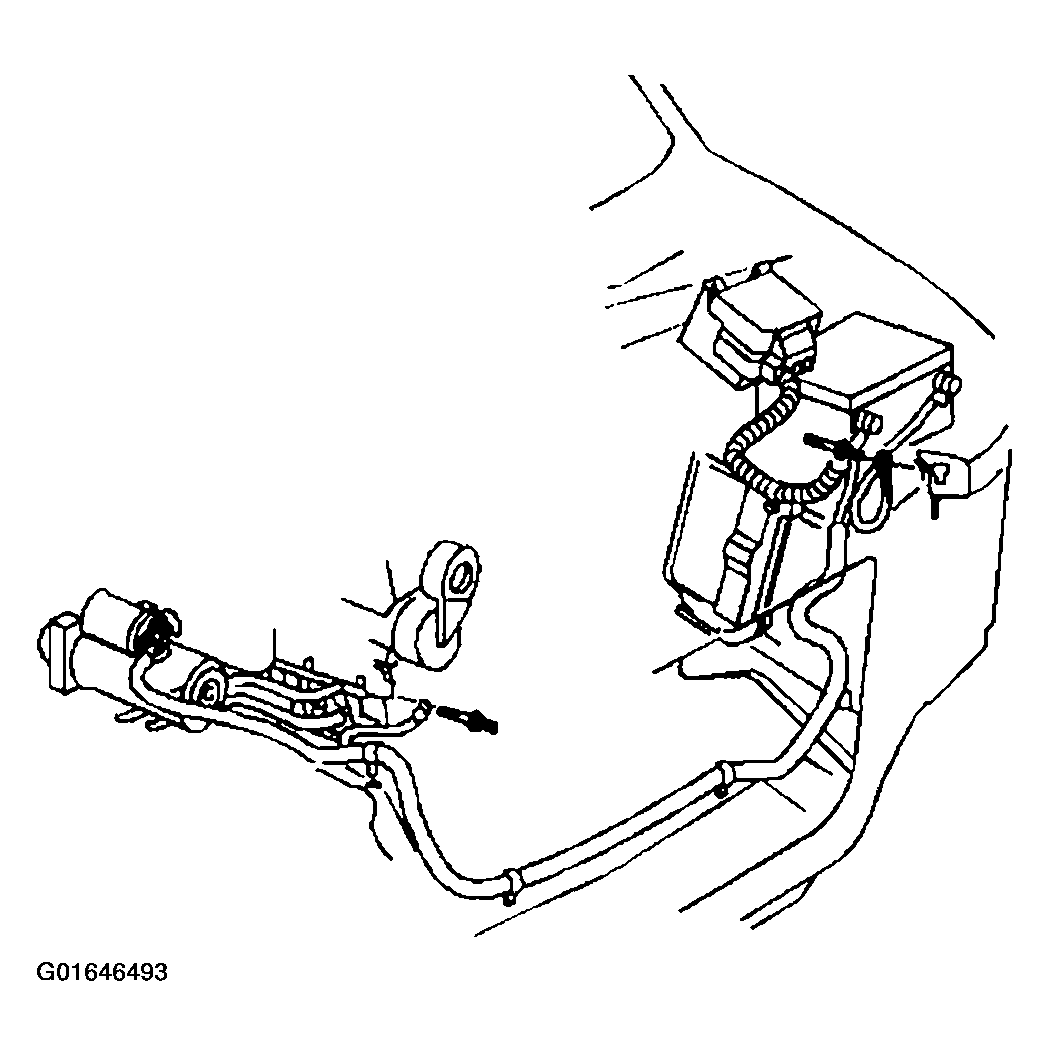

    Fig 1: Installing Battery Negative Cable
    G01646493Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Connect the battery negative cable to the engine.

    Tighten

    Tighten the nut to 40 N.m (29 lb ft).

  4. Install the engine harness to the stud.

    Tighten

    Tighten the nut to 25 N.m (18 lb ft).

  5. Connect the battery negative cable ground lead to the radiator support.

    Tighten

    Tighten the stud to 45 N.m (33 lb ft).

  6. Connect the battery negative terminal bolt to the battery.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).
