HVAC Control Assembly C3 Connector End View

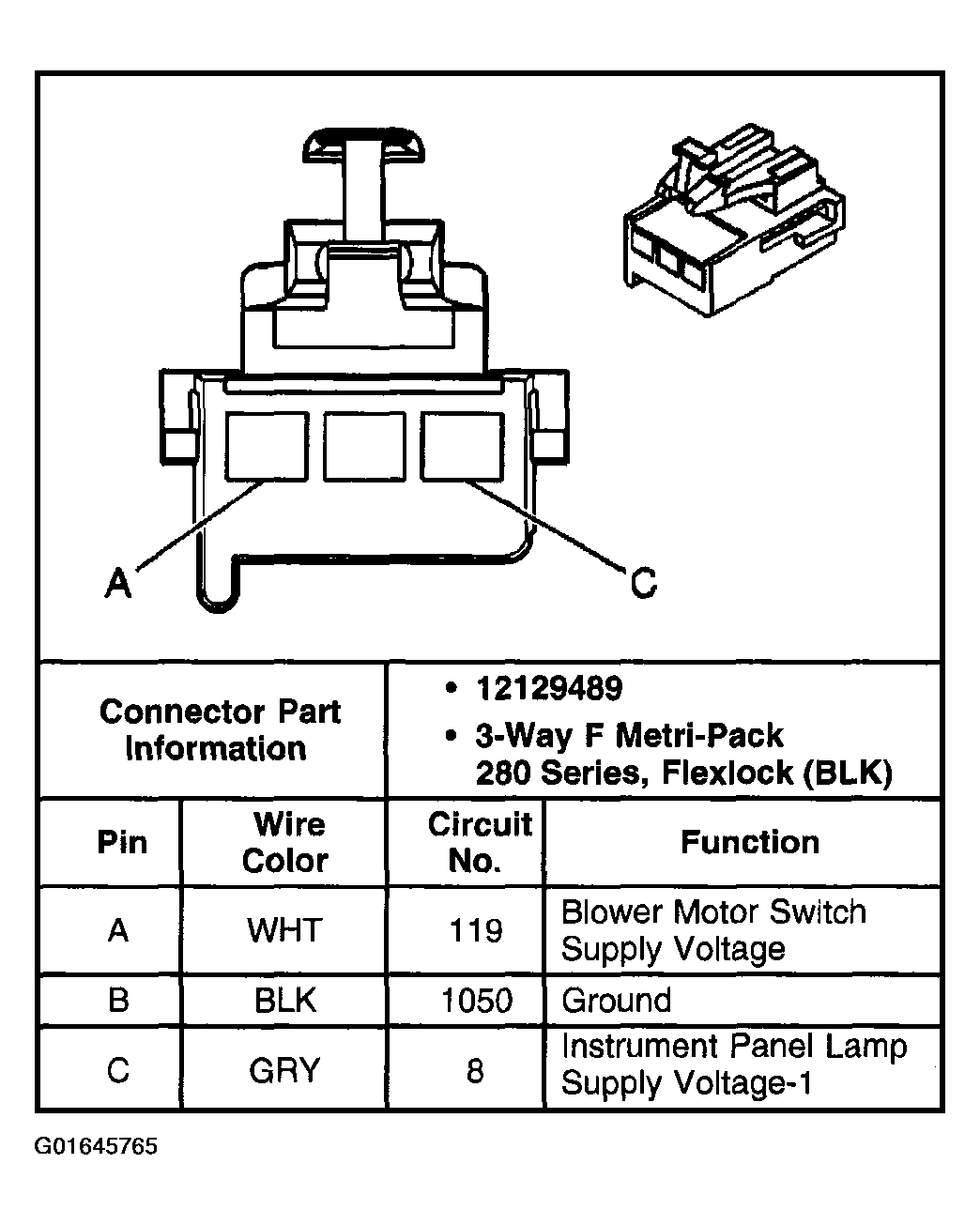

Fig 1: HVAC Control Assembly C3 Connector End View

G01645765

Courtesy of GENERAL MOTORS CORP.
