Scan Tool Output Controls

Refer to the Scan Tool Manual for complete scan tool operating instructions.

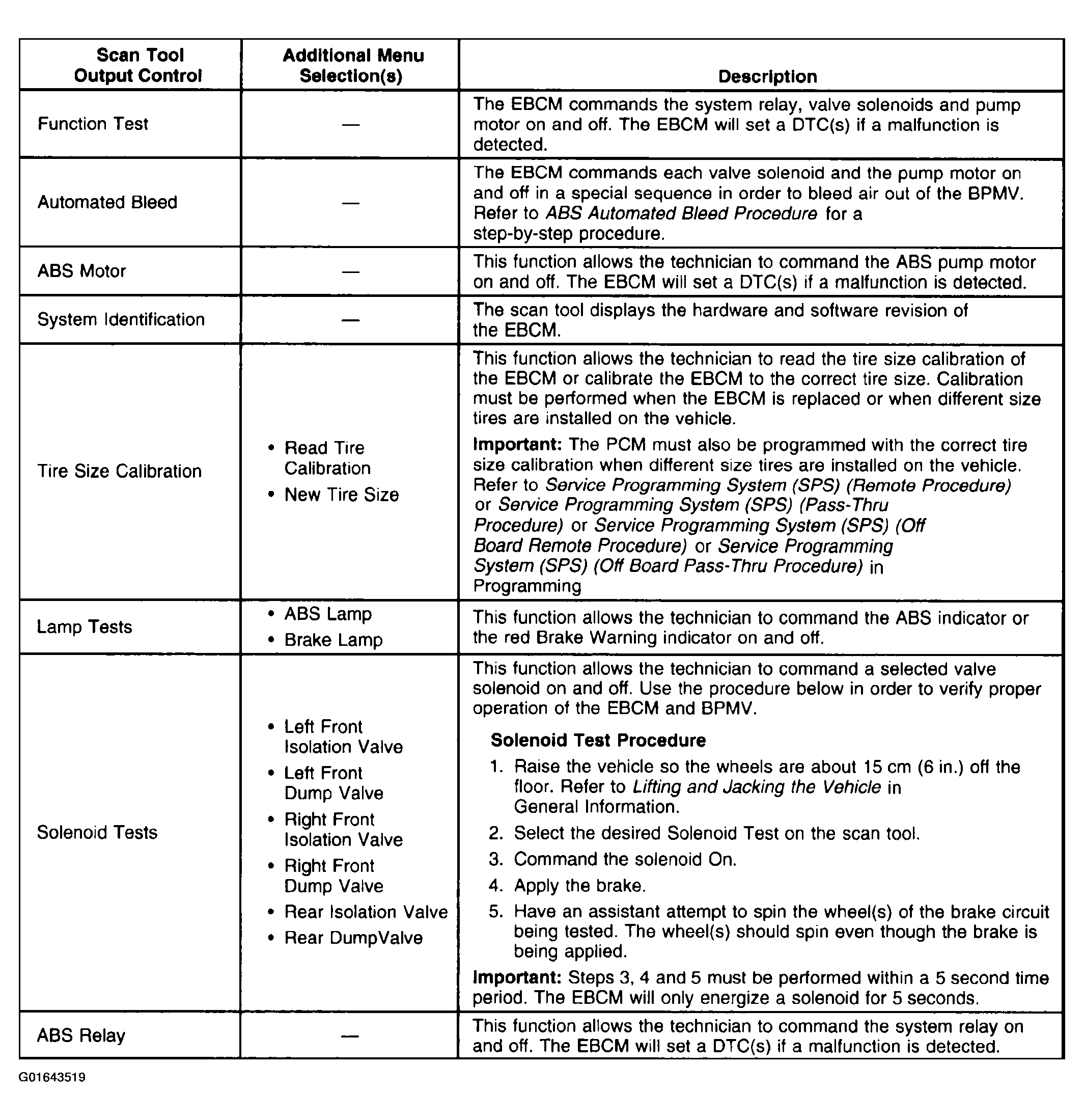

Fig 1: Scan Tool Output Controls Table
G01643519Courtesy of GENERAL MOTORS CORP.
