Removal Procedure

Important:  Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

1. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
2. Remove the antenna if necessary. Refer to FIXED ANTENNA REPLACEMENT in Entertainment.
3. Open the hood.
4. Remove the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
5. Remove the inside rearview mirror. Refer to REARVIEW MIRROR REPLACEMENT .
   CAUTION: Refer to DEFROSTER OUTLET CAUTION in Cautions and Notices.
6. Cover to protect the following parts from broken glass:
   1. 6.1. Upper dash pad
   2. 6.2. Defroster outlets and A/C outlets
   3. 6.3. Seats and carpeting
7. Remove the door sealing weatherstrip from the upper pinchweld flange.
   CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices.
8. Remove the 2 screws that retain the windshield frame filler panels.
9. Remove the frame filler panels.

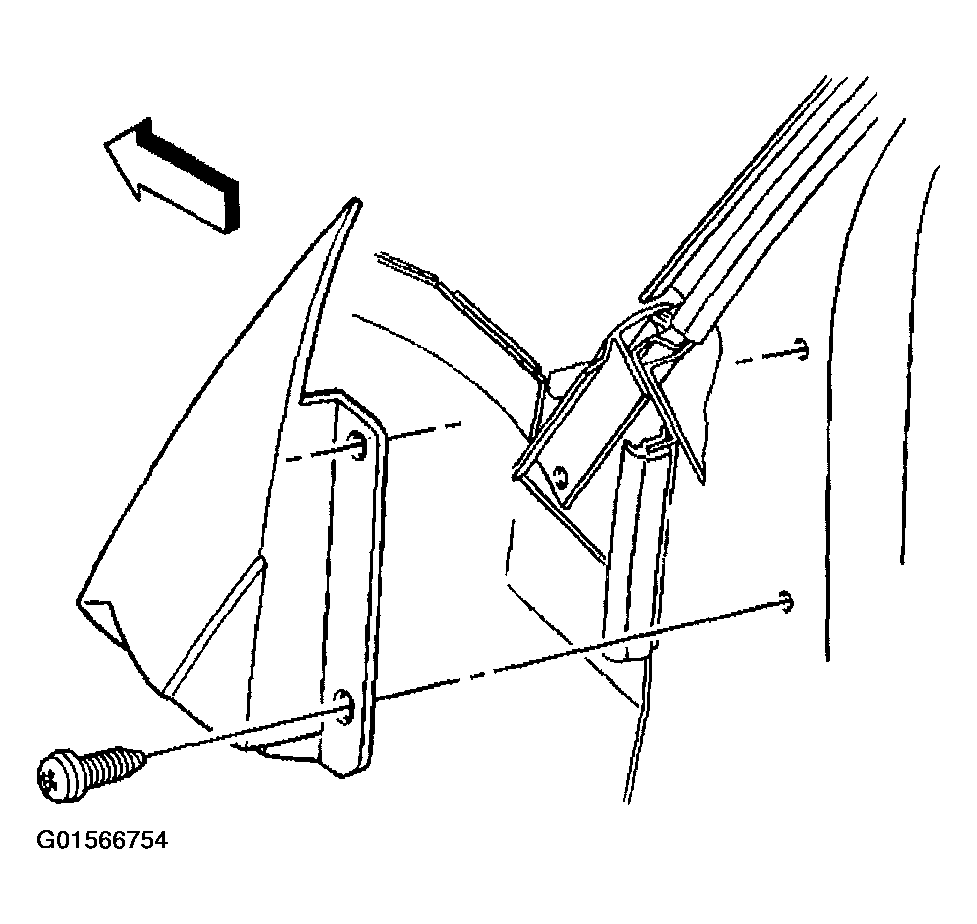

   Fig 1: Windshield Frame Filler Panels

   Courtesy of GENERAL MOTORS CORP.

   Important:  The windshield reveal molding fills the cavities between the body and windshield and can not be reused if stretched or damaged.

10. The windshield reveal molding is a one piece molding.

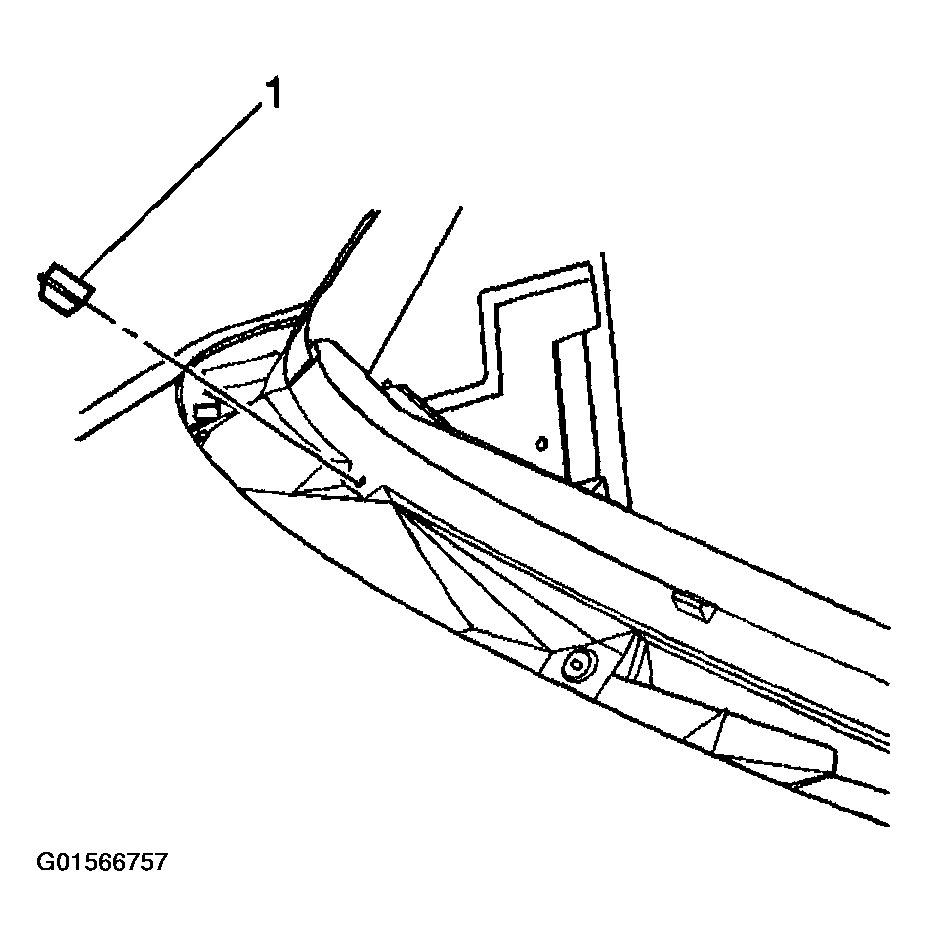

    Fig 2: Identifying Windshield Reveal Molding

    Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices.
11. Grasp the lower corner of the windshield reveal molding by hand and slowly pull the reveal molding away from the windshield.

    If the windshield reveal molding will not release, use a utility knife in order to cut around the windshield in order to remove the windshield reveal molding.

12. Remove the windshield reveal molding.

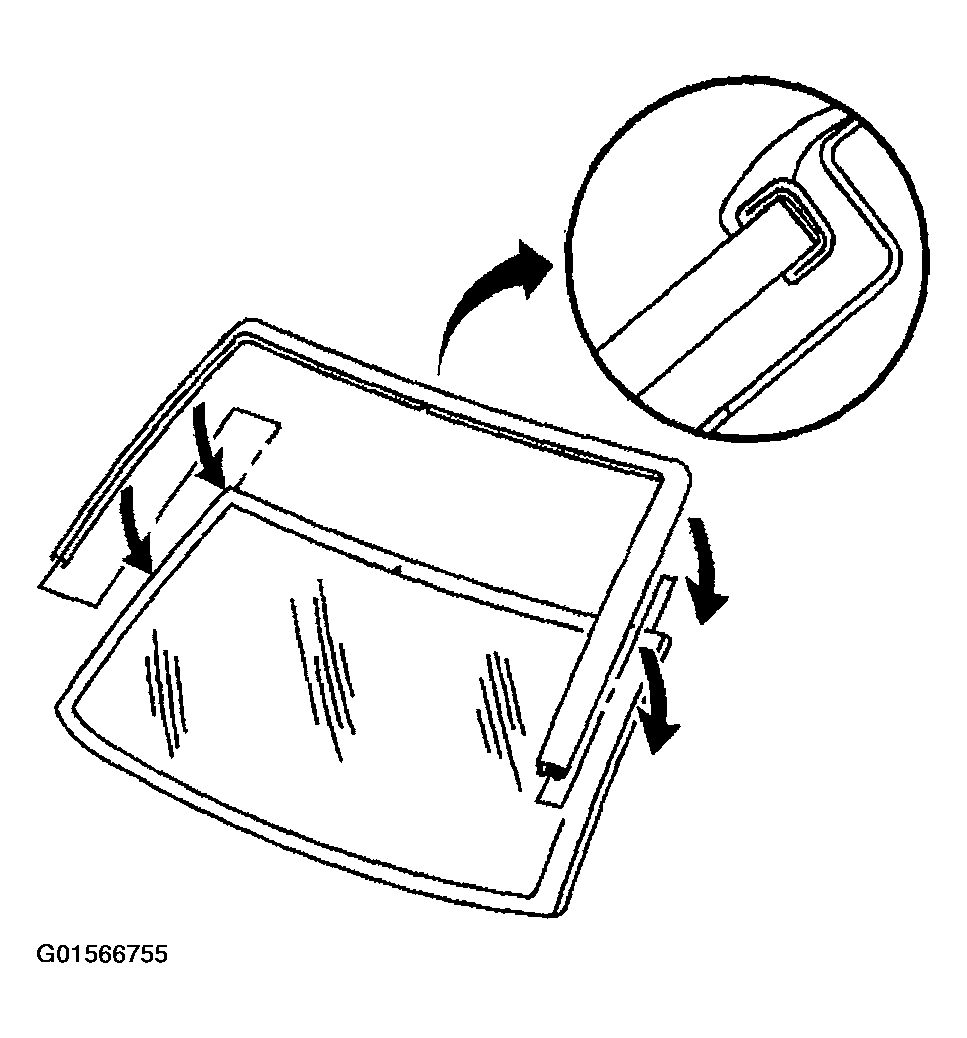

    Fig 3: Windshield Reveal Molding

    Courtesy of GENERAL MOTORS CORP.
13. Remove the lower windshield supports (1) from the cowl panel, if equipped.
    Fig 4: Removing Lower Windshield Supports From Cowl Panel

    Courtesy of GENERAL MOTORS CORP.

    Important:  Keep the cutting edge of the tool against the window.

14. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • Use J 24402-A, J 39032  or equivalent in order to remove the window.

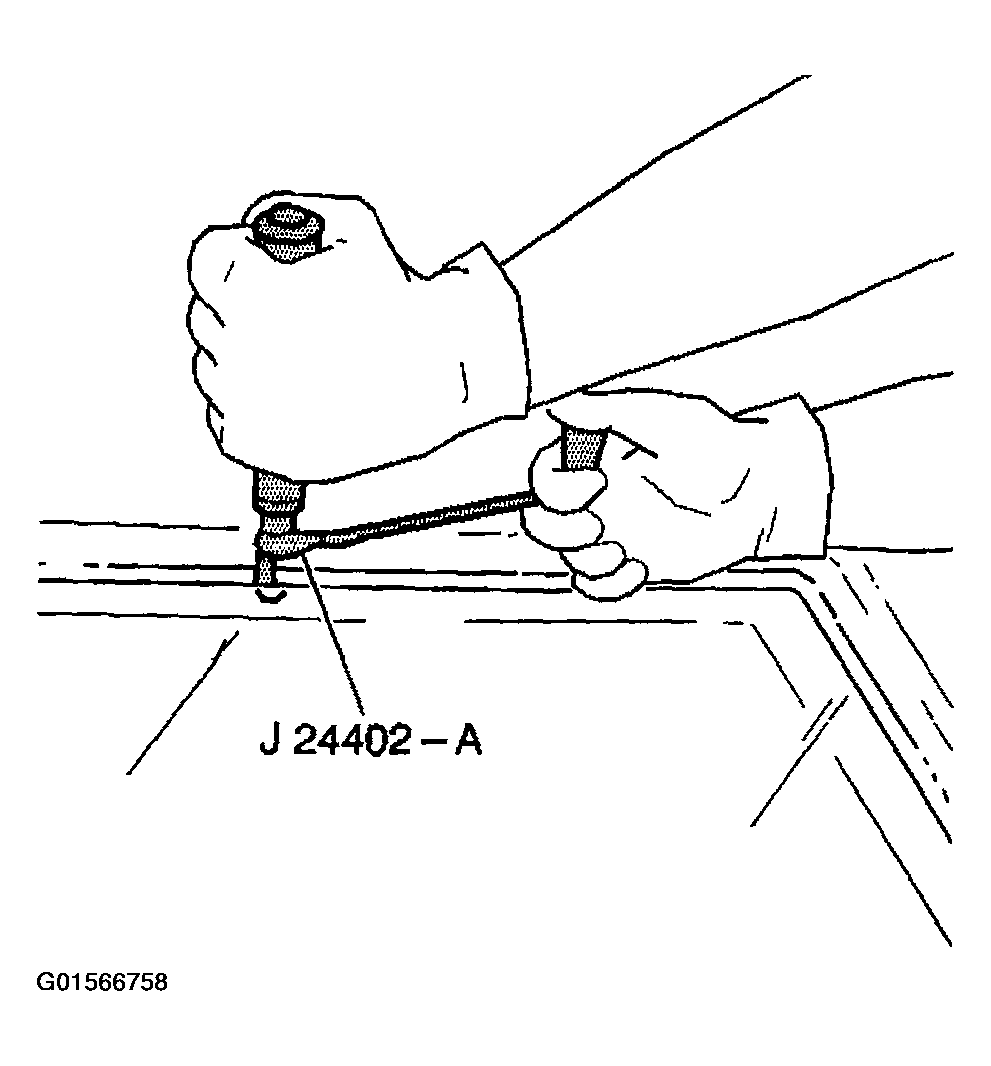

      Fig 5: Removing Window Using J 24402-A

      Courtesy of GENERAL MOTORS CORP.
15. Remove the windshield (1) from the vehicle with the aid of an assistant (2).

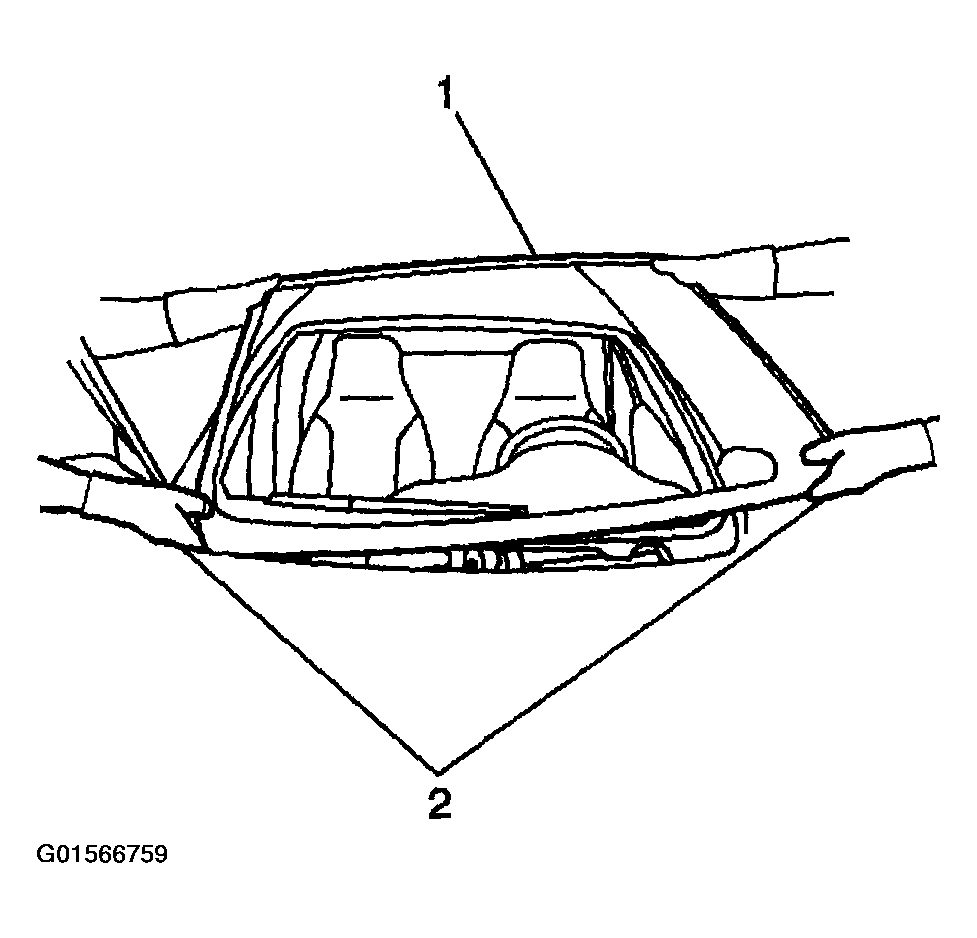

    Fig 6: Removing Windshield From Vehicle With Aid Of Assistant

    Courtesy of GENERAL MOTORS CORP.
