Removal Procedure

CAUTION: Refer to GM VEHICLES CAUTIONS & NOTICES in Cautions and Notices.
CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices.
  1. Remove the swing out window latch screws.
  2. Remove the swing out window hinge screws.

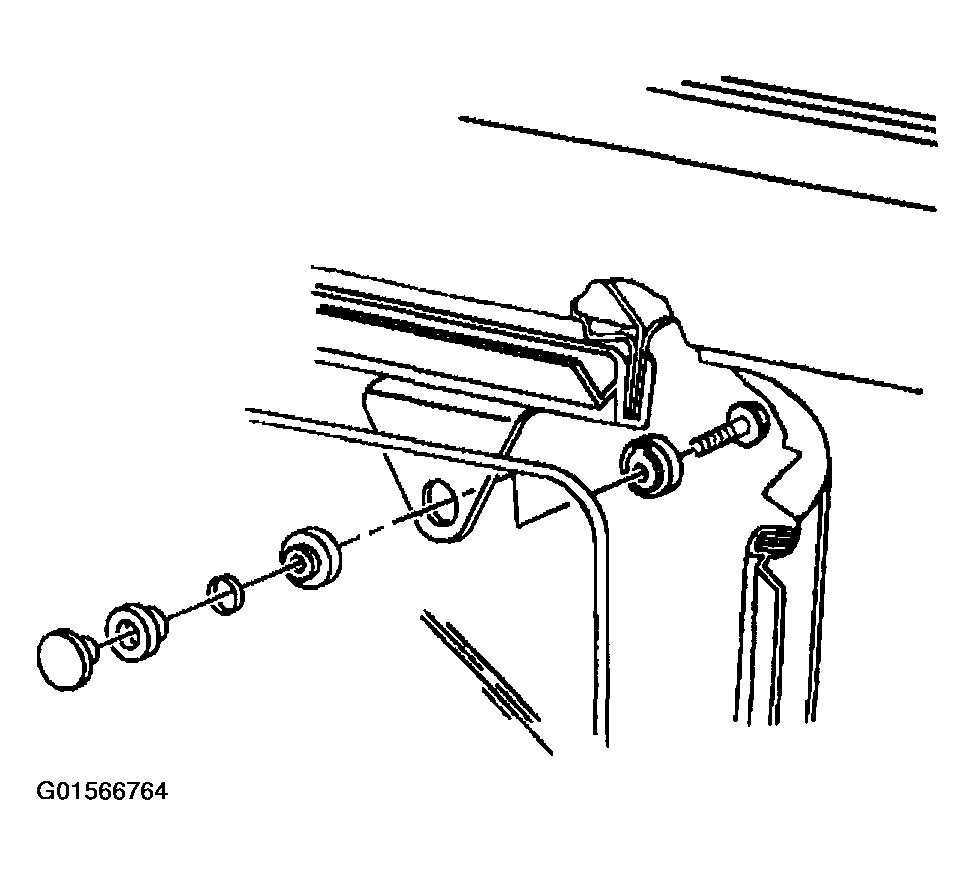

    Fig 1: Swing Out Window Hinge Screws
    G01566764Courtesy of GENERAL MOTORS CORP.
  3. Remove the retainers.
  4. Remove the bushings.
  5. Remove the nuts.
  6. Remove the swing out window from the opening with the aid of an assistant.
  7. Use J 34946  or equivalent in order to remove the pins.

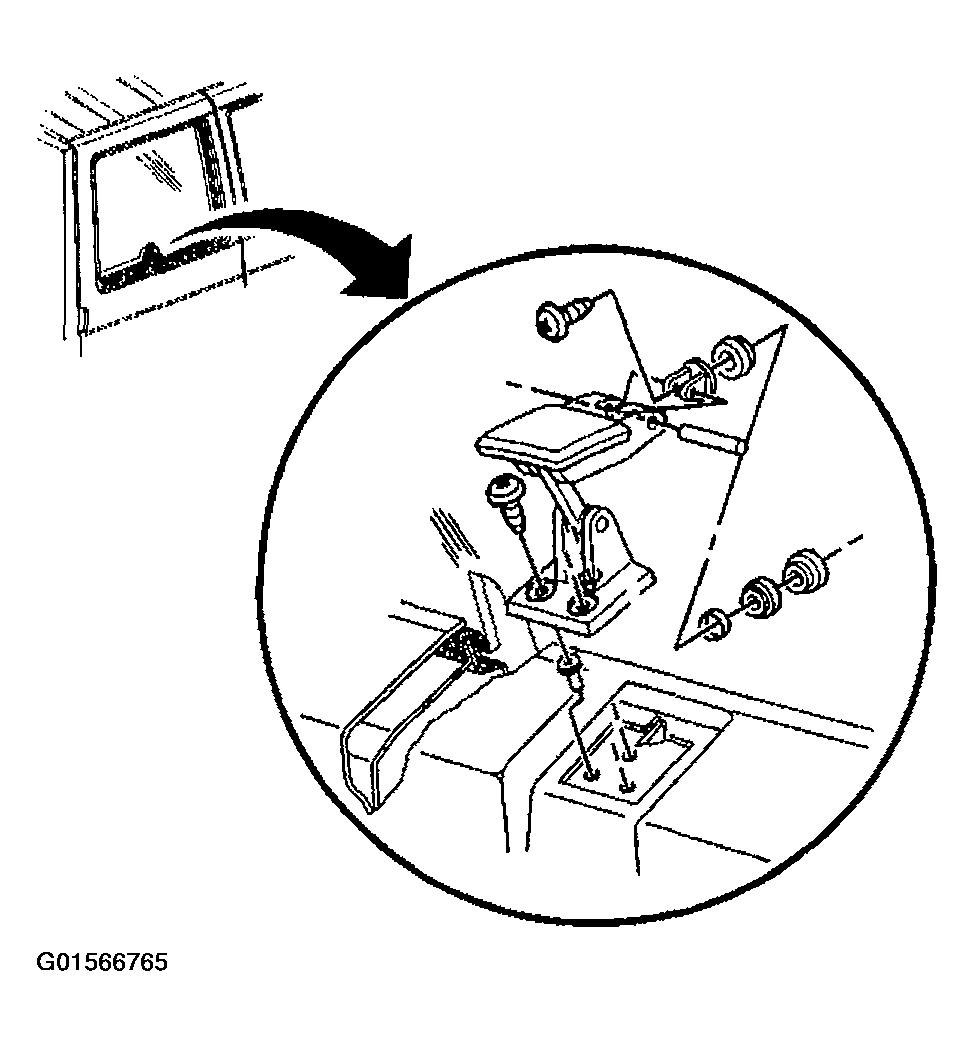

    Fig 2: Swing Out Window Pins
    G01566765Courtesy of GENERAL MOTORS CORP.
  8. Remove the swing out window latches from the window.

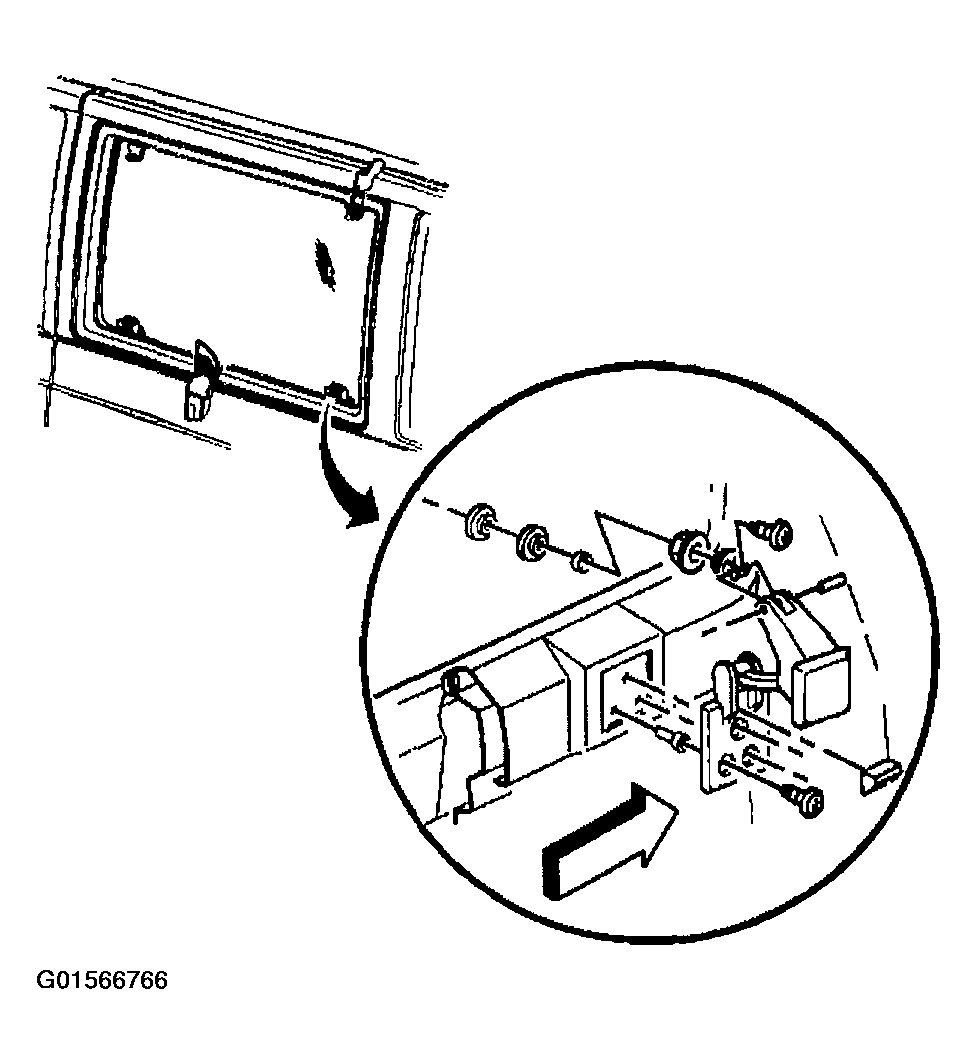

    Fig 3: Removing Swing Out Window Latches From Window
    G01566766Courtesy of GENERAL MOTORS CORP.
  9. Remove the screws from the bearings.
  10. Remove the bearings from the window.
  11. Remove the nuts from the window.
