Installation Procedure
- Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS .

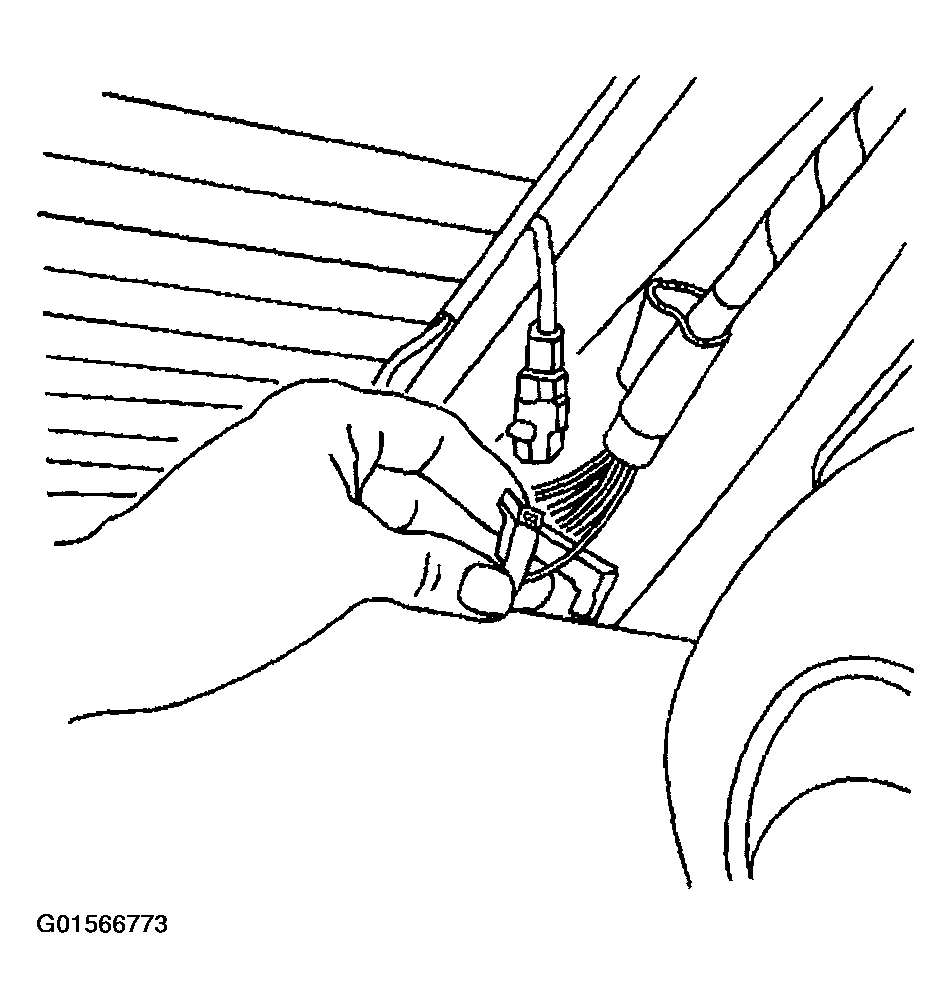

- Connect the electrical connector to the rear window defogger on the liftgate window.
Courtesy of GENERAL MOTORS CORP.
- Close liftgate window.
- Install the back window wiper arm to the liftgate. Refer to WIPER ARM REPLACEMENT - REAR
in Wipers/Washer Systems.
- Connect the washer hose to the liftgate.
- Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
