Installation Procedure

  1. Install the weatherstrip to the pinch-weld flange.
  2. Put the weatherstrip on the pinch-weld flange and push downward until fully seated.

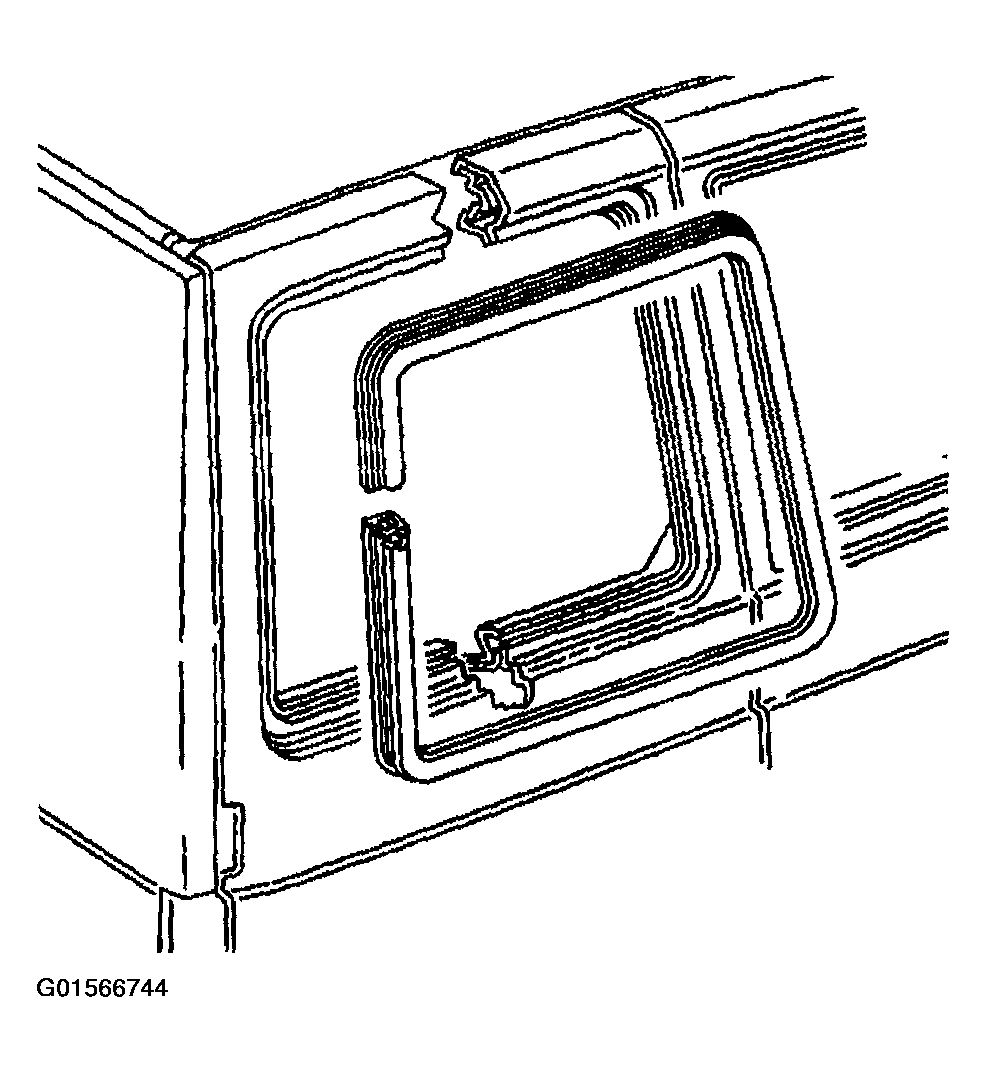

    Fig 1: Swing Out Window Weatherstrip
    G01566744Courtesy of GENERAL MOTORS CORP.
  3. Close the swing out window.
