Stationary Window System
>>
Component Locator
>>
Stationary Windows Component Views
Stationary Windows Component Views

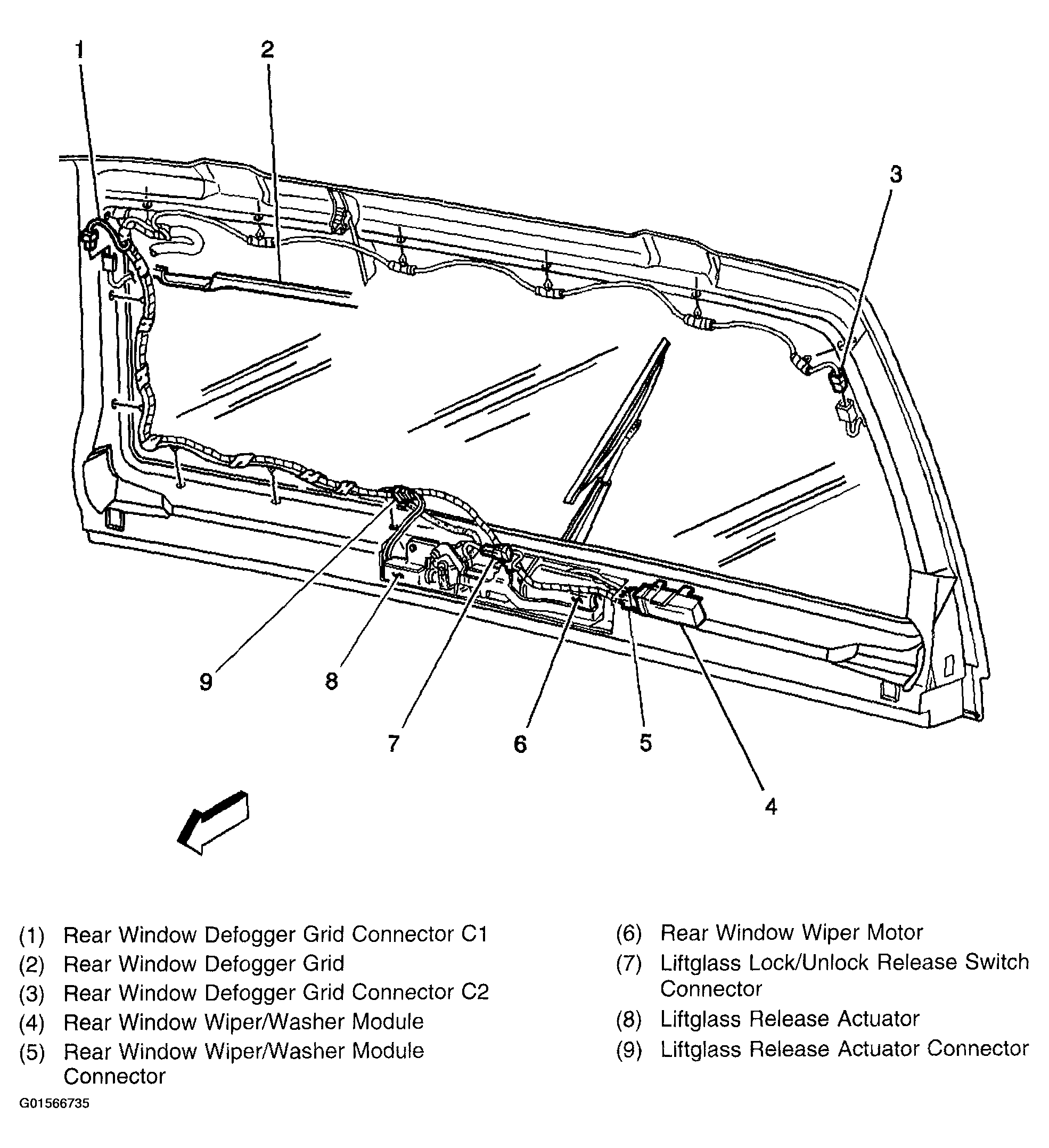

Fig 1: Liftgate Harness Location View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
