Installation Procedure

  1. Slide the clip of the channel into the upper channel in order to install the window run channel to the door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the door to window run channel bolt.

    Tighten

    Tighten the door to window run channel bolt to 9.5 N.m (84 lb in).

  3. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  4. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

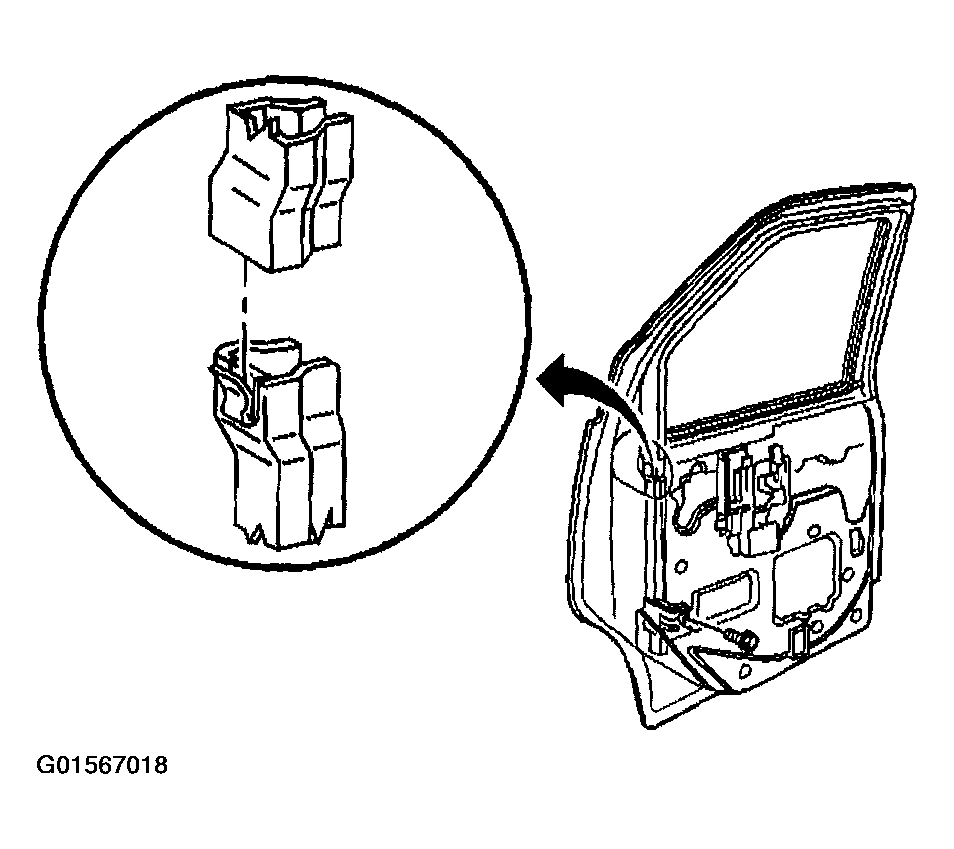

    Fig 1: Installing Window Run Channel To The Door
    G01567018Courtesy of GENERAL MOTORS CORP.
