Windshield Wiper Motor And Module Connector End View Terminals

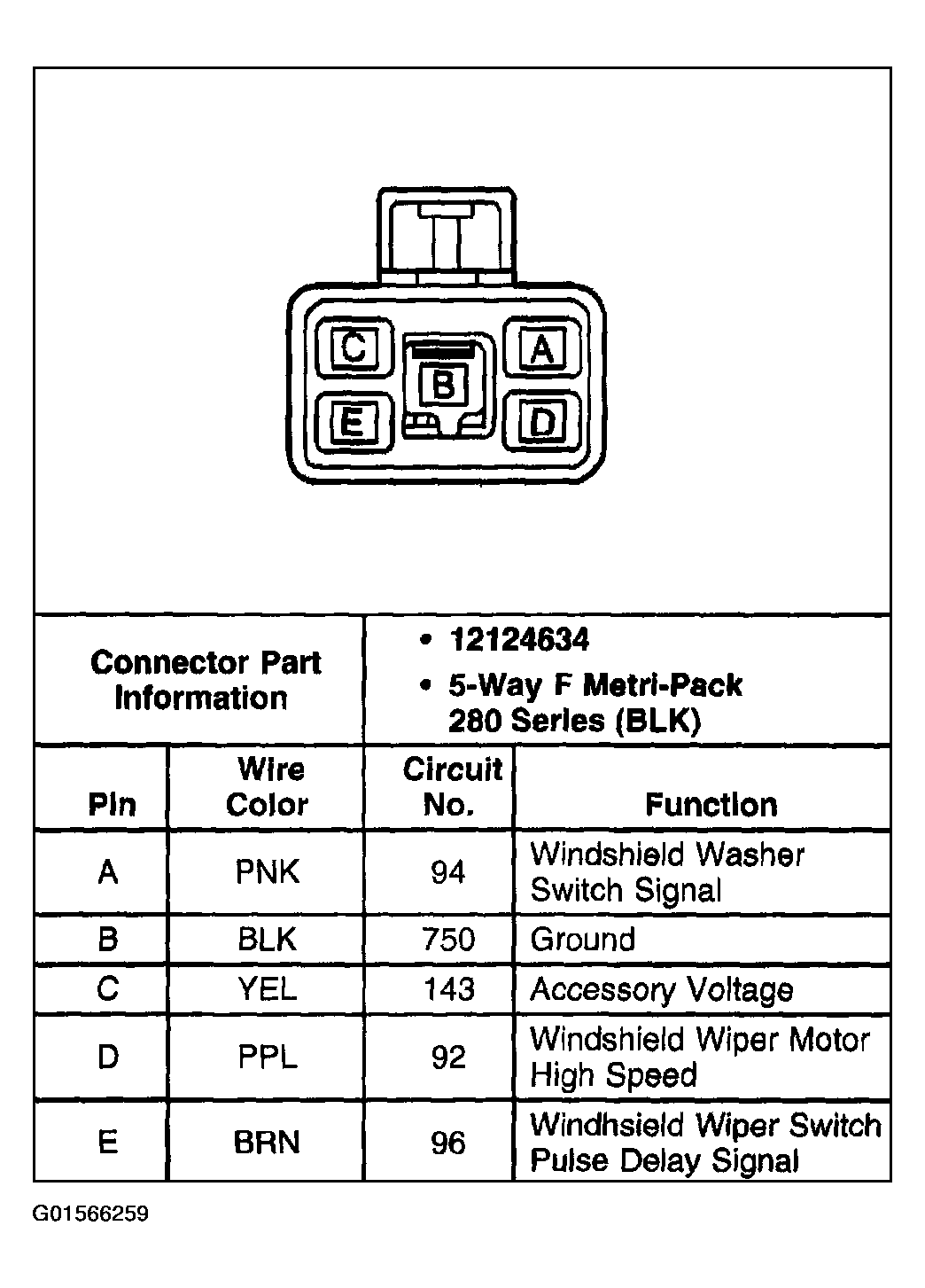

Fig 1: Windshield Wiper Motor And Module Connector End View Terminals

G01566259

Courtesy of GENERAL MOTORS CORP.
