Rear Window Wiper/Washer Module Connector End View Terminals

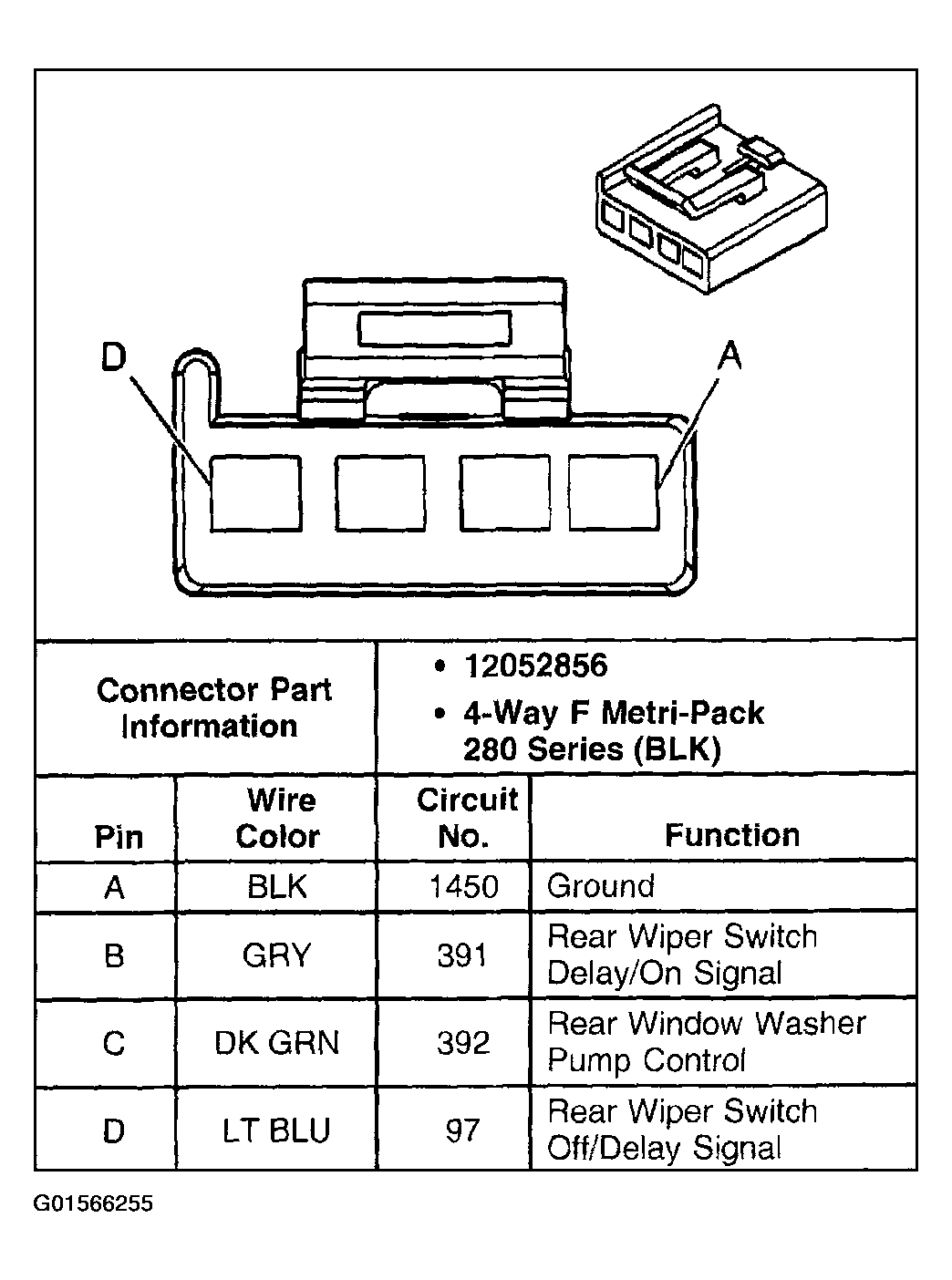

Fig 1: Rear Window Wiper/Washer Module Connector End View Terminals

G01566255

Courtesy of GENERAL MOTORS CORP.
