Installation Procedure

Important:  Do not reuse the old mounting screws (1). Always install new mounting screws with the new EBCM.

Important:  Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

1. Install EBCM (2) on to the BPMV (5).
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the new screws (1) in the EBCM (2).

   Tighten

   Tighten the screws to 5 N.m (39 lb in) in an X-pattern.

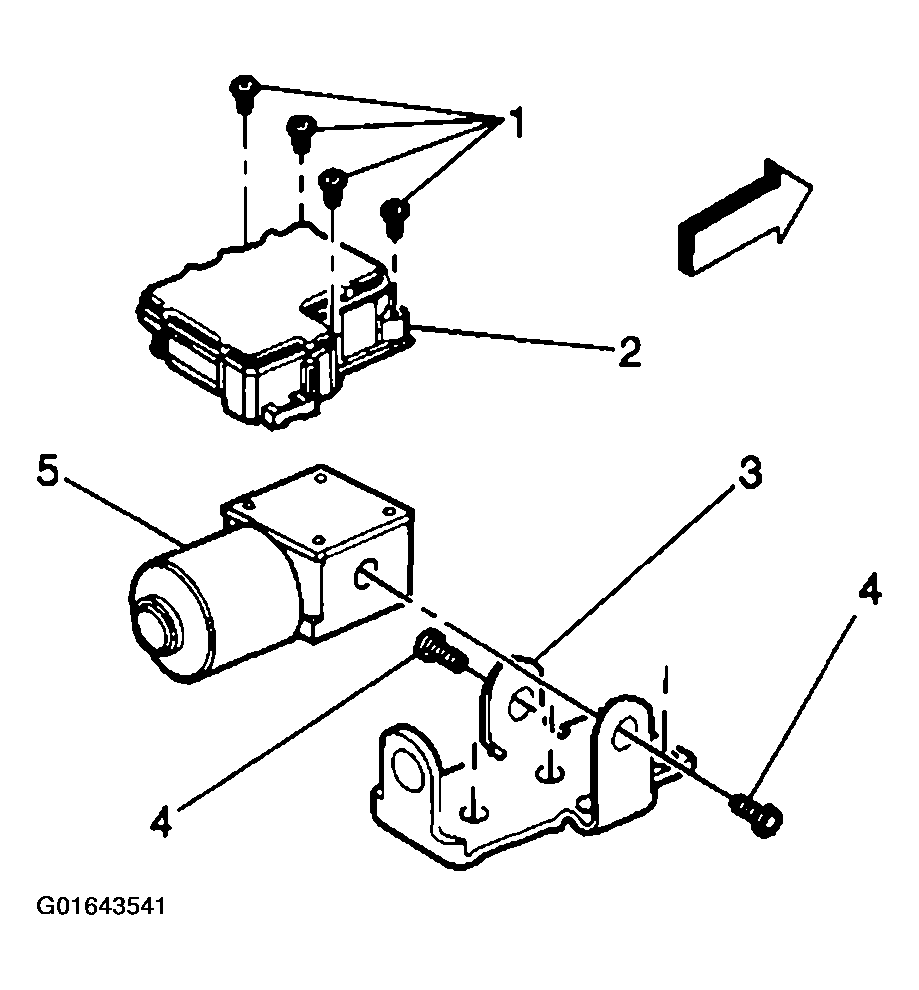

   Fig 1: Installing EBCM Onto BPMV

   Courtesy of GENERAL MOTORS CORP.
3. Connect the electrical connectors to the EBCM.
4. Secure the module (1) to the frame bracket (3) and fuel pipe shield (2) with the two nuts (4).
5. Revise the tire calibration using the Scan Tool  Tire Size Calibration function.
6. Return to DIAGNOSTIC SYSTEM CHECK - ABS .

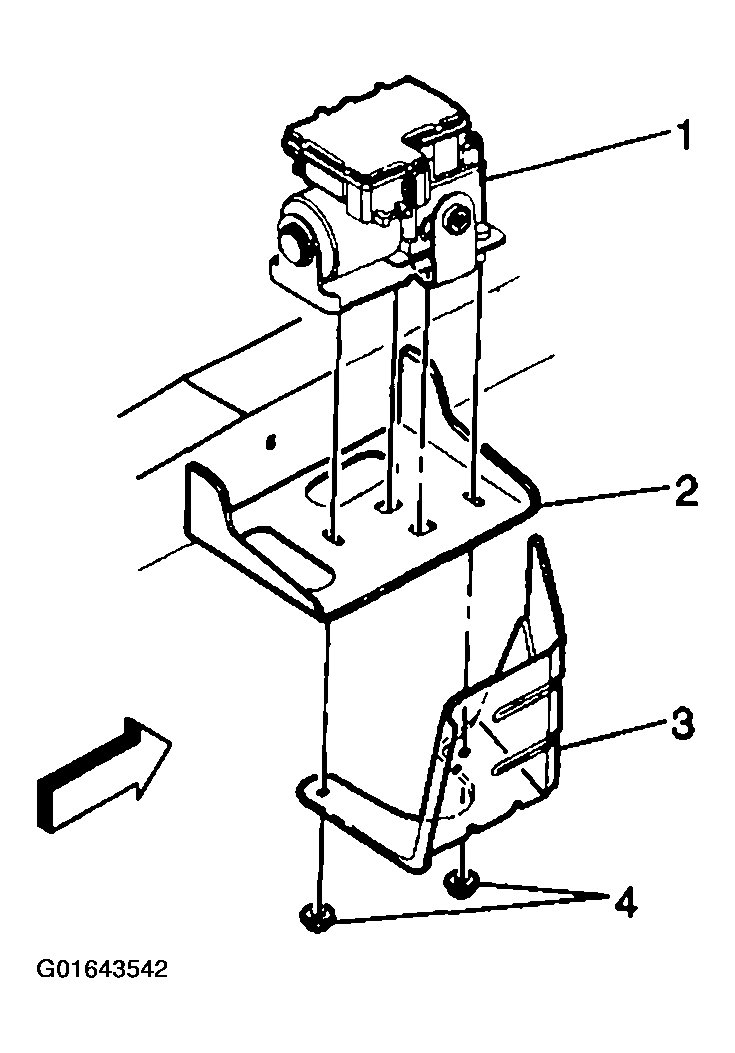

   Fig 2: Installing EBCM/BPMV To Frame Bracket

   Courtesy of GENERAL MOTORS CORP.
