Astro Van Cargo, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System
>>
Component Locator
>>
Body Control System Component Views
Body Control System Component Views

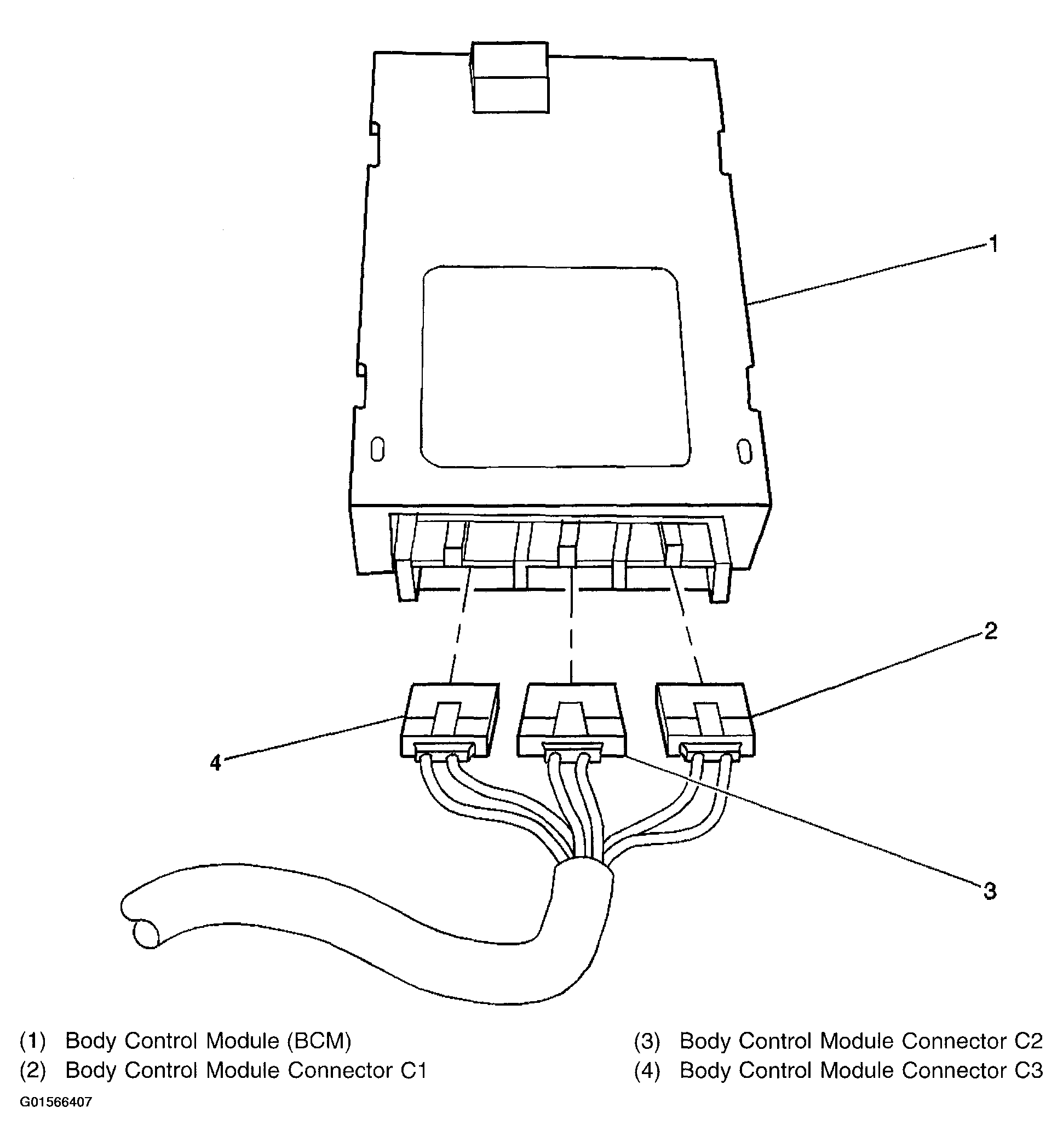

Fig 1: Body Control Module Connectors
Courtesy of GENERAL MOTORS CORP.

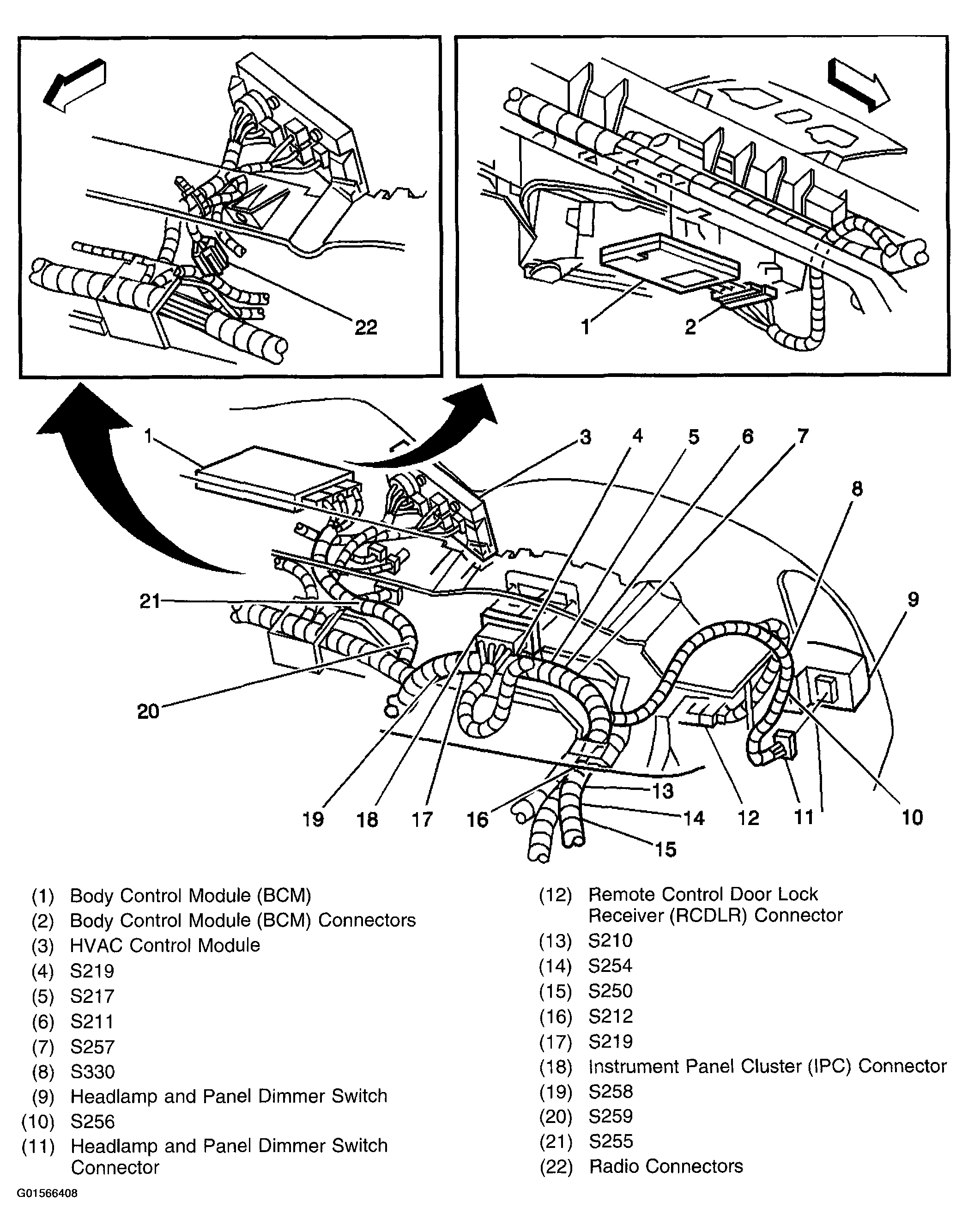

Fig 2: Instrument Cluster Wiring
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
